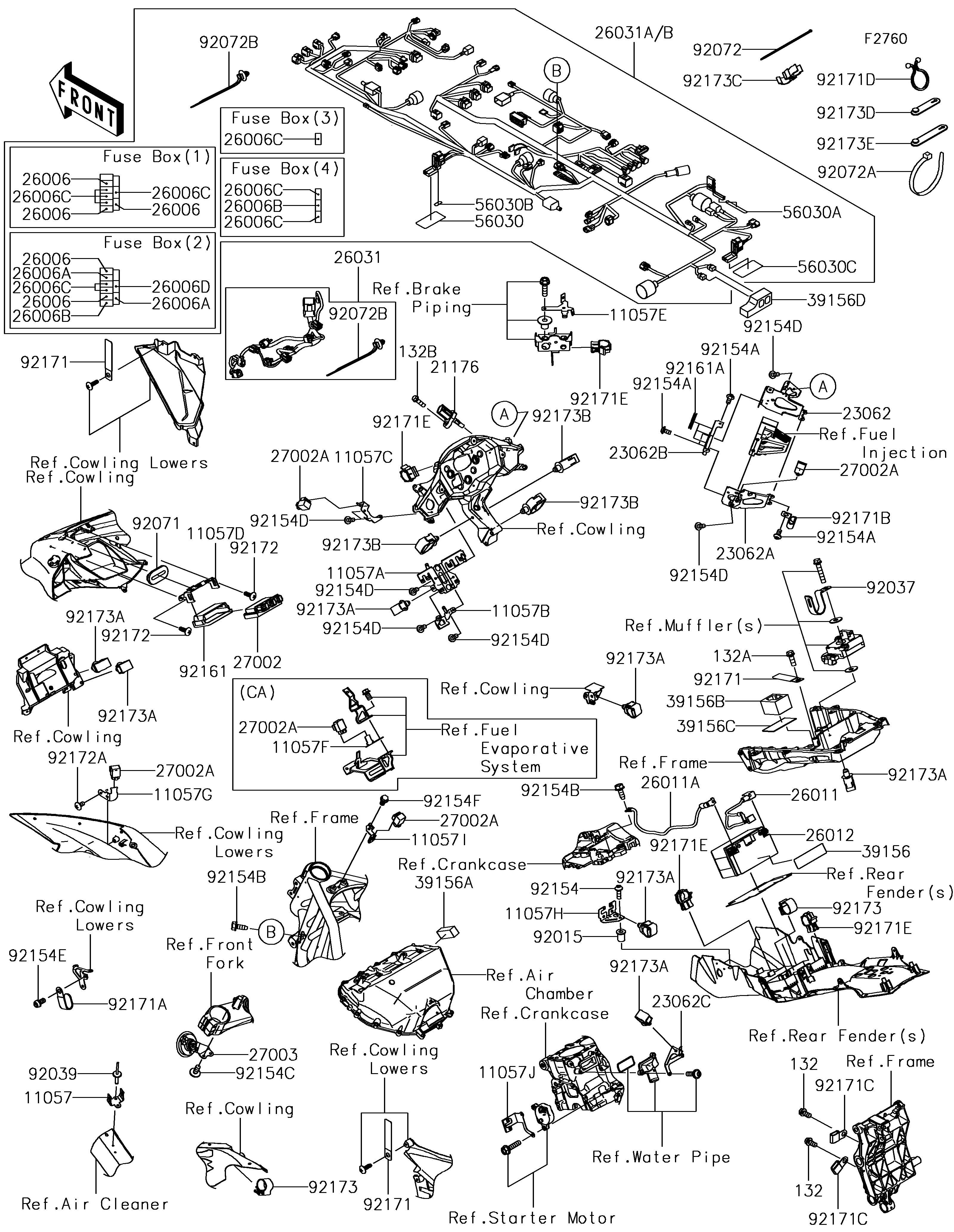

2018 NINJA H2™ SX - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
11057B
11057B
11057C
11057C
11057D
11057D
11057E
11057E
11057F
11057F
11057G
11057G
11057H
11057H
11057I
11057I
11057J
11057J
21176
21176
23062
23062
23062A
23062A
23062B
23062B
23062C
23062C
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006D
26006D
26011
26011
26011A
26011A
26012
26012
26031
26031
26031A
26031A
26031B
26031B
27002
27002
27002A
27002A
27002A
27002A
27002A
27002A
27002A
27002A
27002A
27002A
27003
27003
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
56030
56030
56030A
56030A
56030B
56030B
56030C
56030C
92015
92015
92037
92037
92039
92039
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92072B
92072B
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154E
92154E
92154F
92154F
92161
92161
92161A
92161A
92171
92171
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171C
92171C
92171D
92171D
92171E
92171E
92171E
92171E
92171E
92171E
92171E
92171E
92172
92172
92172
92172
92172A
92172A
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173B
92173B
92173B
92173B
92173B
92173B
92173C
92173C
92173D
92173D
92173E
92173E
132
132
132
132
132A
132A
132B
132B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,GRIP HEATER 11057 11057-1280 1
BRACKET,GYRO SENSOR 11057A 11057-1281 1
BRACKET,CONNECTOR 11057B 11057-1282 1
BRACKET,FUSE BOX 11057C 11057-1283 1
BRACKET,RELAY BOX 11057D 11057-1284 1
BRACKET,SUB HARNESS CONNECTOR 11057E 11057-1476 1
BRACKET,RELAY 11057F 11057-1477 1 CA
BRACKET,SUB RELAY 11057G 11057-1478 1
BRACKET,RR FENDER 11057H 11057-1481 1
BRACKET,RELAY 11057I 11057-1636 1 CN,US
BRACKET,STARTER 11057J 11057-1655 1
SENSOR,AIR TEMPERATURE 21176 21176-0048 1
BRACKET-COMP,ECU,OUTER 23062 23062-0973 1
BRACKET-COMP,ECU,INNER 23062A 23062-0974 1
BRACKET-COMP,ECU,COVER 23062B 23062-0994 1
BRACKET-COMP,WATER PIPE 23062C 23062-1154 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,7.5A,BROWN 26006B 26006-0055 2
FUSE,MINI BLADE,10A,RED 26006C 26006-1078 9
FUSE,MINI BLADE,30A,GREEN 26006D 26006-1080 1
WIRE-LEAD,BATTERY(+) 26011 26011-0983 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1856 1
BATTERY,YTZ10S,12V 8.6AH 26012 26012-0564 1
HARNESS,SUB 26031 26031-2370 1
HARNESS,MAIN 26031A 26031-2491 1 CN,US
HARNESS,MAIN 26031B 26031-2492 1 CA
RELAY-ASSY,BOX 27002 27002-0025 1
RELAY-ASSY 27002A 27002-1062 4
HORN 27003 27003-0138 1
PAD,30X115X0.36 39156 39156-1895 1
PAD,25X65X20 39156A 39156-1945 1
PAD 39156B 39156-2314 1
PAD,40X90X2 39156C 39156-2339 1
PAD,DIAG,40X30X96 39156D 39156-2400 1
LABEL,FUSE BOX1 56030 56030-1376 1
LABEL,FUSE BOX4 56030A 56030-1377 1
LABEL,FUSE BOX3 56030B 56030-1378 1
LABEL,FUSE BOX2 56030C 56030-1408 1
NUT,WELL,5MM 92015 92015-1757 1
CLAMP,CABLE,STEEL SHEET 92037 92037-2014 1
RIVET 92039 92039-0039 2
GROMMET 92071 92071-0013 1
BAND,202X3.6 92072 92072-0782 6
BAND,L=365 92072A 92072-1197 1
BAND,OS170-FT7(BLACK) 92072B 92072-1414 AR
BOLT,SOCKET,5X16 92154 92154-0209 1
BOLT,SOCKET,5X10 92154A 92154-0211 5
BOLT,FLANGED,6X16 92154B 92154-0551 2
BOLT,SOCKET,6X14 92154C 92154-0745 2
BOLT,SOCKET,5X12 92154D 92154-0917 8
BOLT,SOCKET,6X12 92154E 92154-1453 1
BOLT,FLANGED,6X10 92154F 92154-2819 1 CN,US
DAMPER,RELAY BOX 92161 92161-0203 1
DAMPER,ECU 92161A 92161-2071 3
CLAMP,L=60 92171 92171-0652 3
CLAMP 92171A 92171-0739 1
CLAMP 92171B 92171-0766 1
CLAMP 92171C 92171-0813 2
CLAMP 92171D 92171-1185 2
CLAMP,EDGE CLIP 92171E 92171-1722 4
SCREW,TAPPING,5X16 92172 92172-0238 2
SCREW,TAPPING,5X10 92172A 92172-0335 2
CLAMP,CLIP 92173 92173-0127 2
CLAMP,12MM DIA. 92173A 92173-0736 7
CLAMP 92173B 92173-0861 3
CLAMP,PIPE 92173C 92173-0985 1
CLAMP,RUBBER PLATE 92173D 92173-1229 1
CLAMP 92173E 92173-1526 3
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 1
BOLT-FLANGED-SMALL 132B 132BB0516 1
