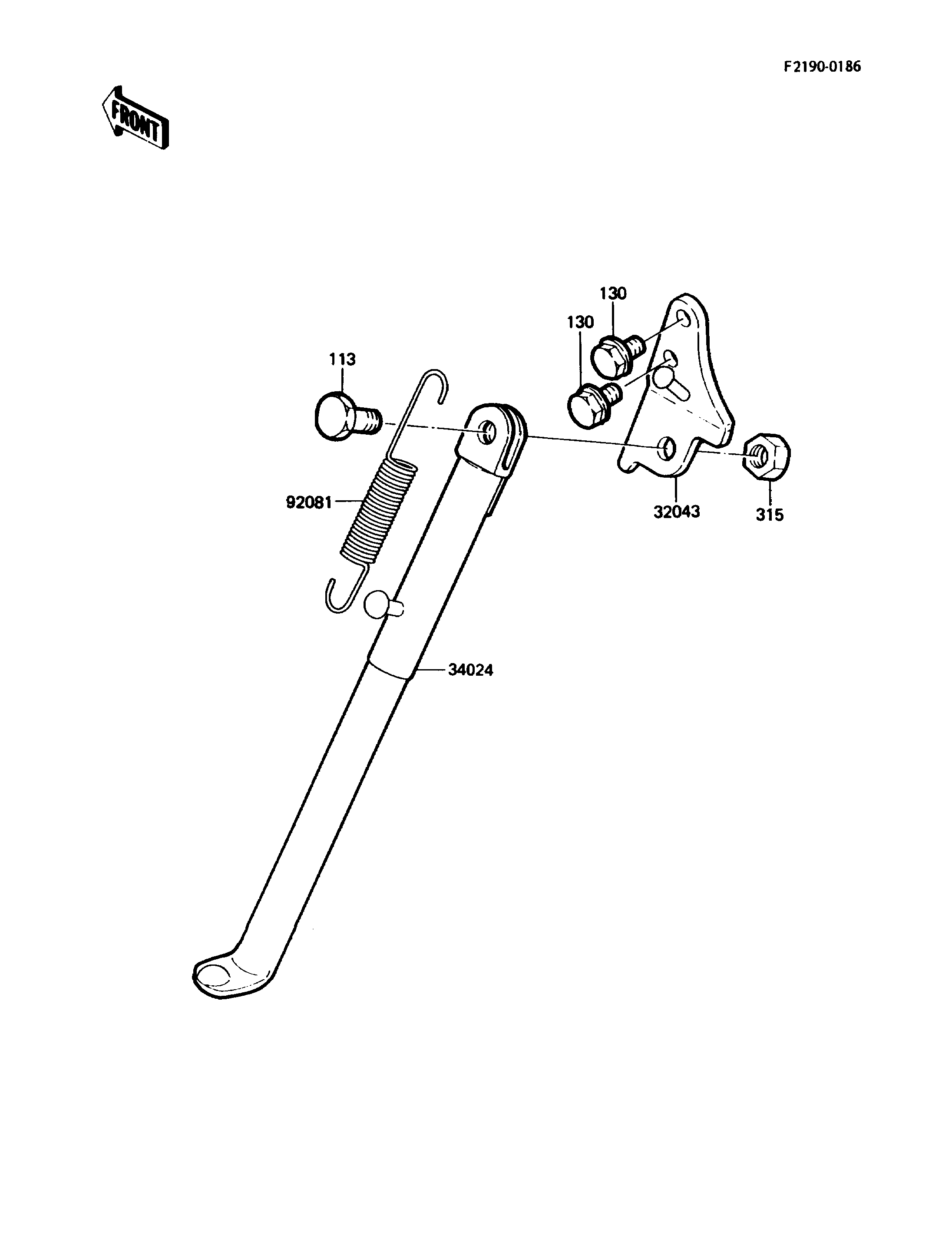

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1318 1
STAND-SIDE 34024 34024-1242 1
SPRING,STAND 92081 34025-005 1
BOLT-SMALL-FINE,10X25 113 113B1025 1
BOLT-FLANGED,8X12 130 130G0812 2
NUT-HEX-FINE,10MM 315 315B1000 1
