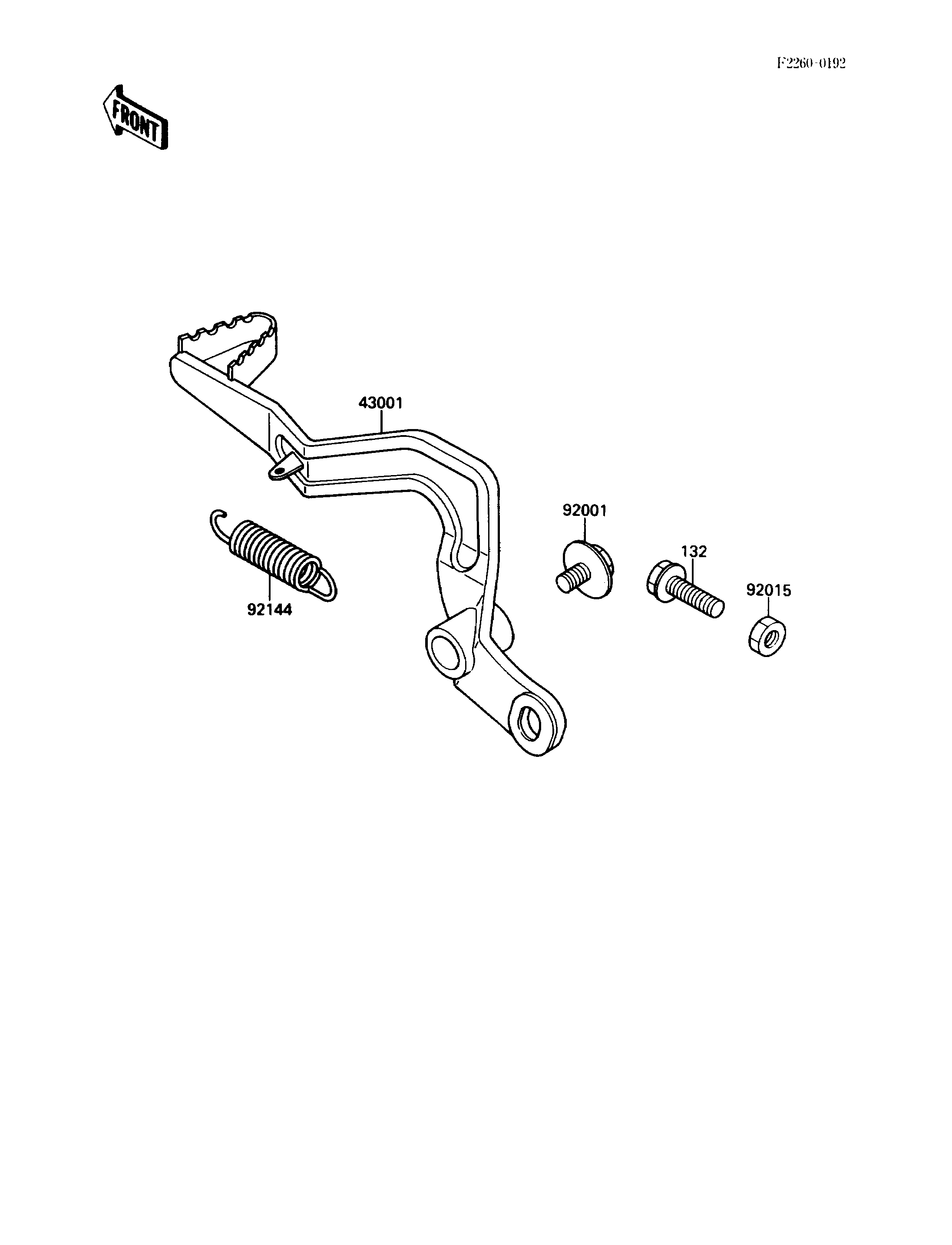

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1232 1
BOLT,FLANGED,6X10 92001 92001-1034 1
NUT,6MM 92015 92015-1391 1
SPRING,BRAKE PEDAL RETURN 92144 92144-1047 1
BOLT-FLANGED-SMALL 132 132G0620 1
