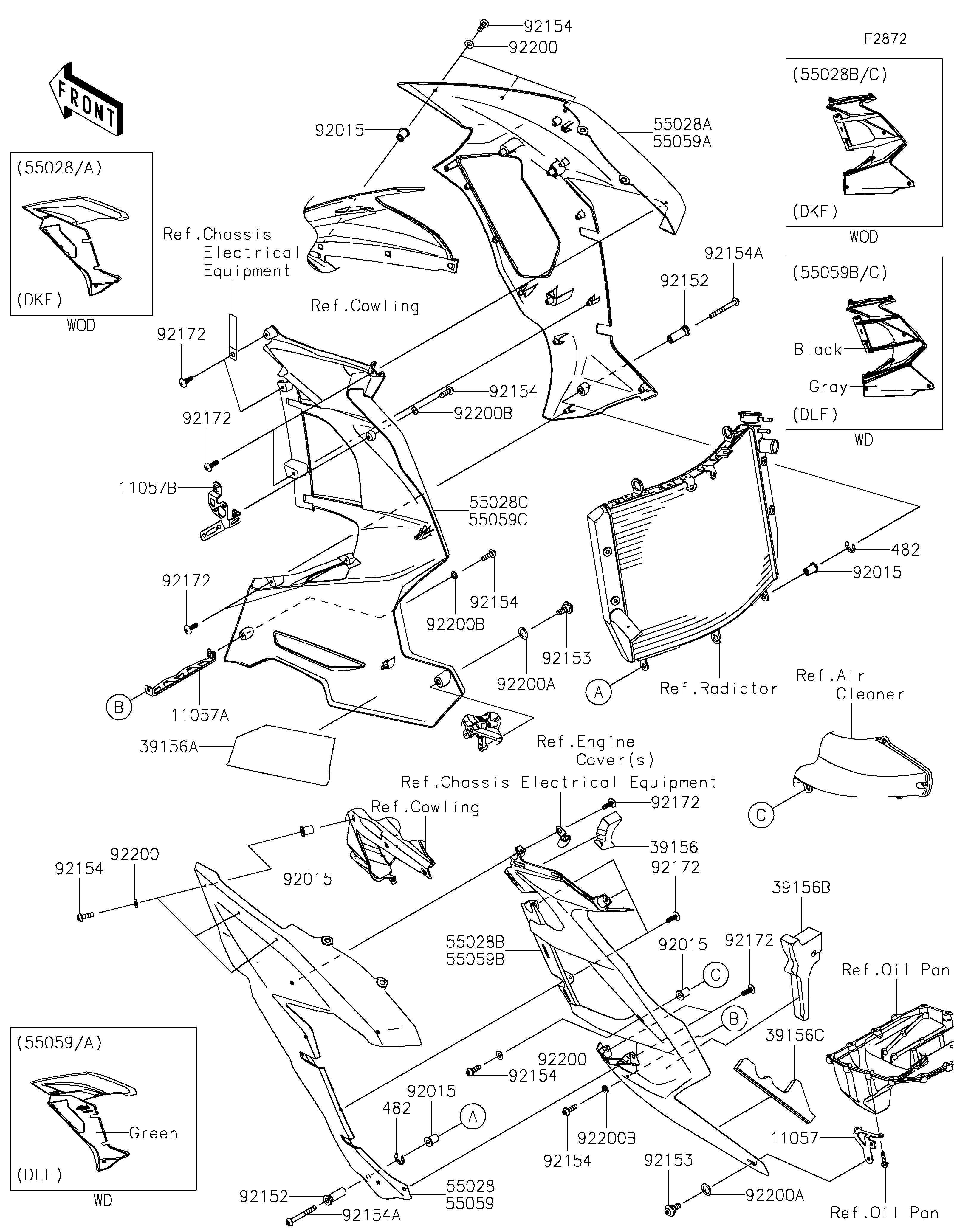

2019 NINJA H2™ SX SE+ - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
39156
39156A
39156B
39156C
55028
55028A
55028B
55028C
92015
92015
92015
92015
92015
92152
92152
92153
92153
92154
92154
92154
92154
92154
92154
92154A
92154A
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200A
92200A
92200B
92200B
92200B
482
482
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR COWL.,RR 11057 11057-1286 1
BRACKET,CONNECTING,LWR 11057A 11057-1287 1
BRACKET,SIDE COWL.,W/ABS PIPE 11057B 11057-1297 1
PAD,DUCT 39156 39156-2255 1
PAD,ADIABATIC,92X231X0.3 39156A 39156-2334 1
PAD,GENERATOR COVER 39156B 39156-2377 1
PAD,30X60X30 39156C 39156-2385 1
COWLING,SIDE,FR,LH,M.D.BLK+GRY 55028 55028-0649-62Y 1
COWLING,SIDE,FR,RH,M.D.BLK+GRY 55028A 55028-0650-62Y 1
COWLING,SIDE,RR,LH,M.G.GRY+GRN 55028B 55028-0651-62Z 1
COWLING,SIDE,RR,RH,M.G.GRY+GRN 55028C 55028-0652-62Z 1
NUT,WELL,5MM 92015 92015-1757 9
COLLAR,5.2X9.5X30 92152 92152-2448 2
BOLT,SOCKET,6MM 92153 92153-0489 2
BOLT,SOCKET,5X16 92154 92154-0209 10
BOLT,SOCKET,5X45 92154A 92154-2934 2
SCREW,TAPPING,5X16 92172 92172-0238 12
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 7
WASHER,10.4X15.9X0.5 92200A 92200-0157 2
WASHER,5.2X10X1.0 92200B 92200-1820 3
CIRCLIP-TYPE-E,8MM 482 482EA8000 2
