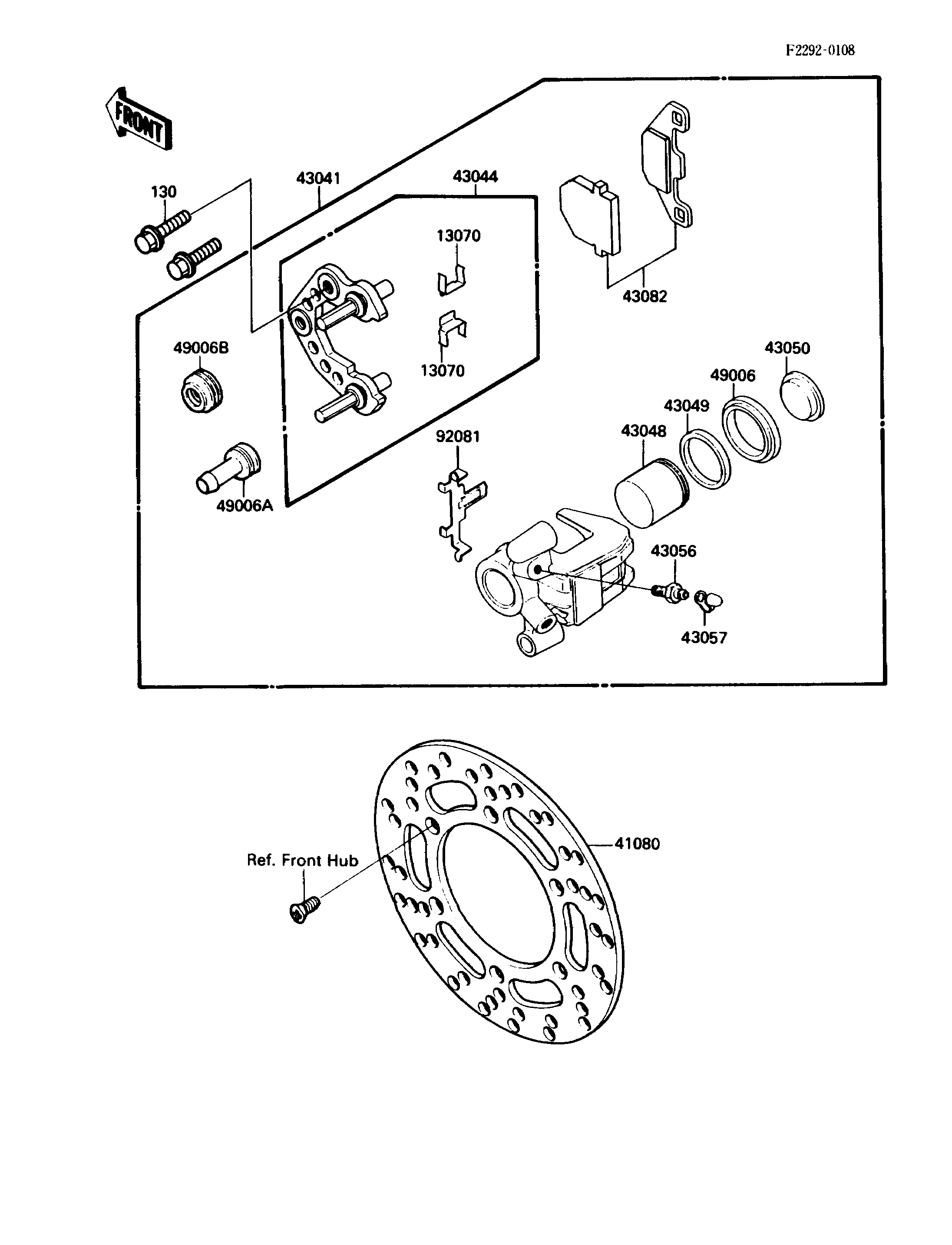

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,PAD STOPPER 13070 13070-1183 2
DISC,FR 41080 41080-1202 1
CALIPER-ASSY,FR 43041 43041-1241 1
HOLDER-COMP-CALIPER,FR 43044 43044-1051 1
PISTON-CALIPER 43048 43048-1008 1
PACKING 43049 43049-1016 1
PAD-BRAKE 43050 43050-1040 1
BREATHER 43056 43056-003 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1083 1
BOOT,PISTON SEAL 49006 49006-1053 1
BOOT,CALIPER 49006A 49006-1054 1
BOOT,CALIPER 49006B 49006-1055 1
SPRING 92081 92081-1341 1
BOLT-FLANGED 130 130P0840 2
