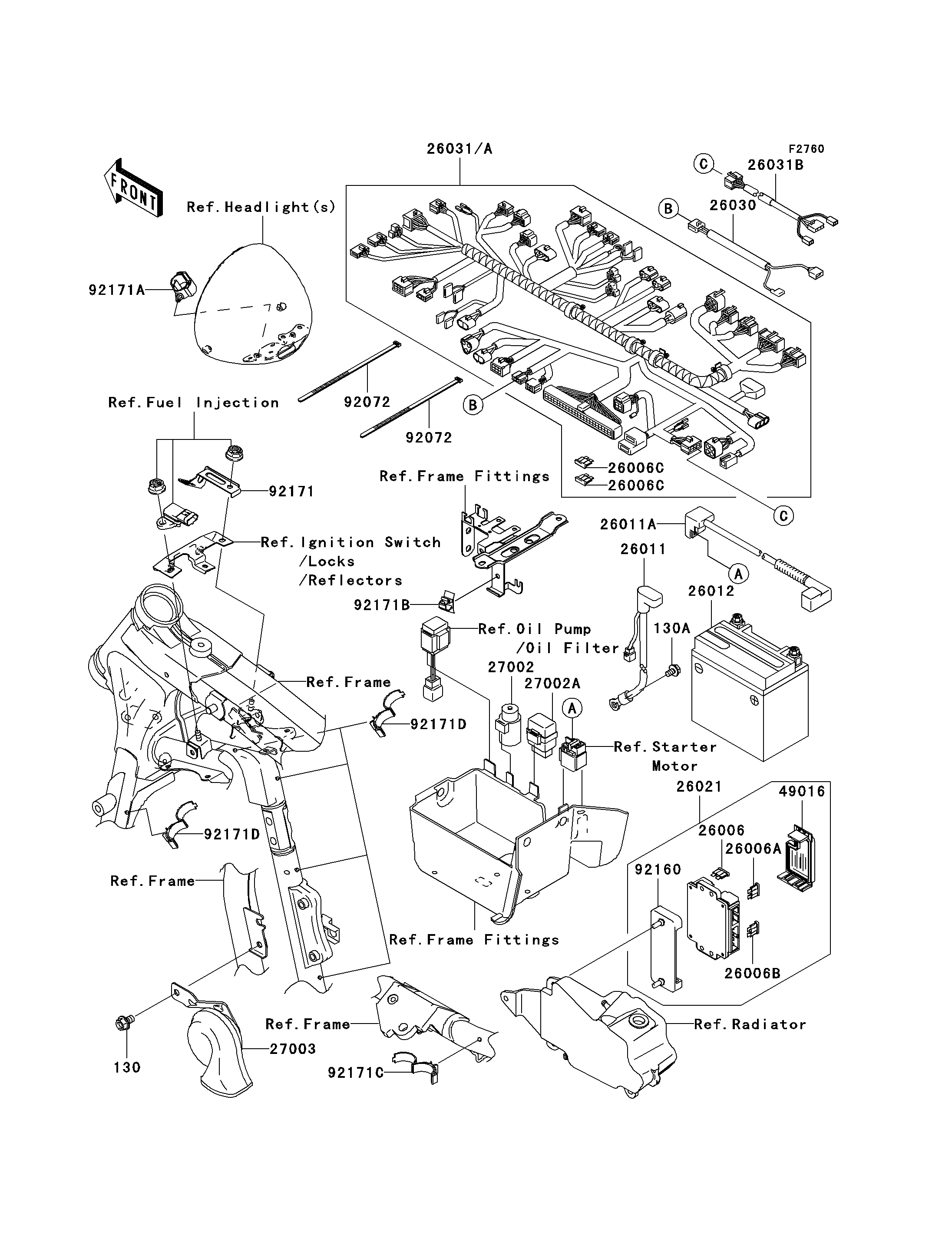

2008 Vulcan® 1600 Nomad™ - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
26006
26006A
26006B
26006C
26006C
26011
26011A
26012
26021
26030
26031A
26031B
27002
27002A
27003
49016
92072
92072
92160
92171
92171A
92171B
92171C
92171D
92171D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X12 130 130J0812 1
BOLT-FLANGED,6X10 130A 130V0610 1
FUSE,30A-G 26006 26006-1006 1
FUSE,10A-R 26006A 26006-1007 7
FUSE,15A-B 26006B 26006-1061 1
FUSE,15A 26006C 26006-1075 2
WIRE-LEAD,BATTERY(-) 26011 26011-0007 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0018 1
BATTERY,MF,FTZ16-BS,12V 18AH 26012 26012-1371 1
JUNCTION BOX 26021 26021-0002 1
HARNESS,SUB 26030 26030-1450 1
HARNESS,MAIN 26031A 26031-0478 1
HARNESS,TAIL 26031B 26031-1077 1
RELAY-ASSY 27002 27002-1051 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1113 1
HORN 27003 27003-0027 1
COVER-SEAL,FUSE 49016 49016-0005 1
BAND,L=365 92072 92072-1197 2
DAMPER,JUNCTION BOX 92160 92160-1650 1
CLAMP,HARNESS COUPLER 92171 92171-0065 1
CLAMP,DIA=20 92171A 92171-0069 1
CLAMP,HARNESS 92171B 92171-1269 1
CLAMP,DIA=10 92171C 92171-1423 1
CLAMP,DIA=15 92171D 92171-1424 5
