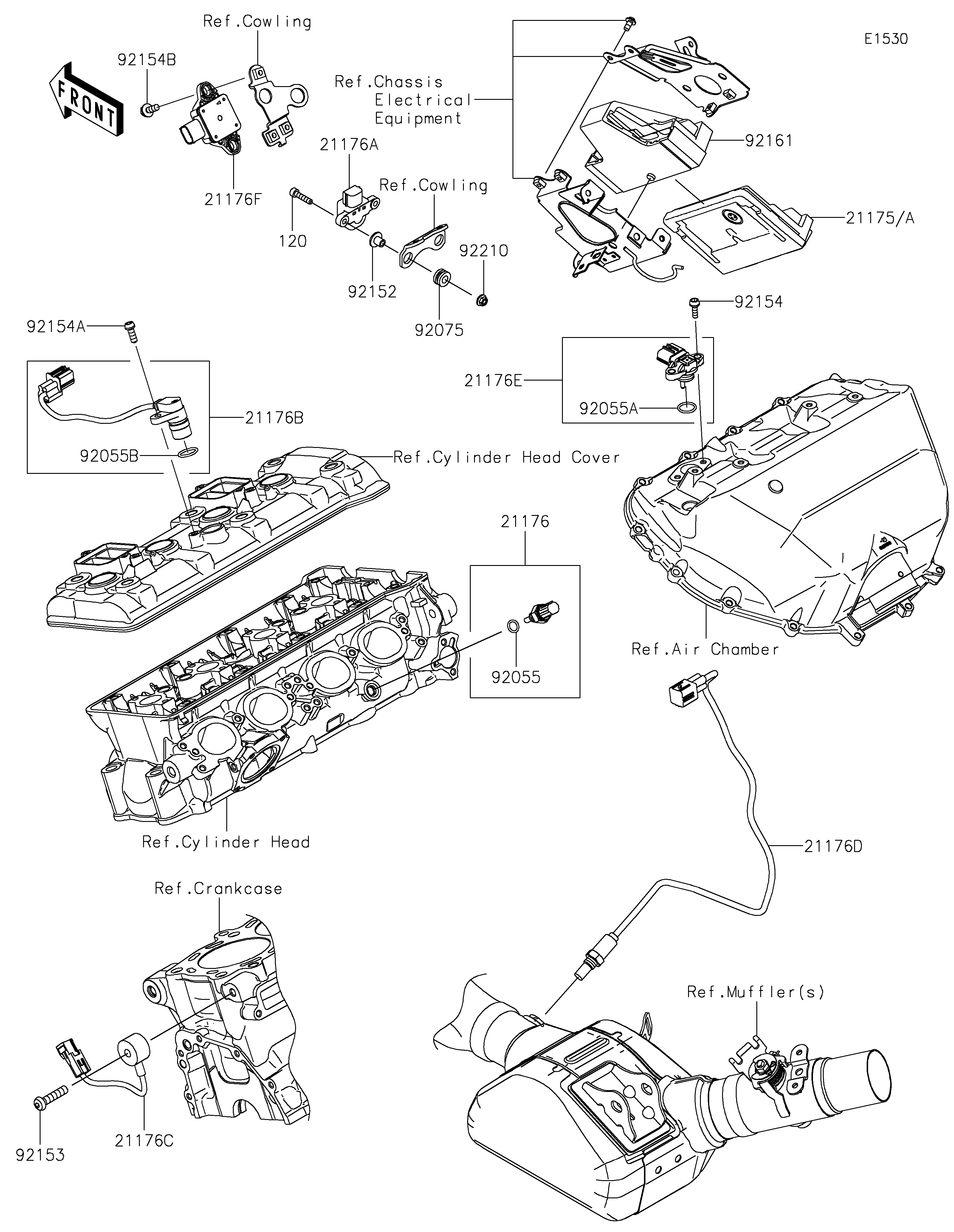

2019 NINJA H2™ - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
21175
21175A
21176
21176A
21176B
21176C
21176D
21176E
21176F
92055
92055A
92055B
92075
92152
92153
92154
92154A
92154B
92161
92210
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONTROL UNIT-ELECTRONIC 21175 21175-1457 1 CN
CONTROL UNIT-ELECTRONIC 21175A 21175-1458 1 CA
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,CAM 21176B 21176-0101 1
SENSOR,KNOCK 21176C 21176-0788 1
SENSOR,OXYGEN 21176D 21176-0789 1
SENSOR,INTAKE TEMP&PRESSURE 21176E 21176-0791 1
SENSOR,INERTIAL 21176F 21176-0878 1
RING-O,9.5X1.9 92055 92055-0016 1
RING-O 92055A 92055-0842 1
RING-O 92055B 92055-1639 1
DAMPER 92075 92075-1912 2
COLLAR 92152 92152-1969 2
BOLT,SOCKET,8X35 92153 92153-0419 1
BOLT,SOCKET,5X16 92154 92154-1449 2
BOLT,SOCKET,6X16 92154A 92154-1454 1
BOLT,FLANGED,6X16 92154B 92154-1851 2
DAMPER,ECU 92161 92161-1719 1
NUT,FLANGED,5MM 92210 92210-0950 2
BOLT-SOCKET,5X22 120 120R0522 2
