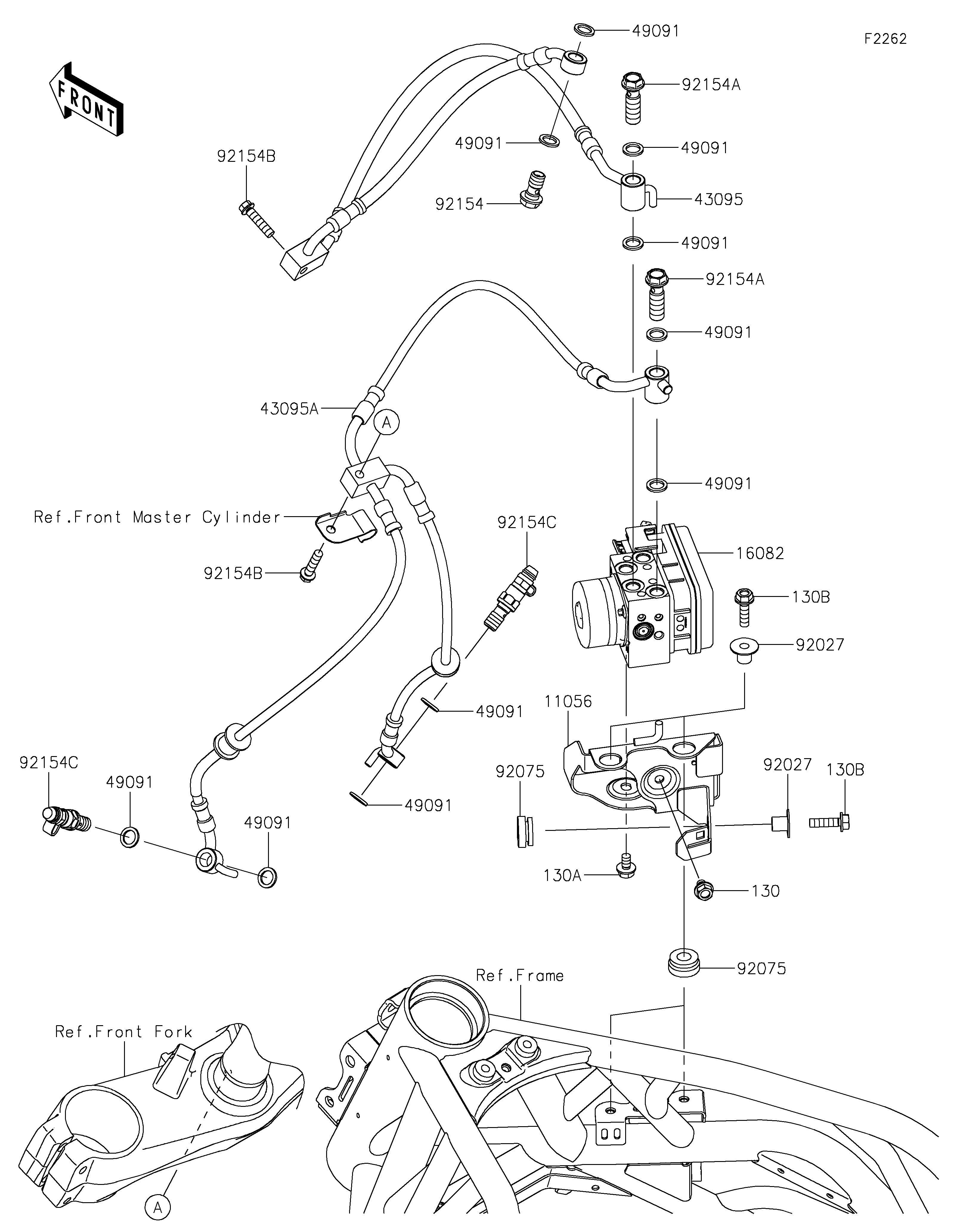

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,ABS UNIT | 11056 | 11056-7852 | 1 | ||
PUMP-ASSY-OIL,ABS,9.1MP | 16082 | 16082-0822 | 1 | ||
HOSE-BRAKE,M/C-HU | 43095 | 43095-0854 | 1 | ||
HOSE-BRAKE,HU-FR CALIPER | 43095A | 43095-1631 | 1 | ||
WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 10 | ||
COLLAR,L=12 | 92027 | 92027-1062 | 3 | ||
DAMPER | 92075 | 92075-277 | 3 | ||
BOLT,BANJO,10X19 | 92154 | 92154-1554 | 1 | ||
BOLT,BANJO,10X32.3 | 92154A | 92154-1555 | 2 | ||
BOLT,FLANGED,6X25 | 92154B | 92154-1849 | 2 | ||
BOLT,BANJO,10X19 | 92154C | 92154-4032 | 2 | ||
BOLT-FLANGED,6X8 | 130 | 130BB0608 | 1 | ||
BOLT-FLANGED,6X10 | 130A | 130BB0610 | 1 | ||
BOLT-FLANGED,6X22 | 130B | 130BB0622 | 3 |
