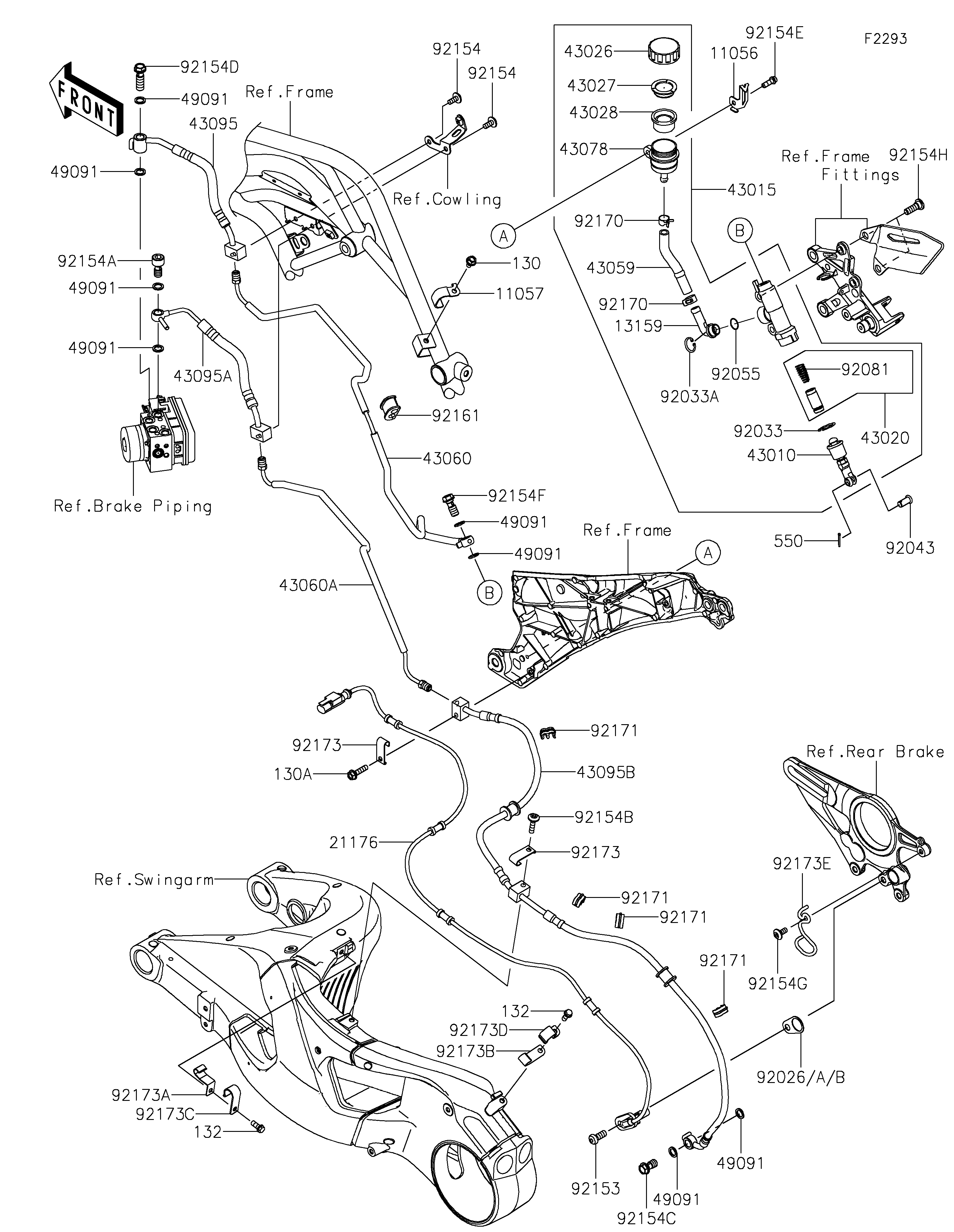

2019 NINJA H2™ - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11057
11057
13159
13159
21176
21176
43010
43010
43015
43015
43020
43020
43026
43026
43027
43027
43028
43028
43059
43059
43060
43060
43060A
43060A
43078
43078
43095
43095
43095A
43095A
43095B
43095B
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92026
92026
92026A
92026A
92026B
92026B
92033
92033
92033A
92033A
92043
92043
92055
92055
92081
92081
92153
92153
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92154E
92154E
92154F
92154F
92154G
92154G
92154H
92154H
92161
92161
92170
92170
92170
92170
92171
92171
92171
92171
92171
92171
92171
92171
92173
92173
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
92173E
92173E
130
130
130A
130A
132
132
132
132
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK CAP 11056 11056-7024 1
BRACKET,BRAKE PIPE 11057 11057-0419 1
CONNECTOR 13159 13159-1056 1
SENSOR,WHEEL SPEED,RR 21176 21176-0793 1
ROD-ASSY-BRAKE 43010 43010-0016 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0618 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
HOSE-BRAKE,M/CYLINDER 43059 43059-1548 1
PIPE-BRAKE,RR M/C 43060 43060-0321 1
PIPE-BRAKE,RR CALIPER 43060A 43060-0322 1
RESERVOIR 43078 43078-0575 1
HOSE-BRAKE,HU-RR M/C PIPE 43095 43095-0856 1
HOSE-BRAKE,HU-RR CALIPER PIPE 43095A 43095-0857 1
HOSE-BRAKE,RR CALIPER 43095B 43095-1447 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 8
SPACER,RR SENSOR,T0.5 92026 92026-0789 AR
SPACER,RR SENSOR,T1.0 92026A 92026-0790 1
SPACER,RR SENSOR,T1.5 92026B 92026-0791 AR
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN,8X17 92043 92043-0104 1
RING-O,14.8X2.4 92055 92055-0741 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,SOCKET,8X20 92153 92153-0912 1
BOLT,SOCKET,6X14 92154 92154-0745 2
BOLT,BANJO,10X20.8 92154A 92154-1121 1
BOLT,SOCKET,6X25 92154B 92154-1532 1
BOLT,BANJO,10X19 92154C 92154-1554 1
BOLT,BANJO,10X32.3 92154D 92154-1555 1
BOLT,SOCKET,6X18 92154E 92154-1564 1
BOLT,BANJO,10X23 92154F 92154-1712 1
BOLT,SOCKET,6X14 92154G 92154-1735 1
BOLT,SOCKET,8X25 92154H 92154-1806 2
DAMPER,BRAKE PIPE 92161 92161-1894 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92171 92171-0921 4
CLAMP,SWING ARM,MID 92173 92173-1378 2
CLAMP,SWING ARM,FR,LWR 92173A 92173-1379 1
CLAMP,SWING ARM,RR,LWR 92173B 92173-1380 1
CLAMP,SWING ARM,FR,UPP 92173C 92173-1382 1
CLAMP,SWING ARM,RR,UPP 92173D 92173-1383 1
CLAMP,RR BRAKE HOLDER 92173E 92173-1384 1
BOLT-FLANGED,6X10 130 130BB0610 1
BOLT-FLANGED,6X25 130A 130BB0625 1
BOLT-FLANGED-SMALL,6X14 132 132BB0614 2
PIN-COTTER,2.0X15 550 550AA2015 1
