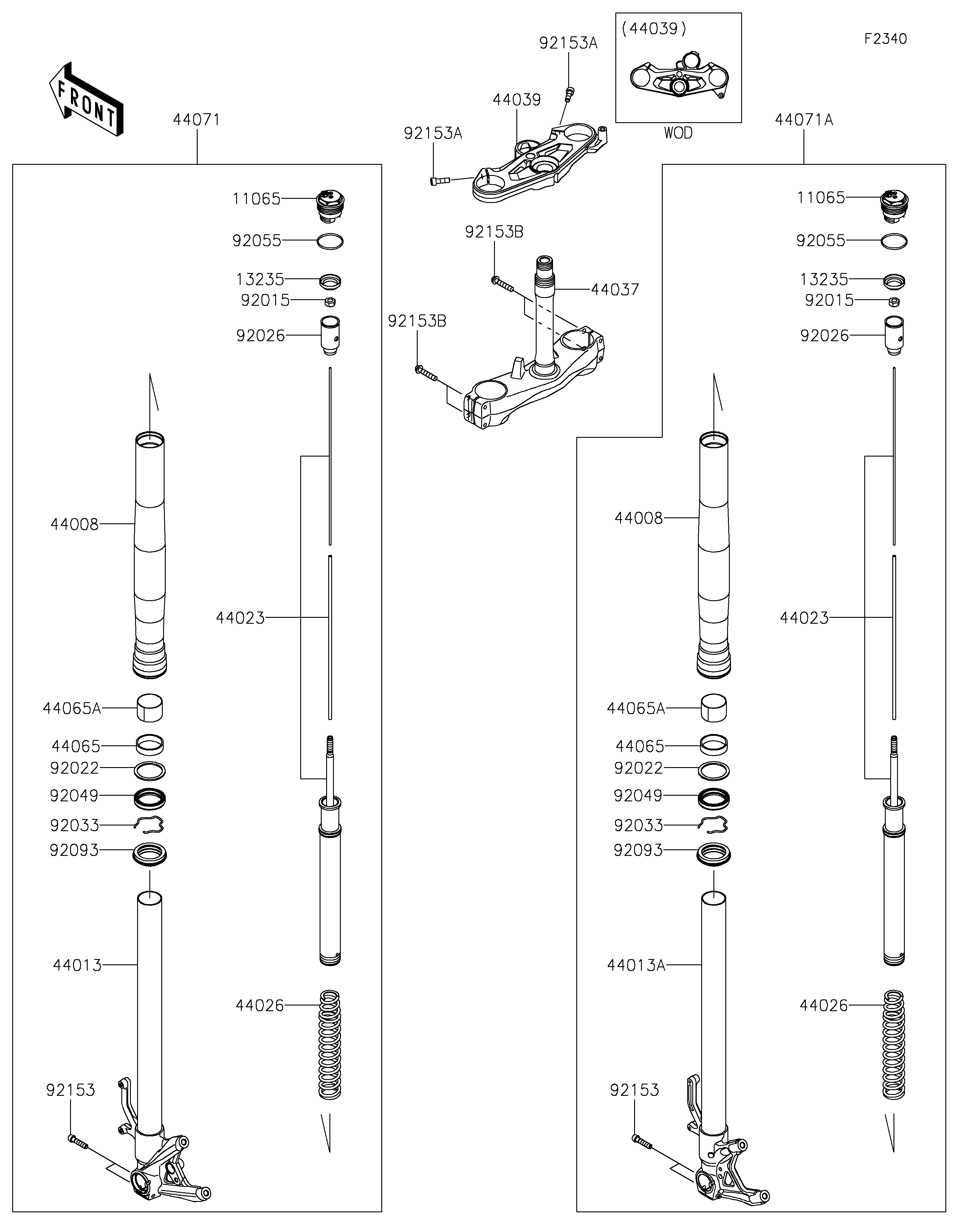

2019 NINJA H2™ - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13235
13235
44008
44008
44013
44013A
44023
44023
44026
44026
44037
44039
44065
44065
44065A
44065A
44071
44071A
92015
92015
92022
92022
92026
92026
92033
92033
92049
92049
92055
92055
92093
92093
92153
92153
92153A
92153A
92153B
92153B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,G.B.GREEN 11065 11065-0924-50Y 2
GUIDE-COMP 13235 13235-0011 2
PIPE-FORK OUTER,GRAY 44008 44008-0079-11G 2
PIPE-FORK INNER,LH 44013 44013-0245 1
PIPE-FORK INNER,RH 44013A 44013-0246 1
CYLINDER-SET-FORK 44023 44023-0132 2
SPRING-FRONT FORK 44026 44026-0211 2
HOLDER-FORK UNDER 44037 44037-0153 1
HOLDER-FORK UPPER,M.F.S.BLACK 44039 44039-0149-46R 1
BUSHING-FRONT FORK,SLIDE 44065 44065-0056 2
BUSHING-FRONT FORK 44065A 44065-0064 2
DAMPER-ASSY,FORK,LH,GRAY 44071 44071-1261-50K 1
DAMPER-ASSY,FORK,RH,GRAY 44071A 44071-1262-50K 1
NUT 92015 92015-1795 2
WASHER 92022 92022-1299 2
SPACER 92026 92026-0805 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL 92049 92049-0072 2
RING-O 92055 92055-0145 2
SEAL,DUST 92093 92093-0058 2
BOLT,SOCKET,8X35 92153 92153-1472 4
BOLT,SOCKET,8X25 92153A 92153-1625 2
BOLT,FLANGED,8X40 92153B 92153-1884 4
