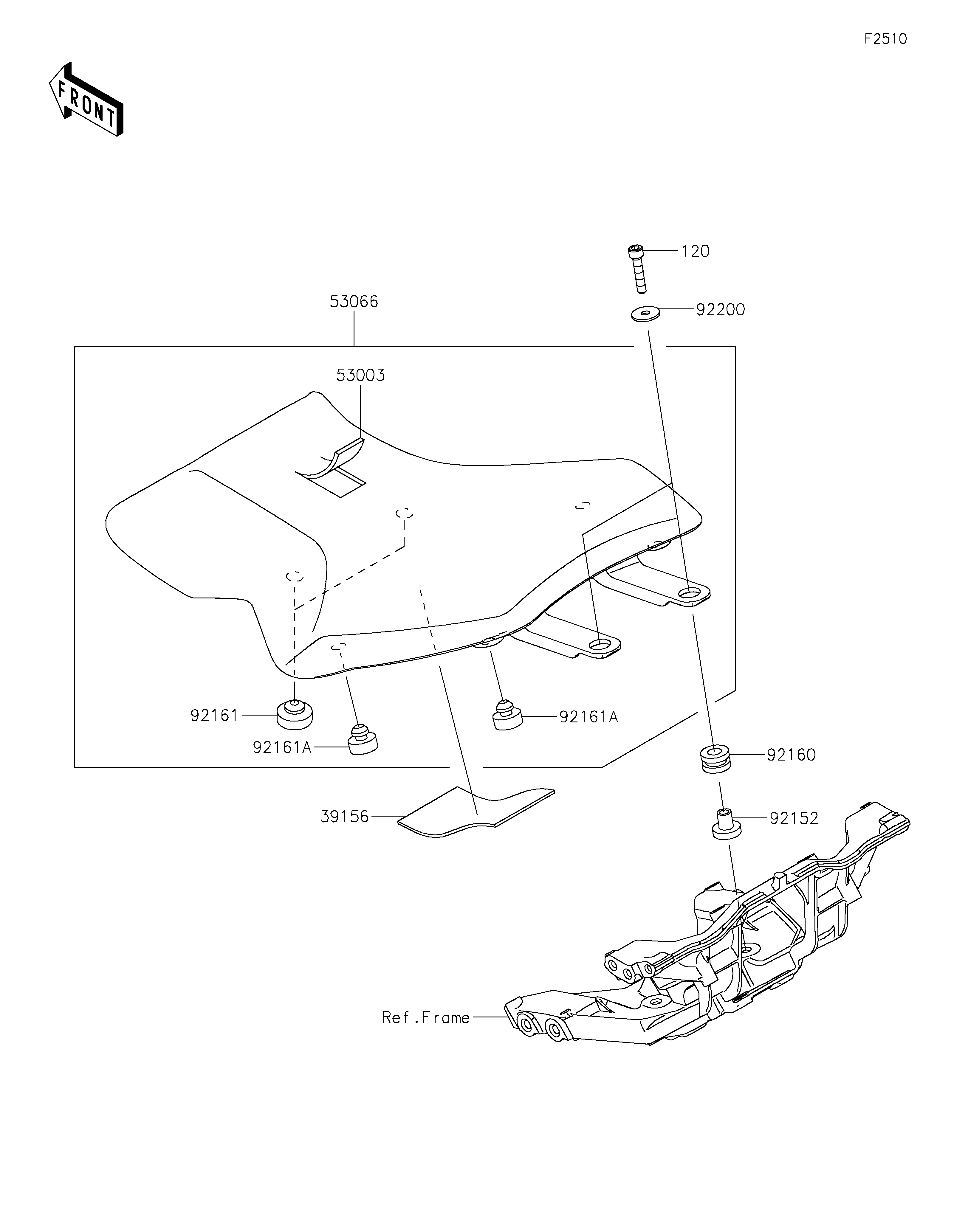

39156
53003
53066
92152
92160
92161
92161A
92161A
92200
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,RR FRM 39156 39156-1778 1
LEATHER,BLACK 53003 53003-0404-MA 1
SEAT-ASSY,BLACK 53066 53066-0462-MA 1
COLLAR,6.5X20X16.8 92152 92152-2119 2
DAMPER,10X20X12 92160 92160-1167 2
DAMPER,SEAT,10X25X8 92161 92161-0095 2
DAMPER,8X20X8 92161A 92161-0223 4
WASHER,6X20X1.6 92200 92200-0212 2
BOLT-SOCKET,6X30 120 120CA0630 2
