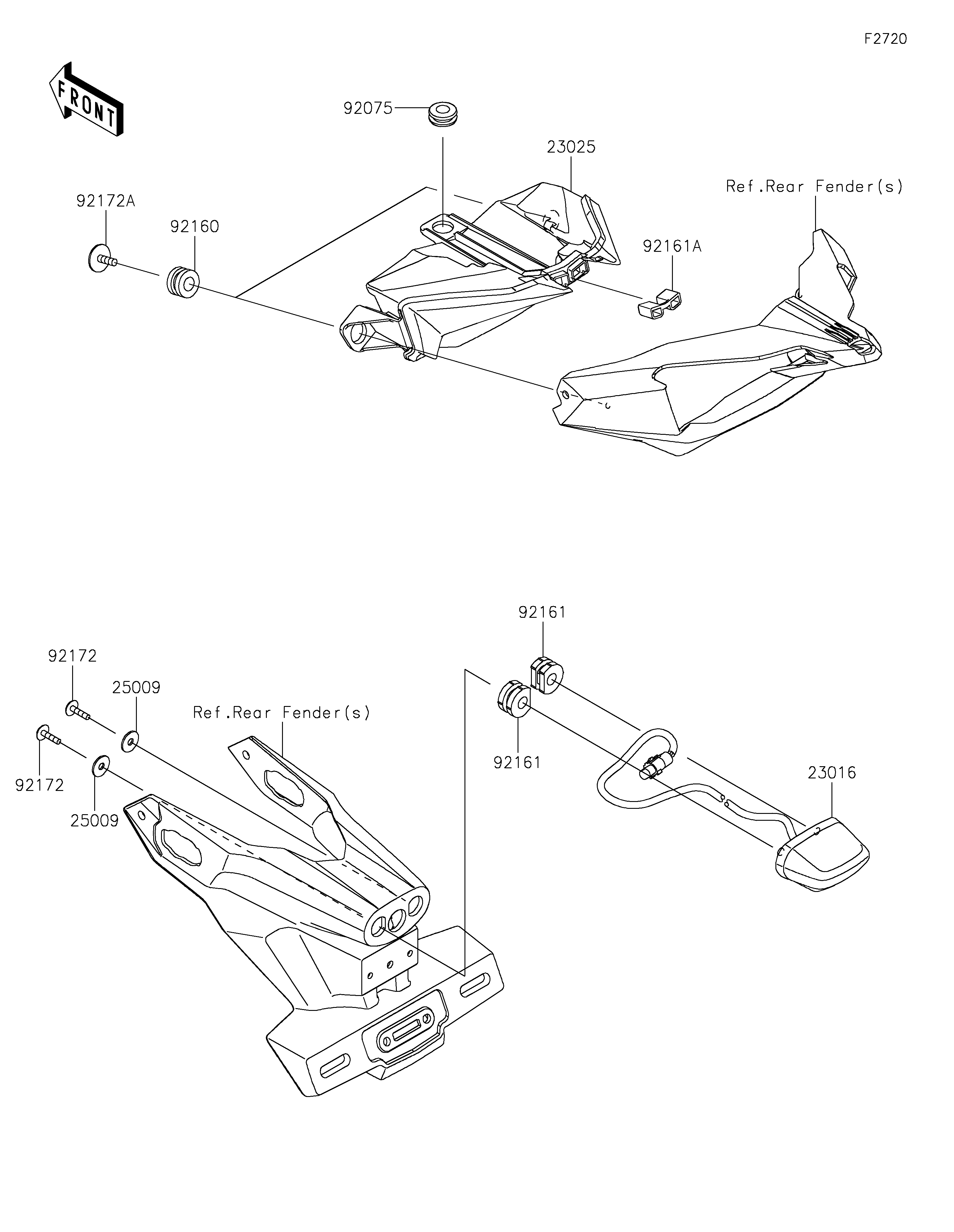

23016
23025
25009
25009
92075
92160
92161
92161
92161A
92172
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-ASSY,LICENSE,LED 23016 23016-0639 1
LAMP-TAIL,LED 23025 23025-0346 1
WASHER,5.2X16X1.2 25009 25009-004 2
DAMPER 92075 92075-1028 1
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92161 92161-0776 2
DAMPER,RR FENDER 92161A 92161-1727 1
SCREW,TAPPING,5X16 92172 92172-0238 2
SCREW,TAPTITE,5X16 92172A 92172-0481 2
