23037
23037A
92200
92200
92200A
92200A
224
224

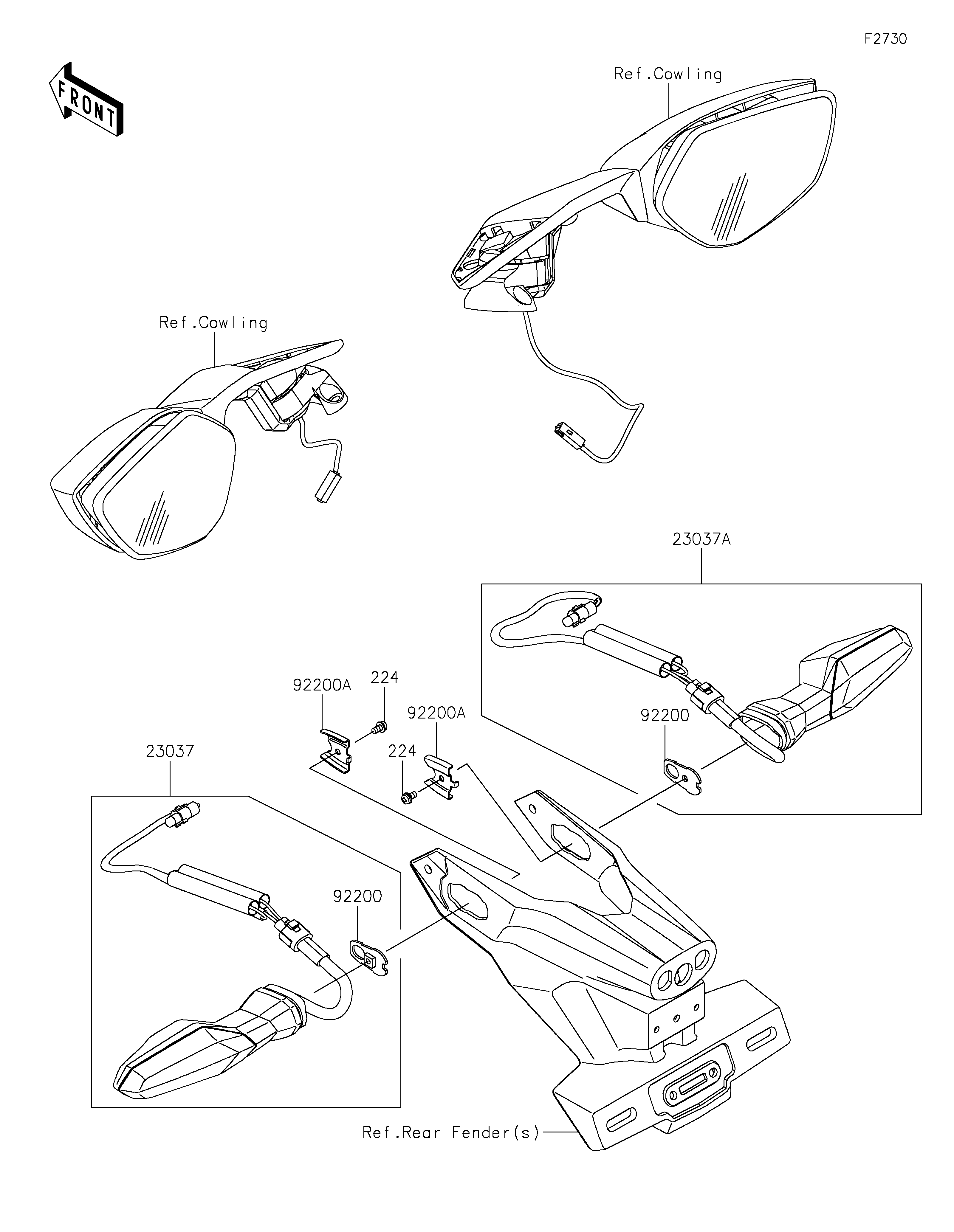

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-ASSY-SIGNAL,LED,RR,LH 23037 23037-0324 1
LAMP-ASSY-SIGNAL,LED,RR,RH 23037A 23037-0325 1
WASHER,NUT 4MM 92200 92200-0854 2
WASHER 92200A 92200-0855 2
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
