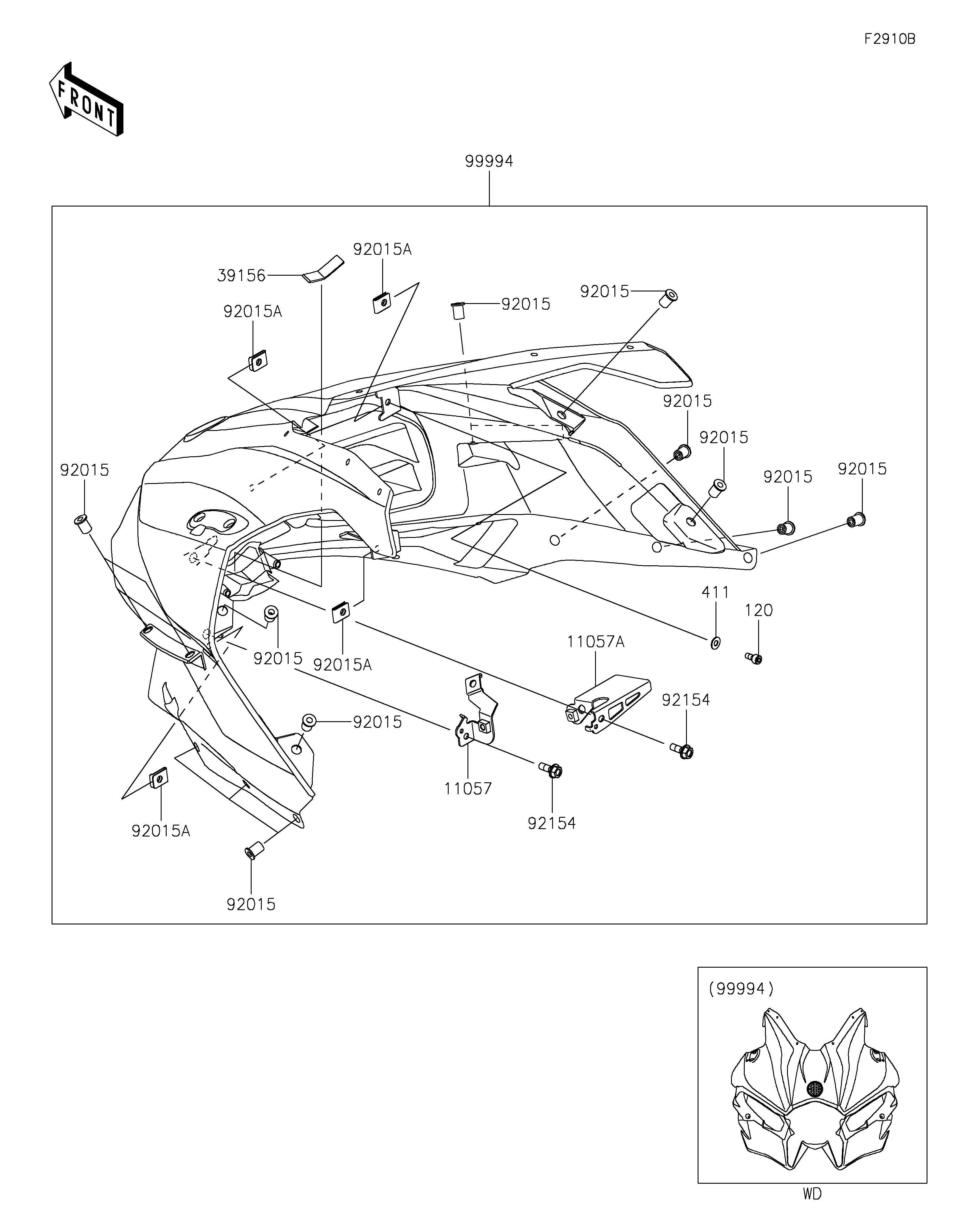

2019 NINJA H2™ - Accessory(Carbon Cowling Kit)(JKF/JLF)
11057
11057A
39156
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92154
92154
99994
120
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-0765 | 1 | ||
| BRACKET,HEAD LAMP HARNESS | 11057A | 11057-0777 | 1 | ||
| PAD,10X50X2 | 39156 | 39156-1924 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 14 | ||
| NUT,5MM | 92015A | 92015-1996 | 4 | ||
| BOLT,FLANGED,6X16 | 92154 | 92154-0899 | 2 | ||
| CARBON COWLING KIT | 99994 | 99994-1006 | 1 | ||
| BOLT-SOCKET,5X16 | 120 | 120CA0516 | 4 | ||
| WASHER-PLAIN,5MM | 411 | 411AA0500 | 4 |
| BRACKET | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HEAD LAMP HARNESS | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,10X50X2 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CARBON COWLING KIT | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,5X16 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,5MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
