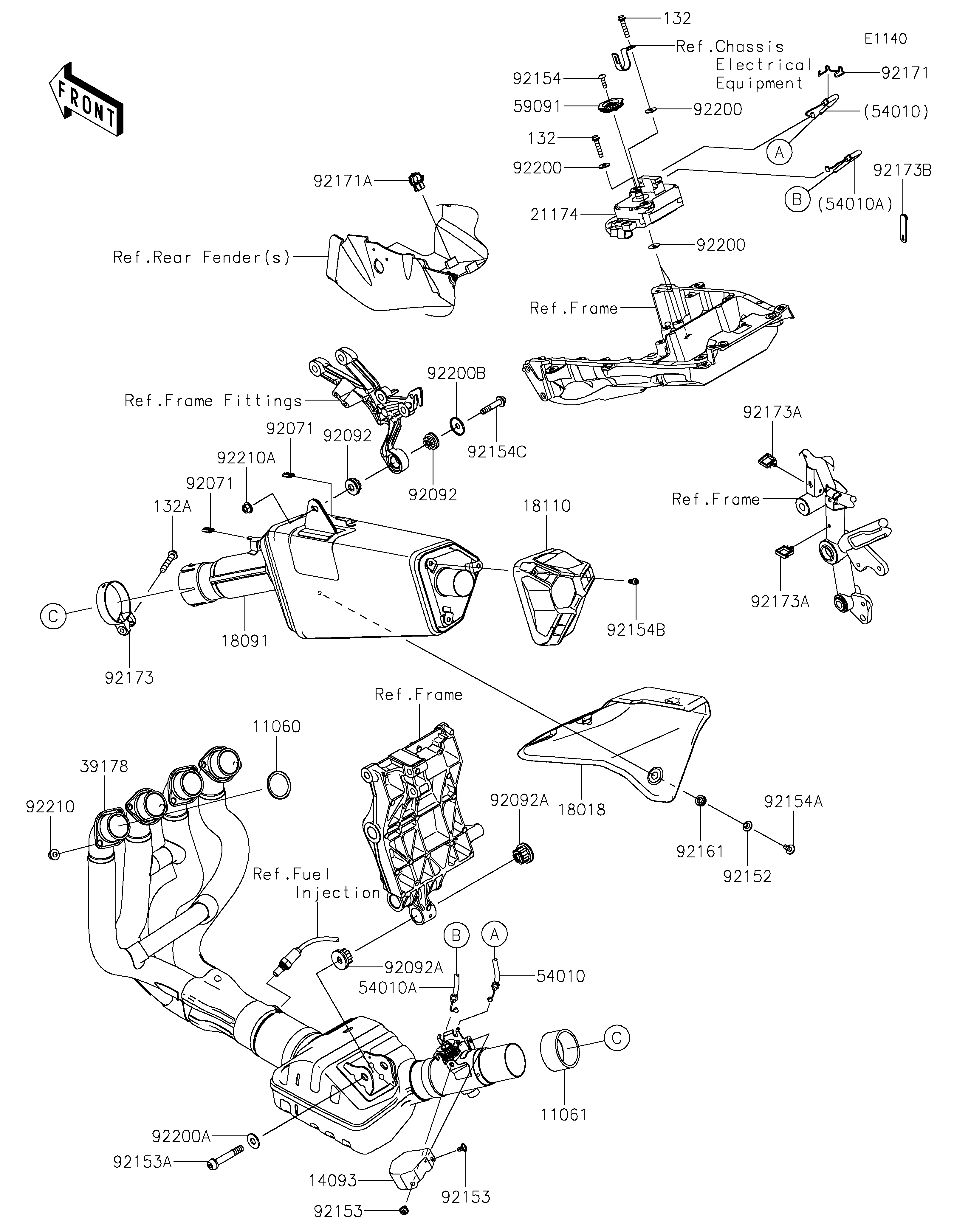

2021 Ninja H2 SX SE+ - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11061
14093
18018
18091
18110
21174
39178
54010
54010A
59091
92071
92071
92092
92092
92092A
92092A
92152
92153
92153
92153A
92154
92154A
92154B
92154C
92161
92171
92171A
92173
92173A
92173A
92173B
92200
92200
92200
92200A
92200B
92210
92210A
132
132
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11060 11060-1203 4
GASKET,MUFFLER JOINT 11061 11061-0980 1
COVER 14093 14093-0643 1
PLATE-HEAT GUARD,RR 18018 18018-0606 1
BODY-COMP-MUFFLER 18091 18091-1151 1
BODY END-MUFFLER 18110 18110-0215 1
MOTOR-ELECTRIC 21174 21174-0009 1
MANIFOLD-COMP-EXHAUST 39178 39178-0311 1
CABLE,OPEN 54010 54010-0622 1
CABLE,CLOSE 54010A 54010-0623 1
PULLEY 59091 59091-0007 1
GROMMET 92071 92071-1270 2
BUSHING-RUBBER 92092 92092-0018 2
BUSHING-RUBBER 92092A 92092-1081 2
COLLAR 92152 92152-2461 1
BOLT,SOCKET,6X10 92153 92153-1527 2
BOLT,SOCKET,10X60 92153A 92153-1837 1
BOLT,TORX,5X18 92154 92154-0217 1
BOLT,SOCKET,6X14 92154A 92154-0907 1
BOLT,SOCKET,6X12 92154B 92154-1453 3
BOLT,SOCKET,8X40 92154C 92154-2808 1
DAMPER 92161 92161-0306 1
CLAMP 92171 92171-0292 1
CLAMP,EDGE CLIP 92171A 92171-1722 1
CLAMP,64.5MM 92173 92173-0284 1
CLAMP 92173A 92173-1513 2
CLAMP 92173B 92173-2198 1
WASHER 92200 92200-0078 4
WASHER,10.5X25X2.0 92200A 92200-1377 1
WASHER 92200B 92200-1919 1
NUT,8MM 92210 92210-0076 8
NUT,8MM 92210A 92210-0121 1
BOLT-FLANGED-SMALL,6X30 132 132BA0630 2
BOLT-FLANGED-SMALL,8X40 132A 132BC0840 1
