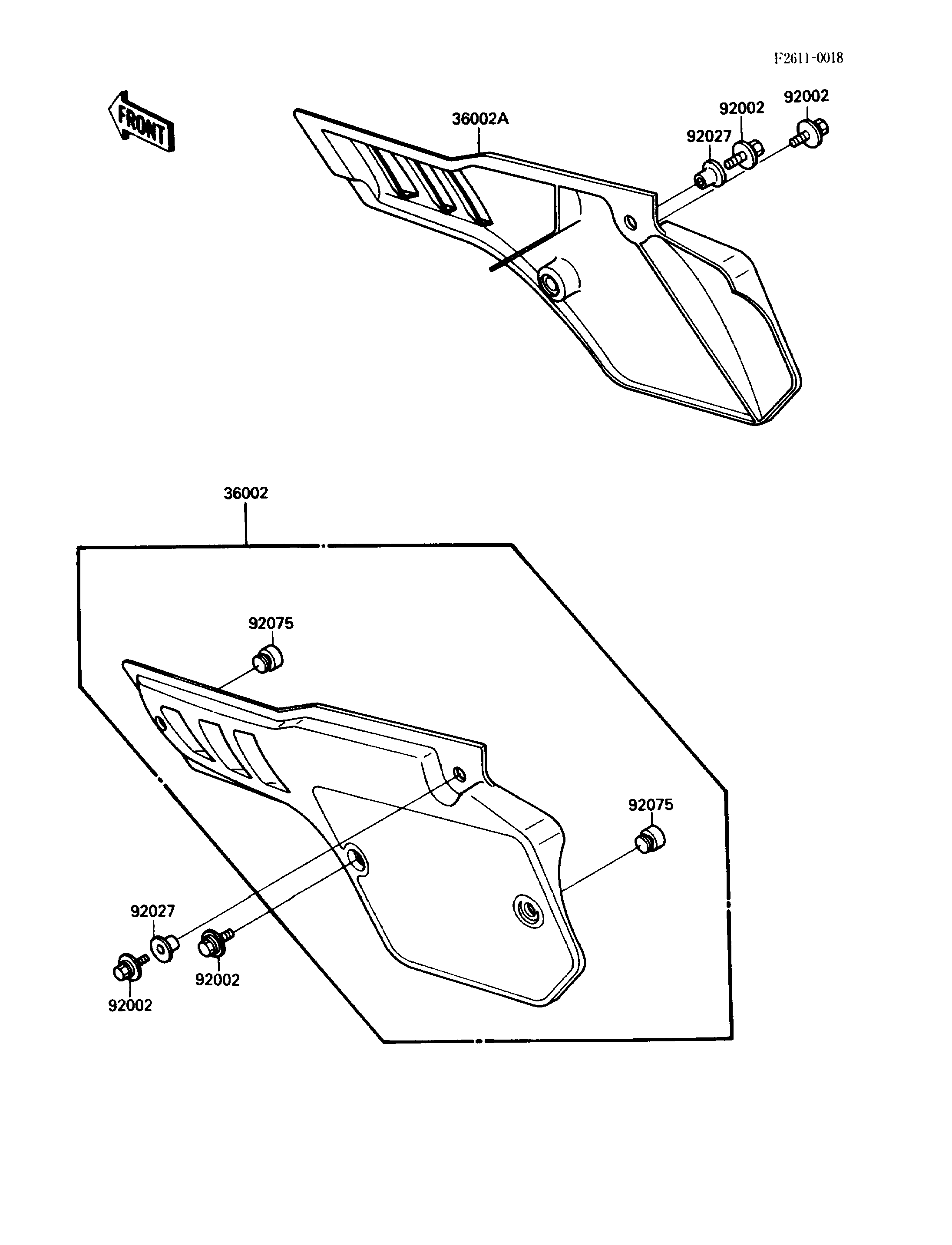

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,BLUE 36002 36002-5427-BG 1
COVER-SIDE,RH,BLUE 36002A 36002-5428-BG 1
BOLT,6X18 92002 92002-1952 4
COLLAR 92027 92027-1936 2
DAMPER 92075 92075-1598 2
