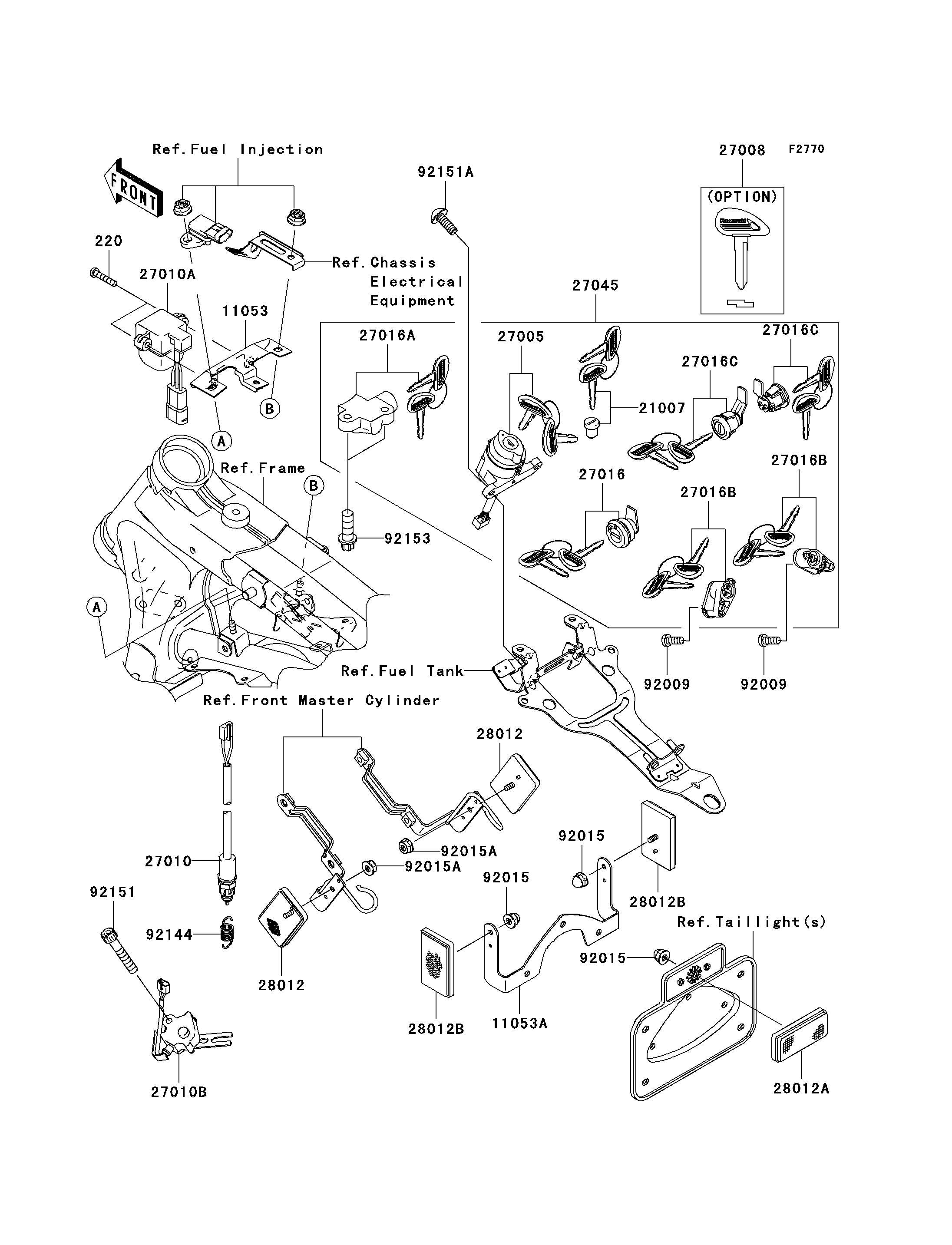

2008 Vulcan® 1600 Nomad™ - Ignition Switch/Locks/Reflectors
220
11053
11053A
21007
27005
27008
27010
27010A
27010B
27016
27016A
27016B
27016B
27016C
27016C
27045
28012
28012
28012A
28012B
28012B
92009
92009
92015
92015
92015
92015A
92015A
92144
92151
92151A
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS,4X20 | 220 | 220C0420 | 2 | ||
BRACKET,DOWN SENSOR | 11053 | 11053-0261 | 1 | ||
BRACKET,REFLECTOR,RR | 11053A | 11053-1669 | 1 | ||
ROTOR,LOCK,TANK CAP | 21007 | 21007-5053 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-0001 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1211 | 1 | (OPTION) | |
SWITCH,REAR BRAKE | 27010 | 27010-1412 | 1 | ||
SWITCH,DOWN SENSOR | 27010A | 27010-1416 | 1 | ||
SWITCH,SIDE STAND | 27010B | 27010-1470 | 1 | ||
LOCK-ASSY,LID | 27016 | 27016-5279 | 1 | ||
LOCK-ASSY,STEERING | 27016A | 27016-5298 | 1 | ||
LOCK-ASSY,HELMET | 27016B | 27016-5311 | 2 | ||
LOCK-ASSY,SIDE BAG | 27016C | 27016-5325 | 2 | ||
SWITCH-ASSY | 27045 | 27045-5285 | 1 | ||
REFLECTOR-REFLEX,FR | 28012 | 28012-1009 | 2 | ||
REFLECTOR-REFLEX | 28012A | 28012-1077 | 1 | ||
REFLECTOR-REFLEX | 28012B | 28012-1088 | 2 | ||
SCREW,5X12 | 92009 | 92009-1296 | 2 | ||
NUT,LOCK,FLANGE CAP,5MM | 92015 | 92015-1263 | 3 | ||
NUT,FLANGED,5MM | 92015A | 92015-1656 | 2 | ||
SPRING,REAR BRAKE SWITCH | 92144 | 92144-1141 | 1 | ||
BOLT,SOCKET,6X35 | 92151 | 92151-1390 | 1 | ||
BOLT,SOCKET,6X16 | 92151A | 92151-1751 | 2 | ||
BOLT,TORX,8X22 | 92153 | 92153-1273 | 2 |
SCREW-PAN-CROS,4X20 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,DOWN SENSOR | |
REF # | 11053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,REFLECTOR,RR | |
REF # | 11053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROTOR,LOCK,TANK CAP | |
REF # | 21007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-ASSY-IGNITION | |
REF # | 27005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KEY-LOCK,BLANK | |
REF # | 27008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SWITCH,REAR BRAKE | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,DOWN SENSOR | |
REF # | 27010A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,SIDE STAND | |
REF # | 27010B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,LID | |
REF # | 27016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,STEERING | |
REF # | 27016A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,HELMET | |
REF # | 27016B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LOCK-ASSY,SIDE BAG | |
REF # | 27016C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SWITCH-ASSY | |
REF # | 27045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX,FR | |
REF # | 28012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX | |
REF # | 28012A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX | |
REF # | 28012B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,5X12 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGE CAP,5MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,FLANGED,5MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,REAR BRAKE SWITCH | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X35 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X16 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,TORX,8X22 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
