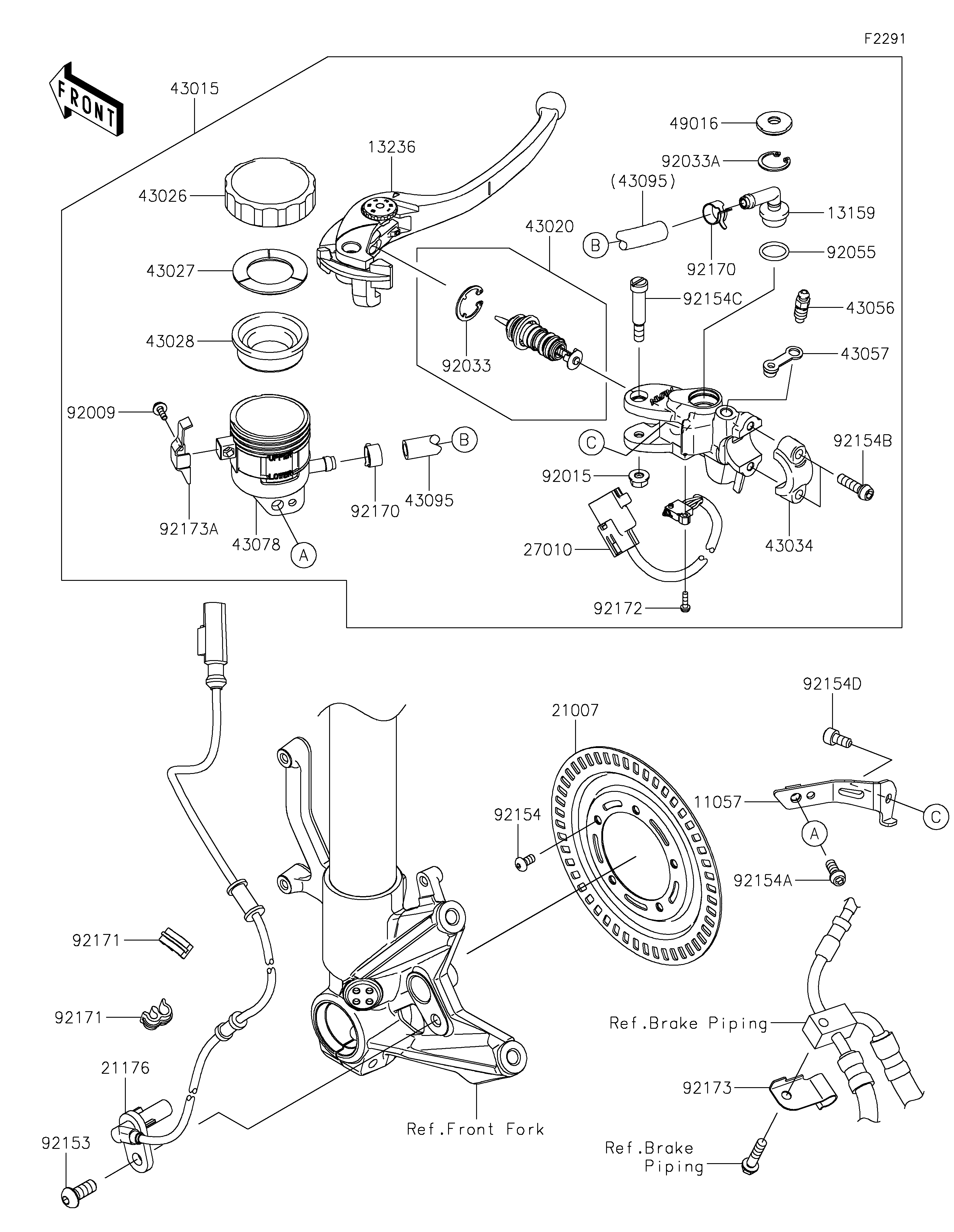

2021 Ninja H2 SX SE+ - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
13159
13236
21007
21176
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
43095
49016
92009
92015
92033
92033A
92055
92153
92154
92154A
92154B
92154C
92154D
92170
92170
92171
92171
92172
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR 11057 11057-1314 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FR BRAKE 13236 13236-0802 1
ROTOR,SENSOR,FR 21007 21007-0657 1
SENSOR,SPEED,FR 21176 21176-0907 1
SWITCH 27010 27010-0914 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0744 1
PISTON-COMP-BRAKE 43020 43020-0033 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0056 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-0591 1
HOSE-BRAKE,FR MASTER CYLINDER 43095 43095-0366 1
COVER-SEAL 49016 49016-1147 1
SCREW 92009 92009-1570 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,SOCKET,8X20 92153 92153-0912 1
BOLT,SOCKET,5X10 92154 92154-1292 5
BOLT,SOCKET,6X16 92154A 92154-1454 1
BOLT,SOCKET,6X22 92154B 92154-1724 2
BOLT,LEVER 92154C 92154-1912 1
BOLT,SOCKET,6X8 92154D 92154-2914 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92171 92171-0921 2
SCREW 92172 92172-1243 1
CLAMP 92173 92173-0086 1
CLAMP 92173A 92173-1790 1
