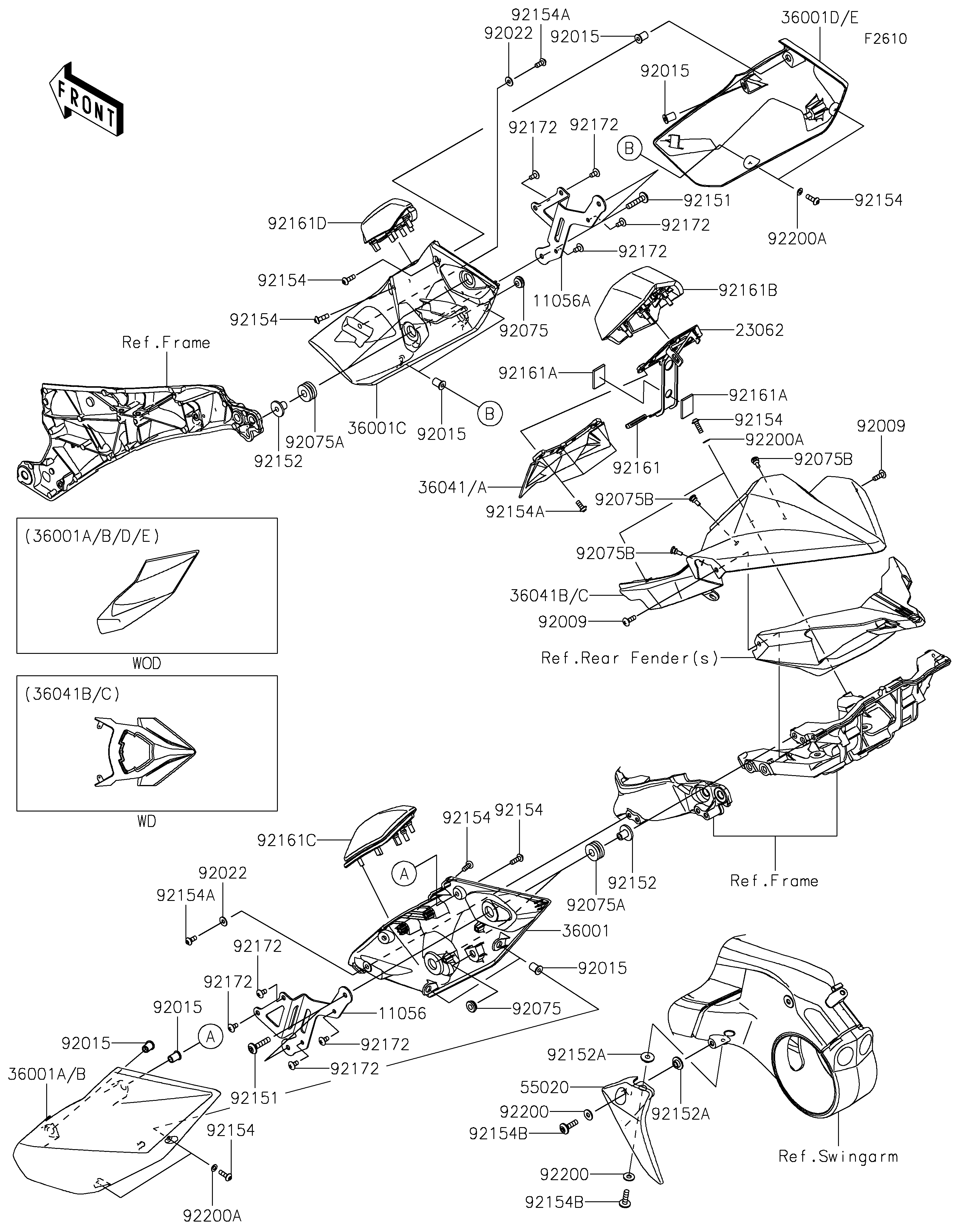

2021 NINJA H2® - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
23062
36001
36001A
36001C
36001D
36041
36041B
55020
92009
92009
92015
92015
92015
92015
92015
92015
92022
92022
92075
92075
92075A
92075A
92075B
92075B
92075B
92151
92151
92152
92152
92152A
92152A
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154B
92154B
92161
92161A
92161A
92161B
92161C
92161D
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE COVER,LH 11056 11056-4493 1
BRACKET,SIDE COVER,RH 11056A 11056-4494 1
BRACKET-COMP,TOOL COVER 23062 23062-0839 1
COVER-SIDE,LH,INNER 36001 36001-0621 1
COVER-SIDE,LH,OUTER,M.C.S.BLK 36001A 36001-0622-53X 1
COVER-SIDE,RH,INNER 36001C 36001-0623 1
COVER-SIDE,RH,OUTER,M.C.S.BLK 36001D 36001-0624-53X 1
COVER-TAIL,TOOL,M.C.S.BLACK 36041 36041-0010-53X 1
COVER-TAIL,M.C.S.BLACK 36041B 36041-5056-53X 1
GUARD,SPROCKET 55020 55020-1851 1
SCREW,5X16,BLACK 92009 92009-1654 2
NUT,WELL,5MM 92015 92015-1757 8
WASHER,5.2X13X1 92022 92022-1380 2
DAMPER,6X16X7 92075 92075-1011 2
DAMPER,10X24X12 92075A 92075-1690 4
DAMPER,6X10X15 92075B 92075-1808 3
BOLT,SOCKET,6X30 92151 92151-1605 4
COLLAR,6.3X10X14.5 92152 92152-0091 4
COLLAR,6.2X18X5.65 92152A 92152-1979 2
BOLT,SOCKET,5X16 92154 92154-1560 10
BOLT,SOCKET,5X12 92154A 92154-1561 5
BOLT,SOCKET,6X22 92154B 92154-1810 2
DAMPER 92161 92161-0629 1
DAMPER,20X30X3 92161A 92161-0958 2
DAMPER,SEAT CENTER PAD 92161B 92161-1802 1
DAMPER,SEAT SIDE PAD,LH 92161C 92161-1822 1
DAMPER,SEAT SIDE PAD,RH 92161D 92161-1823 1
SCREW,TAPPING,5X10 92172 92172-0262 8
WASHER,6.2X15X1.2 92200 92200-1762 2
WASHER,5.2X10X1.0 92200A 92200-1820 6
