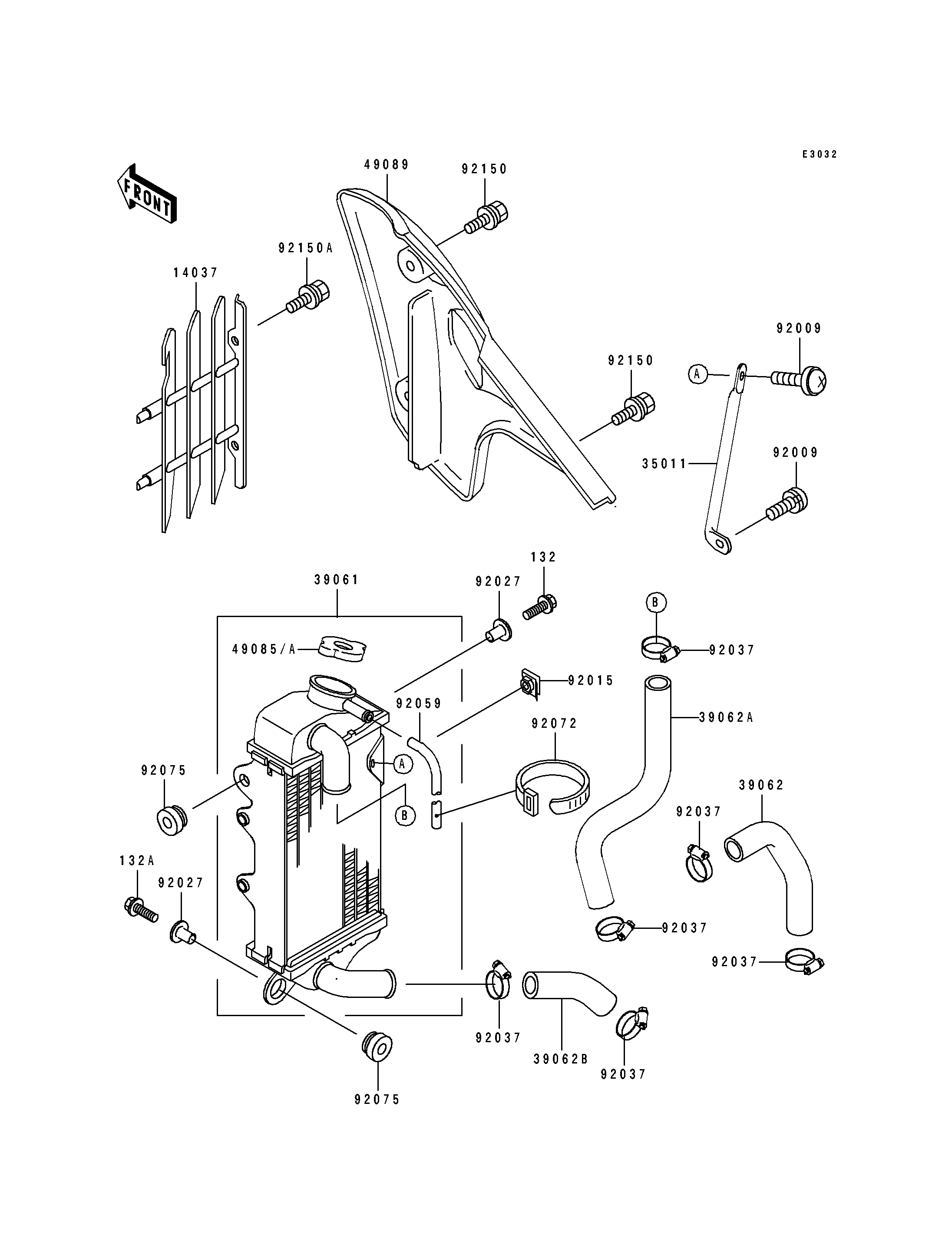

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREEN,RADIATOR,L.GRREN | 14037 | 14037-1113-6W | 1 | ||
STAY,RADIATOR | 35011 | 35011-1548 | 1 | ||
RADIATOR-ASSY | 39061 | 39061-1183 | 1 | ||
HOSE-COOLING,PUMP-CYLINDER | 39062 | 39062-1134 | 1 | ||
HOSE-COOLING,HEAD-RADIATOR | 39062A | 39062-1425 | 1 | ||
HOSE-COOLING,RADIATOR-PUMP | 39062B | 39062-1426 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1003 | 1 | ||
CAP-ASSY-PRESSURE,P=1.6 | 49085A | 49085-1059 | 1 | ||
SHROUD-ENGINE,L.GREEN | 49089 | 49089-5113-6W | 1 | ||
SCREW,6X10 | 92009 | 92009-1661 | 2 | ||
NUT | 92015 | 92015-1487 | 2 | ||
COLLAR | 92027 | 92027-1183 | 2 | ||
CLAMP,COOLING HOSE | 92037 | 92037-1589 | 6 | ||
TUBE,5X9X600 | 92059 | 92059-1259 | 1 | ||
BAND,L=186 | 92072 | 92072-056 | 1 | ||
DAMPER | 92075 | 92075-1352 | 2 | ||
BOLT,6X14 | 92150 | 92150-1340 | 3 | ||
BOLT,6X12 | 92150A | 92150-1435 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0620 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0625 | 1 |
SCREEN,RADIATOR,L.GRREN | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,RADIATOR | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR-ASSY | |
REF # | 39061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,PUMP-CYLINDER | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,HEAD-RADIATOR | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR-PUMP | |
REF # | 39062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE,P=1.6 | |
REF # | 49085A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD-ENGINE,L.GREEN | |
REF # | 49089 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X10 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,COOLING HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
TUBE,5X9X600 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=186 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X14 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
