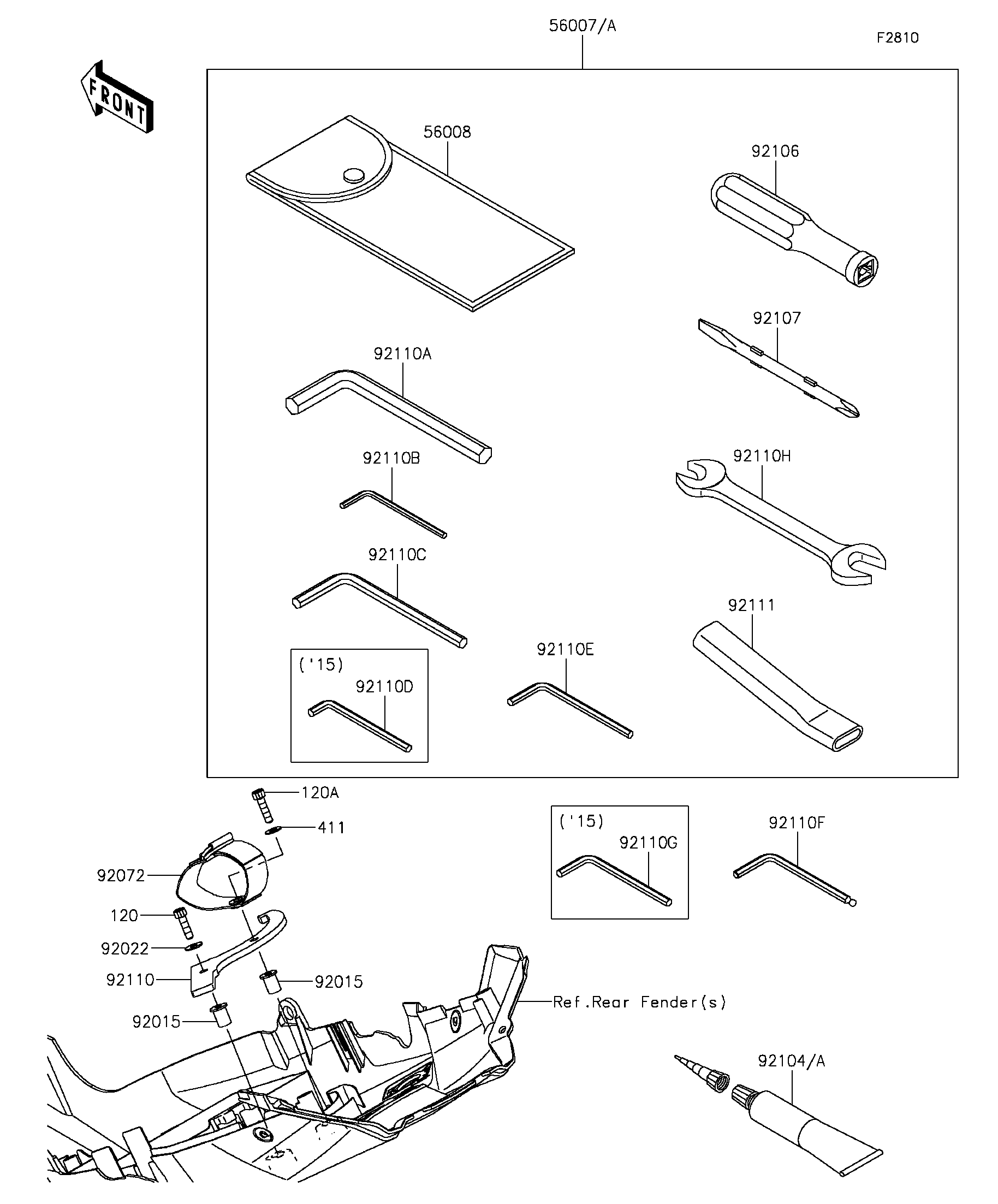

2016 Ninja H2R - Owner's Tools

DOWNLOAD PDF
SELECT A NEW PART
56007
56007A
56008
92015
92015
92022
92072
92104
92104A
92106
92107
92110
92110A
92110B
92110C
92110D
92110E
92110F
92110G
92110H
92111
120
120A
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL-KIT 56007 56007-0134 1
TOOL-KIT 56007A 56007-0137 1
BAG,TOOL 56008 56008-006 1
NUT,WELL,5MM 92015 92015-1757 2
WASHER,5.2X13X1 92022 92022-1380 1
BAND,TOOL CASE 92072 92072-1219 1
GASKET-LIQUID,TB1211F,CLEAR 92104 92104-0004 1
GASKET-LIQUID,TB1216B,BLACK 92104A 92104-1064 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107 92107-1052 1
TOOL-WRENCH,HOOK,R61.5 92110 92110-0588 1
TOOL-WRENCH,ALLEN,10MM 92110A 92110-0589 1
TOOL-WRENCH,ALLEN,3MM 92110B 92110-0594 1
TOOL-WRENCH,ALLEN,6MM 92110C 92110-0596 1
TOOL-WRENCH,ALLEN,5MM 92110D 92110-0600 1
TOOL-WRENCH,ALLEN,4MM 92110E 92110-0602 1
TOOL-WRENCH,ALLEN,5MM 92110F 92110-0608 1
TOOL-WRENCH,ALLEN,5MM 92110G 92110-1015 1
TOOL-WRENCH,OPEN END,14X17 92110H 92110-1166 1
TOOL-BAR,EXTENSION 92111 92111-0009 1
BOLT-SOCKET,5X18 120 120CB0518 1
BOLT-SOCKET,5X20 120A 120CB0520 1
WASHER-PLAIN,5MM 411 411AB0500 1
