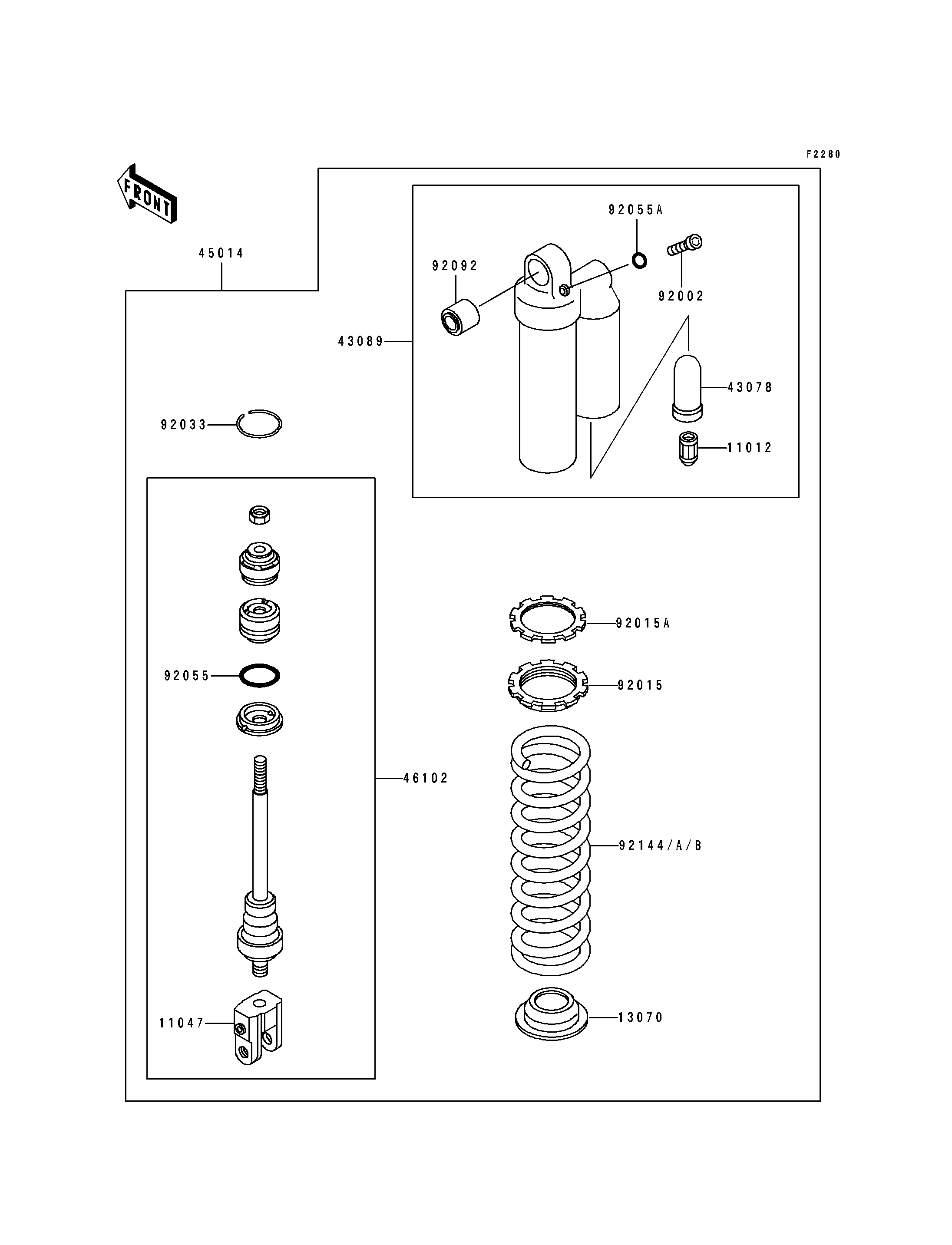

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,VALVE AIR 11012 11012-1391 1
BRACKET,PISTON ROD 11047 11047-1123 1
GUIDE,SPRING 13070 13070-1233 1
RESERVOIR,SHOCKABSORBER 43078 43078-1112 1
CYLINDER-SHOCKABSORBER 43089 43089-1130 1
SHOCKABSORBER 45014 45014-1484 1
ROD,SHOCKABSORBER 46102 46102-1292 1
BOLT,DRAIN 92002 92002-1955 1
NUT,SPRING ADJUST 92015 92015-1679 1
NUT,SPRING ADJUST LOCK 92015A 92015-1713 1
RING-SNAP,SHOCKABSORBER 92033 92033-1211 1
RING-O,ROD 92055 92055-1334 1
RING-O 92055A 92055-1383 1
BUSHING-RUBBER,SHOCKABSORBER 92092 92092-1016 1
SPRING,SHOCKABSORBER,K=4.8 92144 92144-1543 1
SPRING,SHOCKABSORBER,K=4.6 92144A 92144-1570 1 (OPTION)
SPRING,SHOCKABSORBER,K=5.0 92144B 92144-1571 1 (OPTION)
