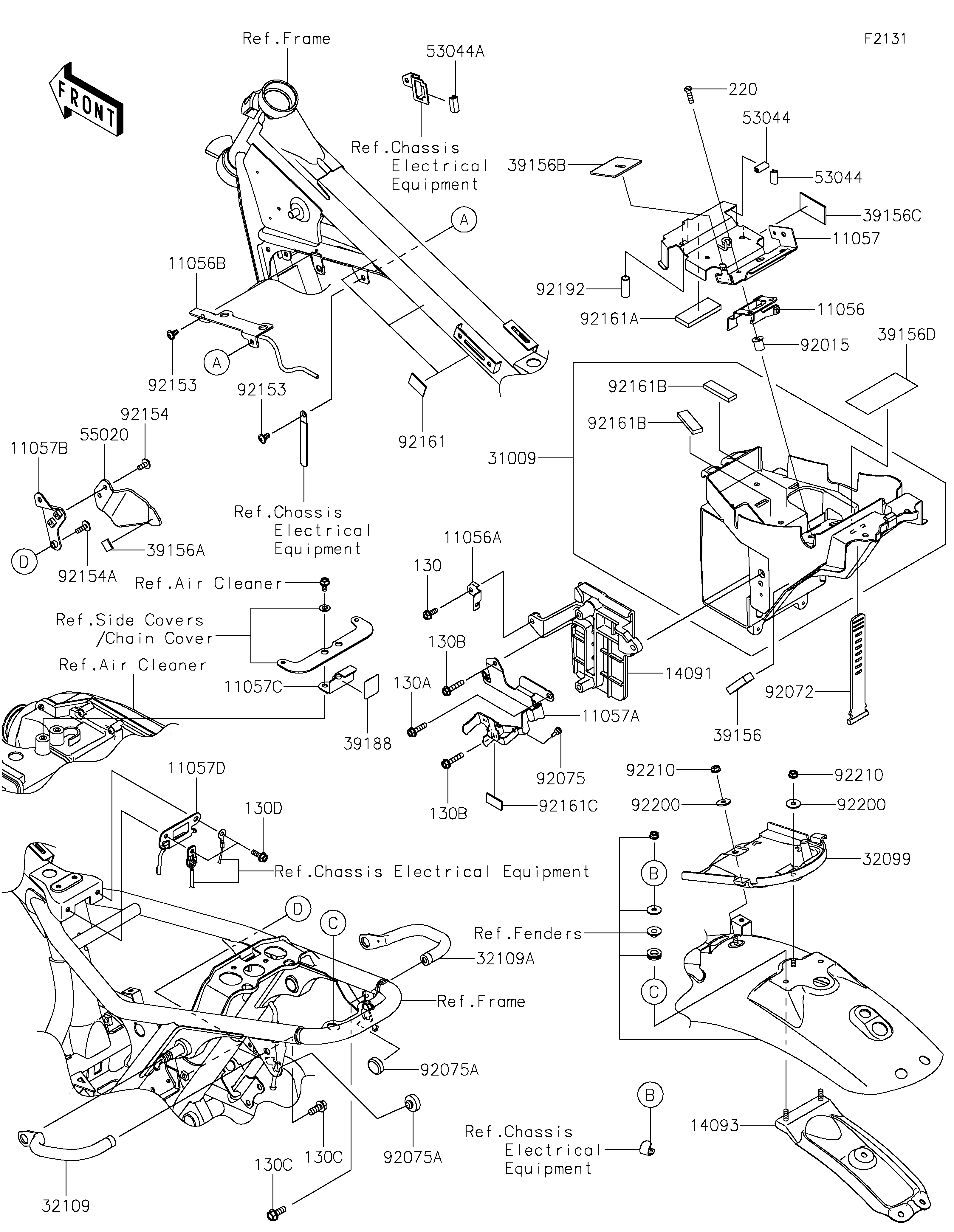

2019 W800 CAFE - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11056B
11056B
11057
11057
11057A
11057A
11057B
11057B
11057C
11057C
11057D
11057D
14091
14091
14093
14093
31009
31009
32099
32099
32109
32109
32109A
32109A
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39188
39188
53044
53044
53044
53044
53044A
53044A
55020
55020
92015
92015
92072
92072
92075
92075
92075A
92075A
92075A
92075A
92153
92153
92153
92153
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92192
92192
92200
92200
92200
92200
92210
92210
92210
92210
130
130
130A
130A
130B
130B
130B
130B
130C
130C
130C
130C
130D
130D
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,VEHICLE DOWN SENSOR 11056 11056-0557 1
BRACKET 11056A 11056-1274 1
BRACKET,IGNITION COIL 11056B 11056-1550 1
BRACKET,ECU 11057 11057-1859 1
BRACKET,JUNCTION BOX 11057A 11057-1863 1
BRACKET,BRAKE SWITCH 11057B 11057-2854 1
BRACKET,TANK,RR 11057C 11057-2995 1
BRACKET,TANK,RR 11057D 11057-2996 1
COVER,BATTERY 14091 14091-0297 1
COVER,RR HARNESS 14093 14093-0771 1
CASE-COMP-BATTERY 31009 31009-0008 1
CASE,U LOCK 32099 32099-0056 1
GRIP-FRAME,LH 32109 32109-0043 1
GRIP-FRAME,RH 32109A 32109-0044 1
PAD,10X50X15 39156 39156-1726 1
PAD,15X15X2 39156A 39156-2511 1
PAD,55X55X2 39156B 39156-2528 1
PAD,30X50X2 39156C 39156-2531 1
PAD,100X45X0.21 39156D 39156-2551 1
TAPE,27.5X31 39188 39188-0582 1
TRIM,L=22 53044 53044-0681 2
TRIM,L=22 53044A 53044-7503 1
GUARD,BRAKE SWITCH 55020 55020-2280 1
NUT 92015 92015-1700 2
BAND,TOOL 92072 92072-0149 1
DAMPER,6X10X15 92075 92075-1808 1
DAMPER,9X24X14 92075A 92075-281 2
BOLT,SOCKET,6X12 92153 92153-1617 2
BOLT,SOCKET,6X14 92154 92154-0907 2
BOLT,SOCKET,6X18 92154A 92154-2438 1
DAMPER,30X20X2 92161 92161-0833 3
DAMPER 92161A 92161-0903 1
DAMPER,15X50X6 92161B 92161-0905 2
DAMPER,15X30X2 92161C 92161-1394 1
TUBE,7X8X50 92192 92192-1005 1
WASHER,6.5X20X1.6 92200 92200-2231 2
NUT,FLANGED,6MM 92210 92210-1671 2
BOLT-FLANGED,6X16 130 130BA0616 1
BOLT-FLANGED,6X25 130A 130BA0625 1
BOLT-FLANGED,6X30 130B 130BA0630 2
BOLT-FLANGED,8X20 130C 130BA0820 2
BOLT-FLANGED,6X18 130D 130BB0618 2
SCREW-PAN-CROS,6X20 220 220AA0620 2
