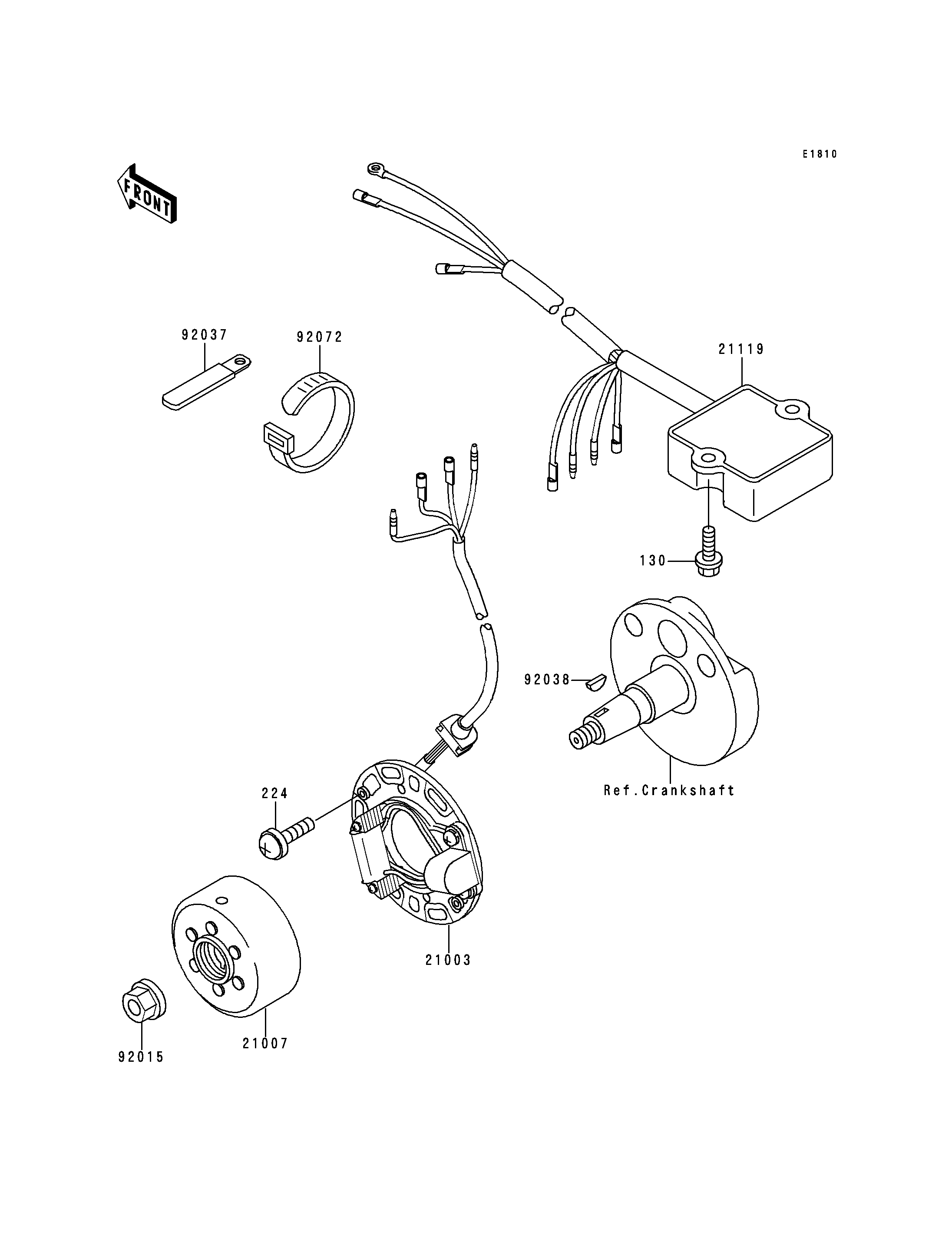

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130G0614 2
SCREW-PAN-WP-CROS 224 224B0614 2
STATOR 21003 21003-1261 1
ROTOR,MAGNETO 21007 21007-1239 1
IGNITER 21119 21119-1274 1
NUT,FLANGED,10MM 92015 92015-077 1
CLAMP,WIRING HARNESS 92037 92037-1069 1
KEY,WOODRUFF 92038 92038-001 1
BAND,L=123 92072 92072-030 1
