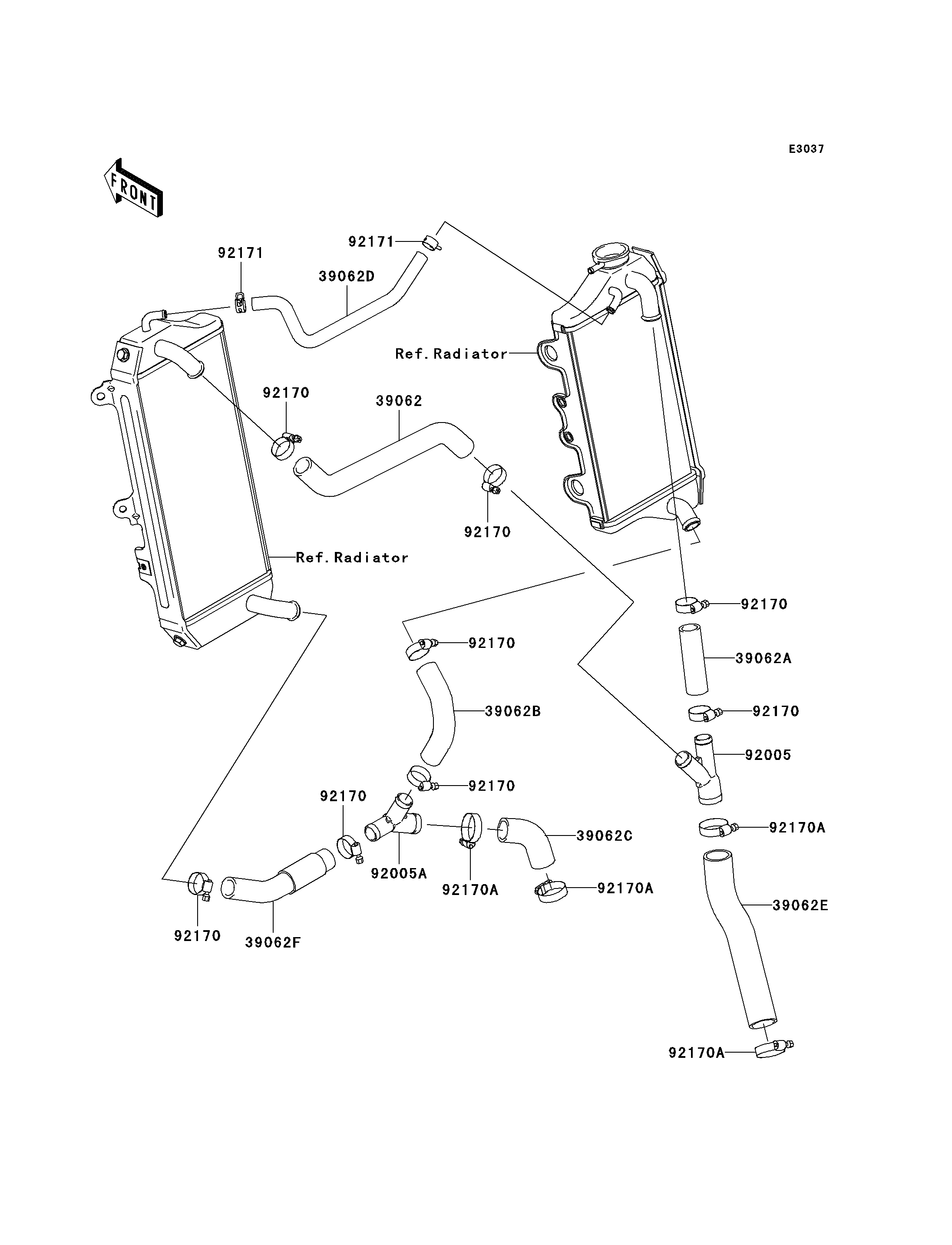

Parts Diagrams |
39062
39062A
39062B
39062C
39062D
39062E
39062F
92005
92005A
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92171
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOSE-COOLING,FIT.-RAD. LH UPP | 39062 | 39062-0084 | 1 | ||
| HOSE-COOLING,FIT.-RAD. RH UPP | 39062A | 39062-0085 | 1 | ||
| HOSE-COOLING,RAD.RH LOW-FIT. | 39062B | 39062-0087 | 1 | ||
| HOSE-COOLING,W/P-FIT. | 39062C | 39062-0088 | 1 | ||
| HOSE-COOLING,RAD. LH-RAD. RH | 39062D | 39062-0089 | 1 | ||
| HOSE-COOLING,HEAD-FIT. | 39062E | 39062-0216 | 1 | ||
| HOSE-COOLING,RAD.LH LOW-FIT. | 39062F | 39062-0224 | 1 | ||
| FITTING,3WAY,HEAD-RAD | 92005 | 92005-0066 | 1 | ||
| FITTING,3WAY,RAD-W/P | 92005A | 92005-0067 | 1 | ||
| CLAMP,HOSE,26MM | 92170 | 92170-1077 | 8 | ||
| CLAMP,HOSE,32MM | 92170A | 92170-1286 | 4 | ||
| CLAMP,CLIP,12.5MM | 92171 | 92171-0372 | 2 |
