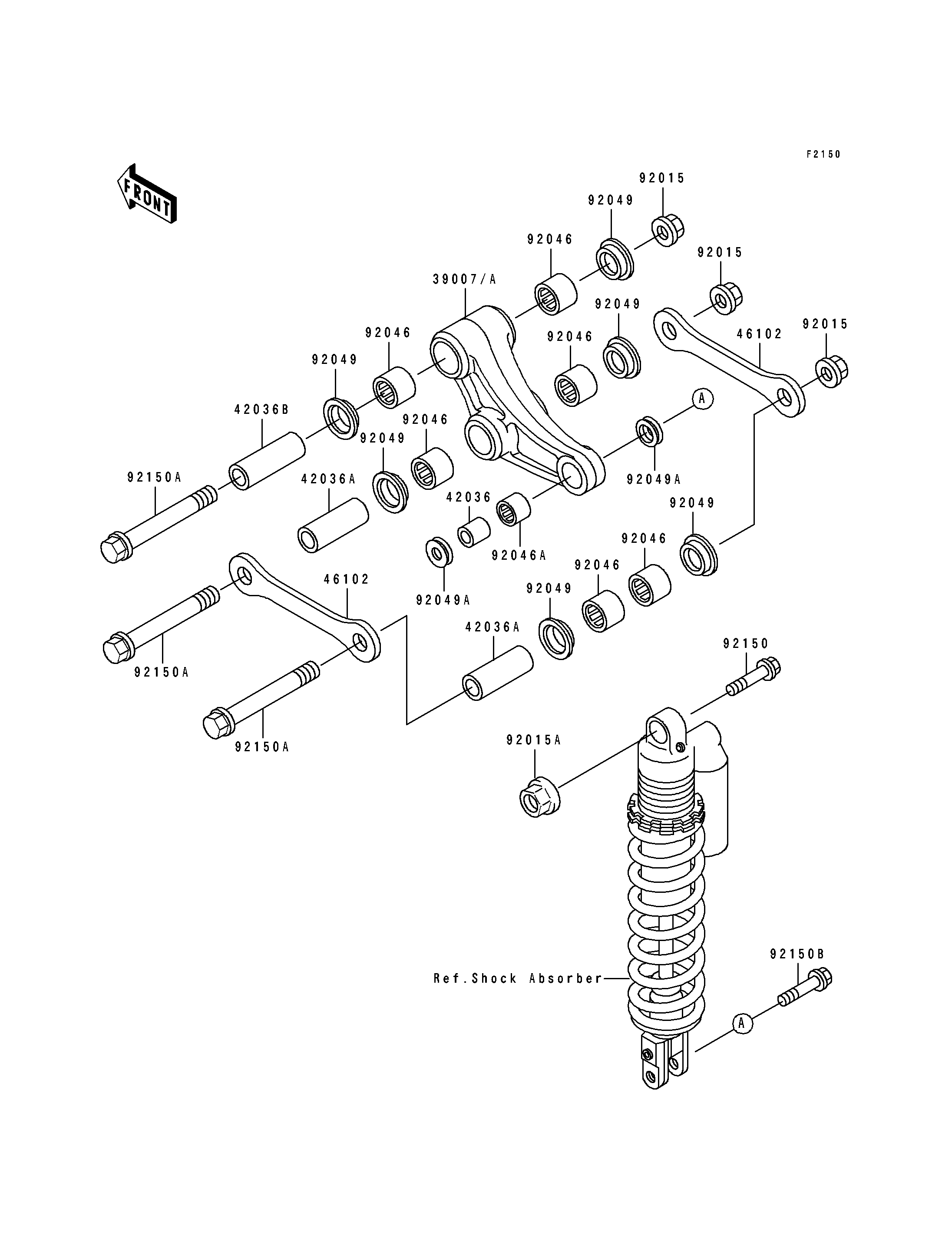

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1194 1
SLEEVE,10X16X19 42036 42036-1248 1
SLEEVE,12X18X57 42036A 42036-1273 2
SLEEVE,12X18X49 42036B 42036-1274 1
ROD,SUSPENSION 46102 46102-1291 2
NUT,FLANGED,12MM 92015 92015-1433 3
NUT,FLANGED,10MM 92015A 92015-1502 1
BEARING-NEEDLE,18BM2416 92046 92046-1144 6
BEARING-NEEDLE,16BM2212 92046A 92046-1192 1
SEAL-OIL 92049 92049-1328 6
SEAL-OIL 92049A 92049-1330 2
BOLT,FLANGED,10X57 92150 92150-1227 1
BOLT,FLANGED,12X83 92150A 92150-1412 3
BOLT,FLANGED,10X40 92150B 92150-1711 1
