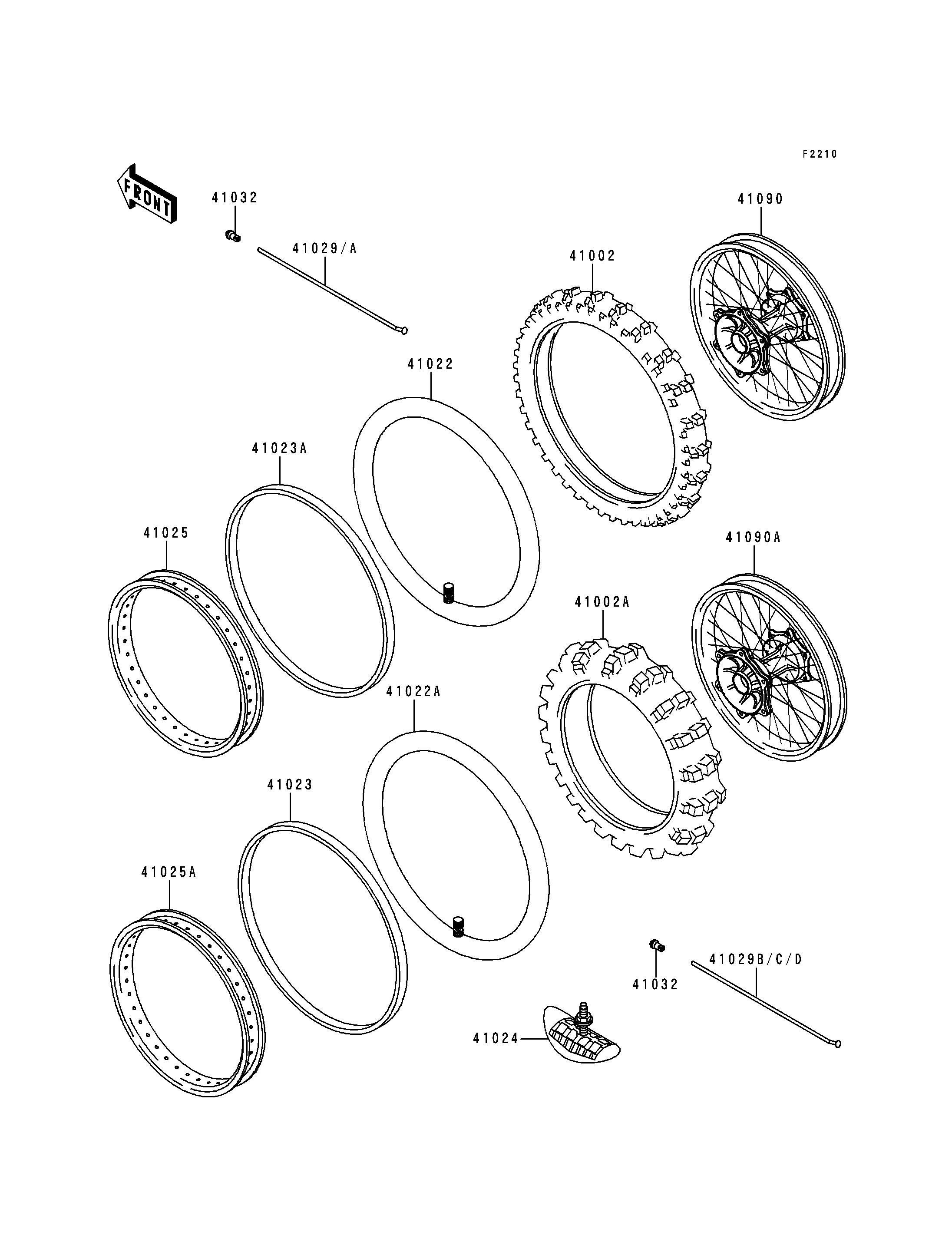

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE,FR,70/100-17 40M,K490(D) | 41002 | 41002-1574 | 1 | ||
TIRE,RR,90/100-14 49M,K695(D) | 41002A | 41002-1787 | 1 | ||
TUBE-TIRE,70/100-17(D) | 41022 | 41022-1124 | 1 | ||
TUBE-TIRE,90/100-14(D) | 41022A | 41022-1125 | 1 | ||
BAND-RIM,80/100-14(D) | 41023 | 41023-1068 | 1 | ||
BAND-RIM,100/90-17(D) | 41023A | 41023-1082 | 1 | ||
STOPPER-RIM,1.60-M(DUNLOP) | 41024 | 41024-010 | 1 | ||
RIM,FR,1.40X17EN6J | 41025 | 41025-1184 | 1 | ||
RIM,RR,1.60X14EN6J | 41025A | 41025-1185 | 1 | ||
SPOKE-INNER,FR,188MMX166D | 41029 | 41029-1113 | 14 | ||
SPOKE-INNER,FR,184MMX166D | 41029A | 41029-1114 | 14 | ||
SPOKE-INNER,RR,RH,156MMX168D | 41029B | 41029-1176 | 7 | ||
SPOKE-INNER,RR,RH,153MMX168D | 41029C | 41029-1177 | 7 | ||
SPOKE-INNER,RR,LH,158MMX172D | 41029D | 41029-1187 | 14 | ||
NIPPLE-SPOKE | 41032 | 41032-1057 | 56 | ||
WHEEL-SUB ASSY,FR | 41090 | 41090-1058 | 1 | (OPTION) | |
WHEEL-SUB ASSY,RR | 41090A | 41090-1077 | 1 | (OPTION) |
TIRE,FR,70/100-17 40M,K490(D) | |
REF # | 41002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,RR,90/100-14 49M,K695(D) | |
REF # | 41002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,70/100-17(D) | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,90/100-14(D) | |
REF # | 41022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,80/100-14(D) | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,100/90-17(D) | |
REF # | 41023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-RIM,1.60-M(DUNLOP) | |
REF # | 41024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,FR,1.40X17EN6J | |
REF # | 41025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,RR,1.60X14EN6J | |
REF # | 41025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,188MMX166D | |
REF # | 41029 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,184MMX166D | |
REF # | 41029A |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,RH,156MMX168D | |
REF # | 41029B |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,RH,153MMX168D | |
REF # | 41029C |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,LH,158MMX172D | |
REF # | 41029D |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
NIPPLE-SPOKE | |
REF # | 41032 |
---|---|
PART NUMBER | |
QUANTITY | 56 |
DESTINATION | |
REMARKS |
WHEEL-SUB ASSY,FR | |
REF # | 41090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
WHEEL-SUB ASSY,RR | |
REF # | 41090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
