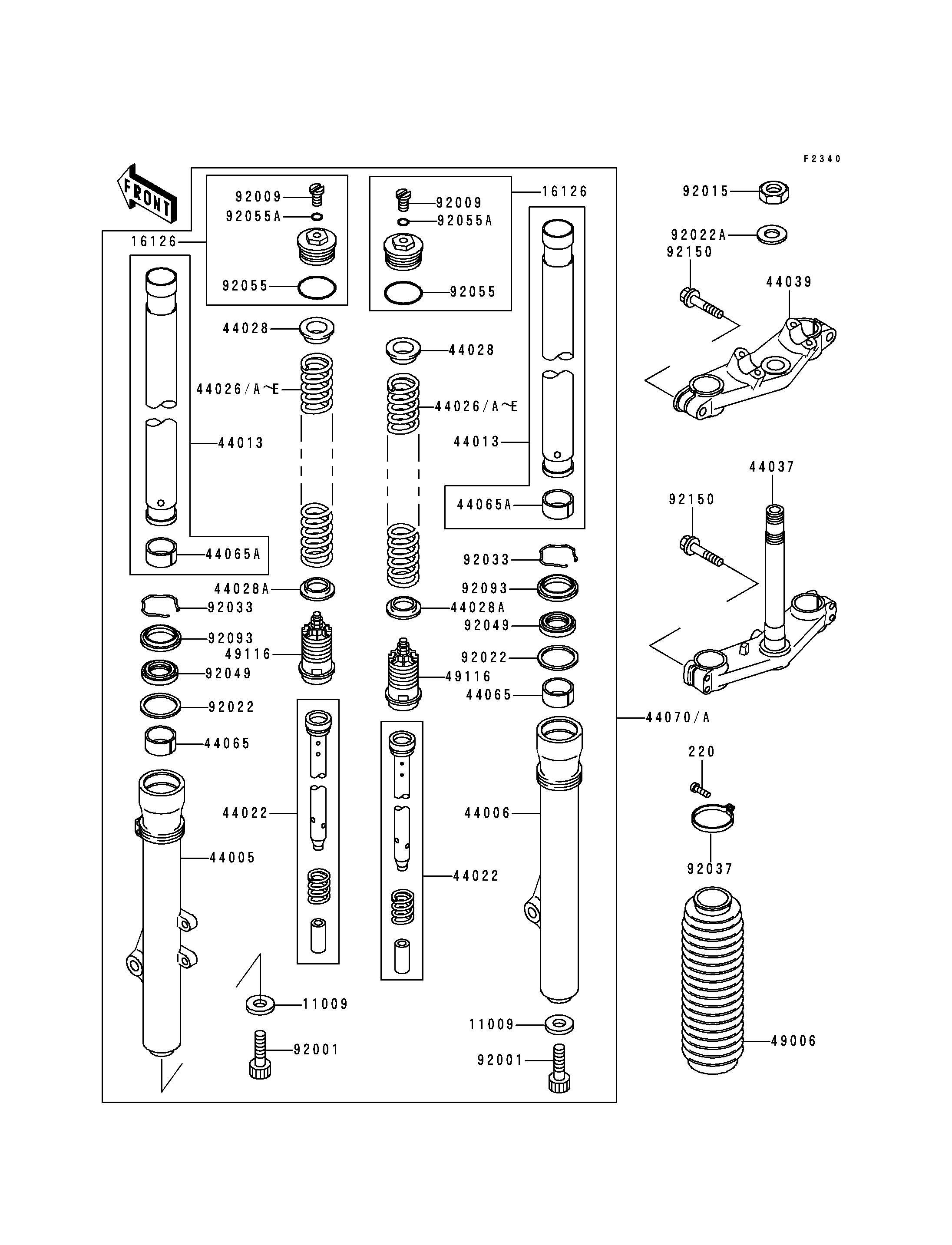

1997 KX80 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220C0416 2
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
VALVE,AIR 16126 16126-1265 2
PIPE-LEFT FORK OUTER 44005 44005-1314 1
PIPE-RIGHT FORK OUTER 44006 44006-1311 1
PIPE-FORK INNER 44013 44013-1360 2
CYLINDER-FORK 44022 44022-1271 2
SPRING-FRONT FORK,K=0.25 44026C 44026-1630 2 (OPTION)
SPRING-FRONT FORK,K=0.26 44026D 44026-1631 2
SPRING-FRONT FORK,K=0.27 44026E 44026-1632 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1059 2
GUIDE-FORK SPRING 44028A 44028-1068 2
HOLDER-FORK UNDER 44037 44037-1293 1
HOLDER-FORK UPPER 44039 44039-1220 1
BUSHING-FRONT FORK 44065 44065-1106 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1107 2
DAMPER-ASSY,FORK 44070A 44070-1545 1
BOOT,FORK,VIOLET 49006 49006-1273-VW 2
VALVE-ASSY,FORK 49116 49116-1098 2
BOLT,FORK CYLINDER 92001 92001-1309 2
SCREW 92009 92009-1568 2
NUT,STEERING STEM,22MM 92015 92015-1653 1
WASHER 92022 92022-1242 2
WASHER,STEERING STEM 92022A 92022-1873 1
RING-SNAP,FORK 92033 92033-1047 2
CLAMP,BOOT,BLACK 92037 92037-1321 2
SEAL-OIL,FRONT FORK 92049 92049-1180 2
RING-O,FORK TOP CAP 92055 92055-1050 2
RING-O 92055A 92055-1441 2
SEAL,FRONT FORK 92093 92093-1166 2
BOLT,FLANGED,8X35 92150 92150-1499 6
