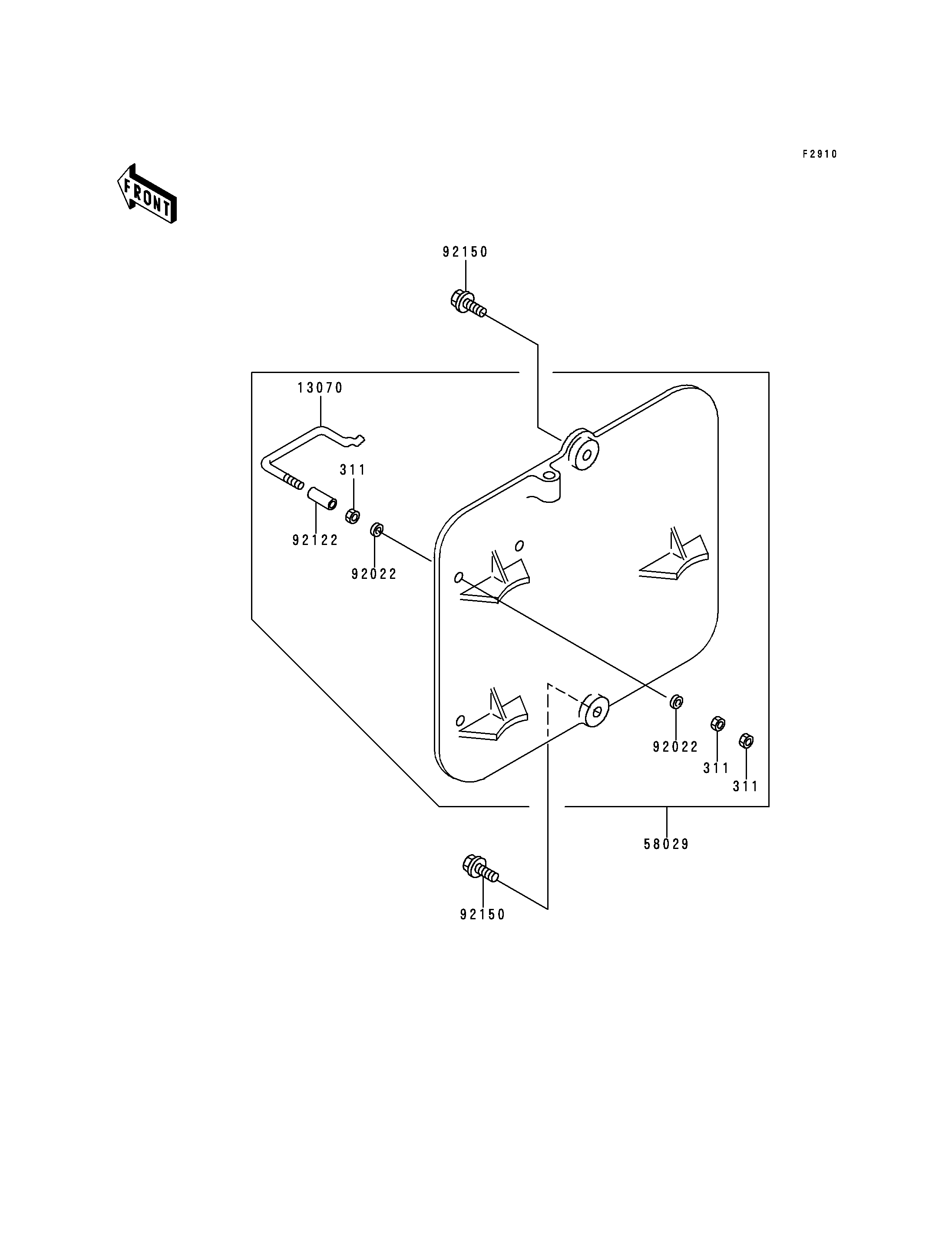

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311B0300 6
GUIDE,CABLE 13070 13070-1031 2
PLATE-NUMBER,P.WHITE 58029 58029-1075-6F 1
WASHER 92022 92022-1780 4
ROLLER,CABLE GUIDE 92122 92122-1011 2
BOLT,6X14 92150 92150-1340 2
