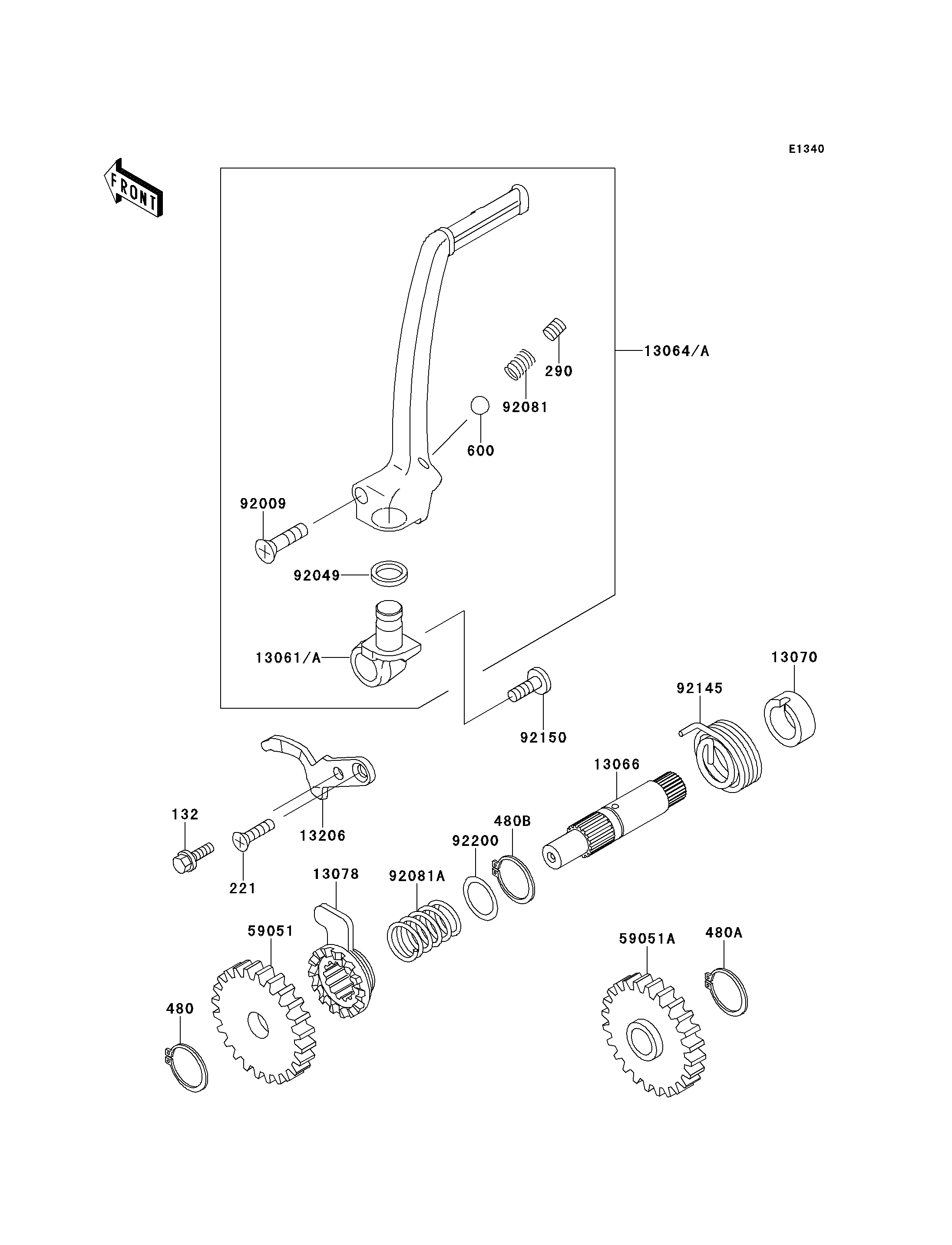

1998 KX80 - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
132
221
290
480
480A
480B
600
13061
13064
13066
13070
13078
13206
59051
59051A
92009
92049
92081
92081A
92145
92150
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0616 1
SCREW-CSK-CROS,6X18 221 221B0618 1
SCREW-SET-SOCKET 290 290P0808 1
CIRCLIP-TYPE-C,12MM 480 480J1200 1
CIRCLIP-TYPE-C,15MM 480A 480J1500 1
CIRCLIP-TYPE-C,16MM 480B 480J1600 1
BALL-STEEL,1/4" 600 600A0800 1
BOSS,KICK PEDAL 13061 13061-1622 1
LEVER-ASSY-KICK,PEDAL 13064 13064-1182 1
SHAFT-KICK 13066 13066-1097 1
GUIDE 13070 13070-1314 1
RATCHET 13078 13078-1004 1
GUIDE-KICK 13206 13206-1066 1
GEAR-SPUR,32T 59051 59051-1026 1
GEAR-SPUR,31T,KICK 59051A 59051-1147 1
SCREW,6X27 92009 92009-1607 1
SEAL-OIL,SR12162.5 92049 92049-1468 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING 92145 92145-1058 1
BOLT,SOCKET,6X16 92150 92150-1673 1
WASHER,KICKSHAFT 92200 92200-1209 1
