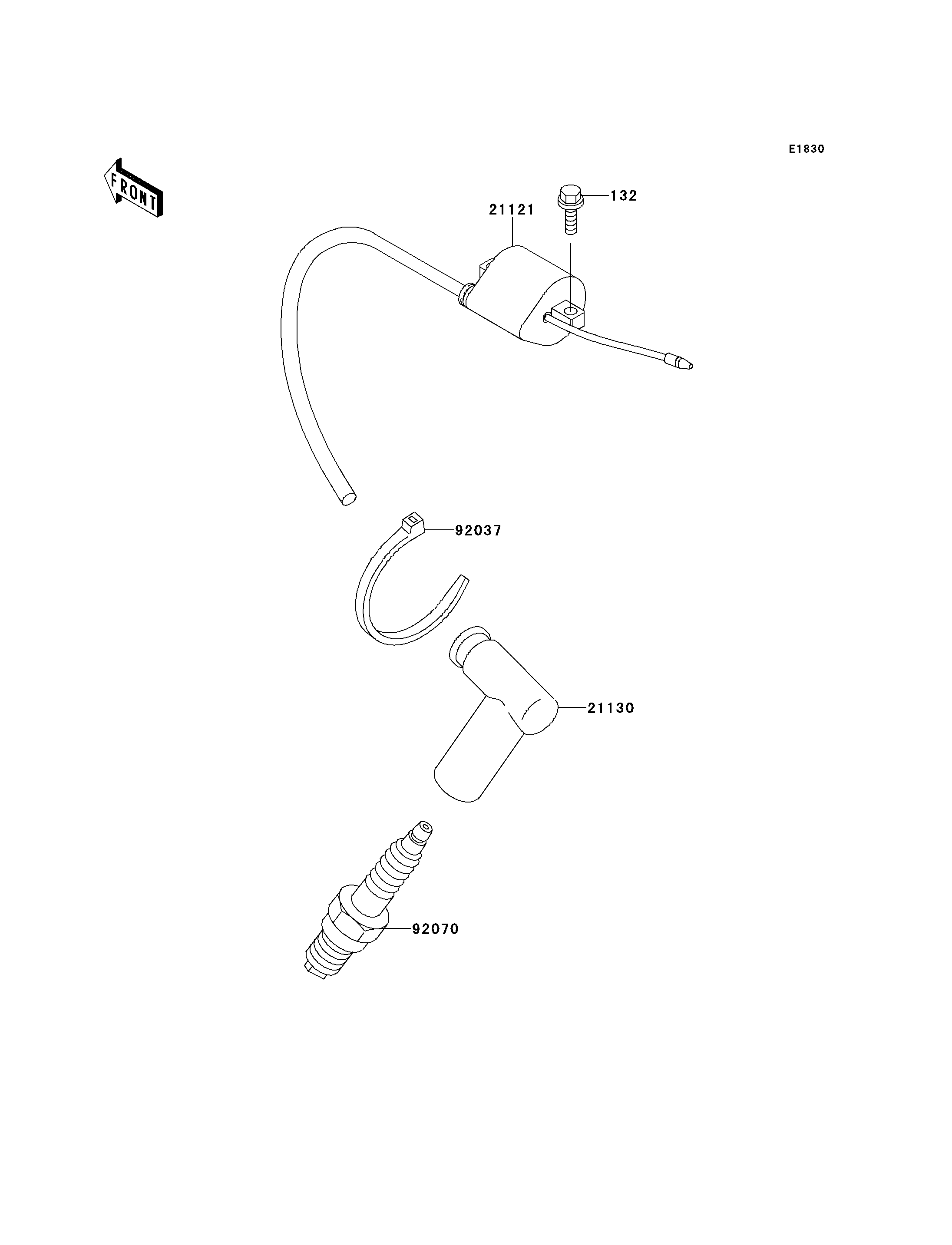

132
21121
21130
92037
92070
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0616 2
COIL-IGNITION 21121 21121-1205 1
CAP-SPARK PLUG 21130 21130-1062 1
CLAMP 92037 92037-1173 1
PLUG-SPARK,R6252K-105NGK,SOLID 92070 92070-1241 1
