Parts Diagrams |

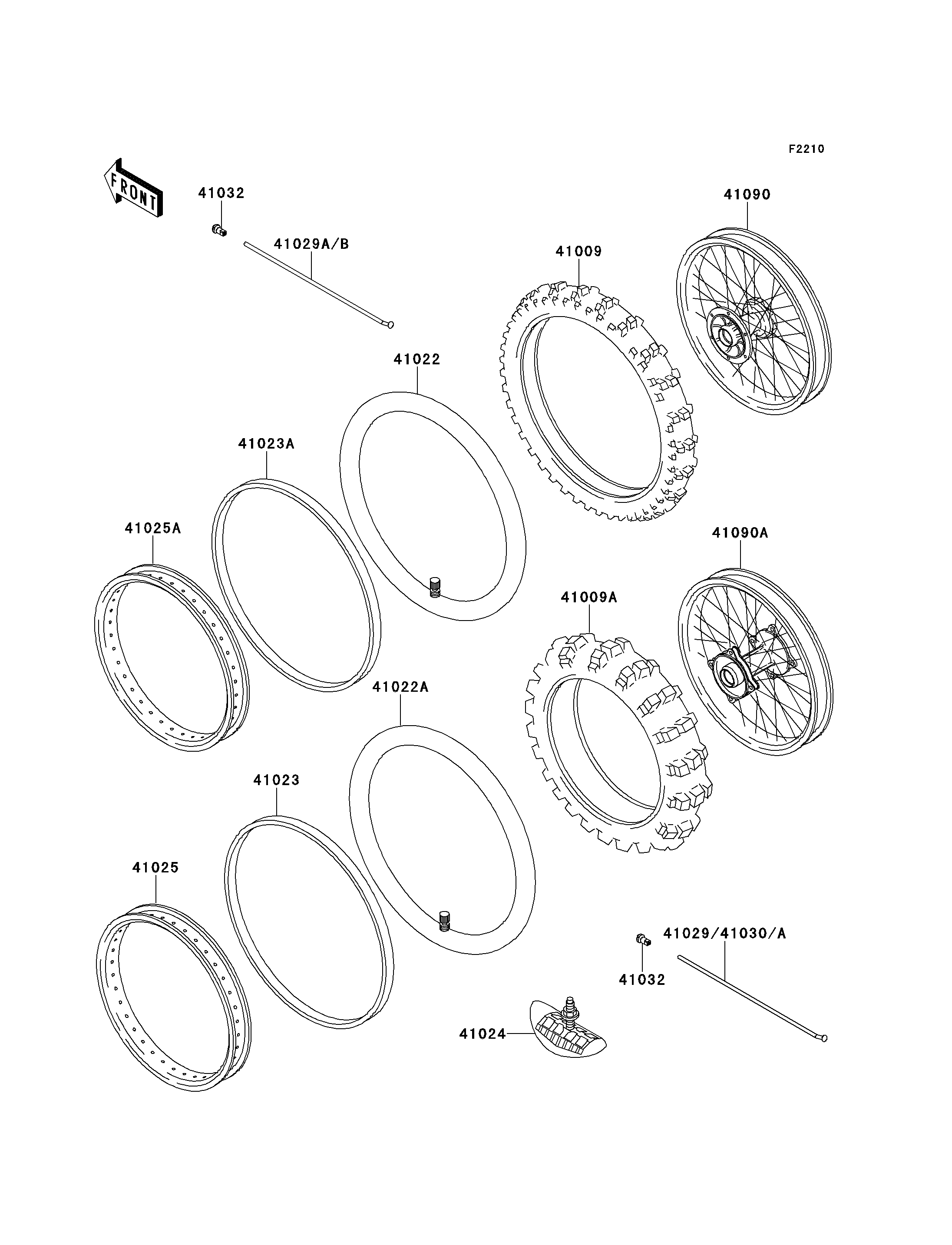

41009
41009A
41022
41022A
41023
41023A
41024
41025
41025A
41029
41029A
41029B
41030
41030A
41032
41032
41090
41090A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE,FR,70/100-17,D737F(D) | 41009 | 41009-1205 | 1 | ||
TIRE,RR,90/100-14,D737(D) | 41009A | 41009-1206 | 1 | ||
TUBE-TIRE,70/100-17(D) | 41022 | 41022-1124 | 1 | ||
TUBE-TIRE,90/100-14(D) | 41022A | 41022-1125 | 1 | ||
BAND-RIM,80/100-14(D) | 41023 | 41023-1068 | 1 | ||
BAND-RIM,100/90-17(D) | 41023A | 41023-1082 | 1 | ||
STOPPER-RIM,1.60-M(DUNLOP) | 41024 | 41024-010 | 1 | ||
RIM,RR,1.60X14 | 41025 | 41025-1345 | 1 | ||
RIM,FR,1.40X17 | 41025A | 41025-1357 | 1 | ||
SPOKE-INNER,RR,157MMX170D | 41029 | 41029-1274 | 14 | ||
SPOKE-INNER,FR,RH,187MMX166D | 41029A | 41029-1290 | 14 | ||
SPOKE-INNER,FR,LH,183MMX166D | 41029B | 41029-1291 | 14 | ||
SPOKE-OUTER,RR,RH,149MMX172D | 41030 | 41030-1150 | 7 | ||
SPOKE-OUTER,RR,LH,153MMX172D | 41030A | 41030-1160 | 7 | ||
NIPPLE-SPOKE | 41032 | 41032-1054 | 56 | ||
WHEEL-SUB ASSY,FR | 41090 | 41090-1109 | 1 | (OPTION) | |
WHEEL-SUB ASSY,RR | 41090A | 41090-1110 | 1 | (OPTION) |
TIRE,FR,70/100-17,D737F(D) | |
REF # | 41009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,RR,90/100-14,D737(D) | |
REF # | 41009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,70/100-17(D) | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,90/100-14(D) | |
REF # | 41022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,80/100-14(D) | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,100/90-17(D) | |
REF # | 41023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-RIM,1.60-M(DUNLOP) | |
REF # | 41024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,RR,1.60X14 | |
REF # | 41025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,FR,1.40X17 | |
REF # | 41025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,157MMX170D | |
REF # | 41029 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,RH,187MMX166D | |
REF # | 41029A |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,LH,183MMX166D | |
REF # | 41029B |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SPOKE-OUTER,RR,RH,149MMX172D | |
REF # | 41030 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
SPOKE-OUTER,RR,LH,153MMX172D | |
REF # | 41030A |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
NIPPLE-SPOKE | |
REF # | 41032 |
---|---|
PART NUMBER | |
QUANTITY | 56 |
DESTINATION | |
REMARKS |
WHEEL-SUB ASSY,FR | |
REF # | 41090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
WHEEL-SUB ASSY,RR | |
REF # | 41090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
