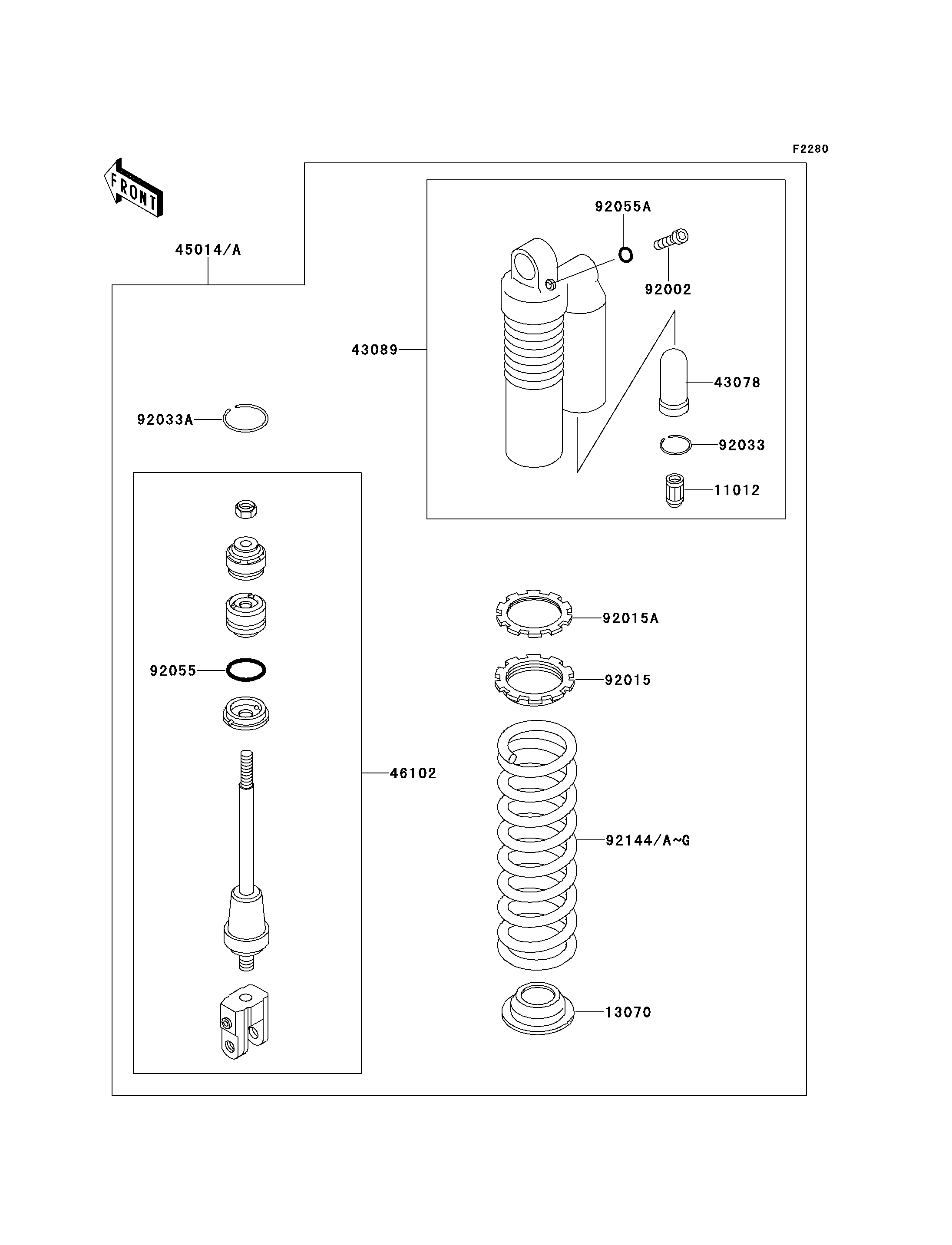

Parts Diagrams |
11012
13070
43078
43089
45014
46102
92002
92015
92015A
92033
92033A
92055
92055A
92144
92144B
92144D
92144F
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,VALVE AIR | 11012 | 11012-1391 | 1 | ||
GUIDE,SPRING | 13070 | 13070-1233 | 1 | ||
RESERVOIR,SHOCKABSORBER | 43078 | 43078-1112 | 1 | ||
CYLINDER-SHOCKABSORBER | 43089 | 43089-1162 | 1 | ||
SHOCKABSORBER,J.S.VIOLET | 45014 | 45014-1662-45 | 1 | ||
ROD,SHOCKABSORBER | 46102 | 46102-1411 | 1 | ||
BOLT,DRAIN | 92002 | 92002-1955 | 1 | ||
NUT,SPRING ADJUST | 92015 | 92015-1679 | 1 | ||
NUT,SPRING ADJUST LOCK | 92015A | 92015-1713 | 1 | ||
RING-SNAP,REARSHOCK | 92033 | 92033-1091 | 1 | ||
RING-SNAP,SHOCKABSORBER | 92033A | 92033-1211 | 1 | ||
RING-O,ROD | 92055 | 92055-1334 | 1 | ||
RING-O | 92055A | 92055-1383 | 1 | ||
SPRING,SHOCKABSORBER,K=4.4,VIO | 92144 | 92144-1487-45 | 1 | (OPTION) | |
SPRING,SHOCKABSORBER,K=4.6,VIO | 92144B | 92144-1570-45 | 1 | (OPTION) | |
SPRING,SHOCKABSORBER,K=5.0,VIO | 92144D | 92144-1571-45 | 1 | (OPTION) | |
SPRING,SHOCKABSORBER,K=4.8,VIO | 92144F | 92144-1945-45 | 1 |
CAP,VALVE AIR | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR,SHOCKABSORBER | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-SHOCKABSORBER | |
REF # | 43089 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHOCKABSORBER,J.S.VIOLET | |
REF # | 45014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,SHOCKABSORBER | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,DRAIN | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,SPRING ADJUST | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,SPRING ADJUST LOCK | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,REARSHOCK | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,SHOCKABSORBER | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,ROD | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,SHOCKABSORBER,K=4.4,VIO | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPRING,SHOCKABSORBER,K=4.6,VIO | |
REF # | 92144B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPRING,SHOCKABSORBER,K=5.0,VIO | |
REF # | 92144D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPRING,SHOCKABSORBER,K=4.8,VIO | |
REF # | 92144F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
