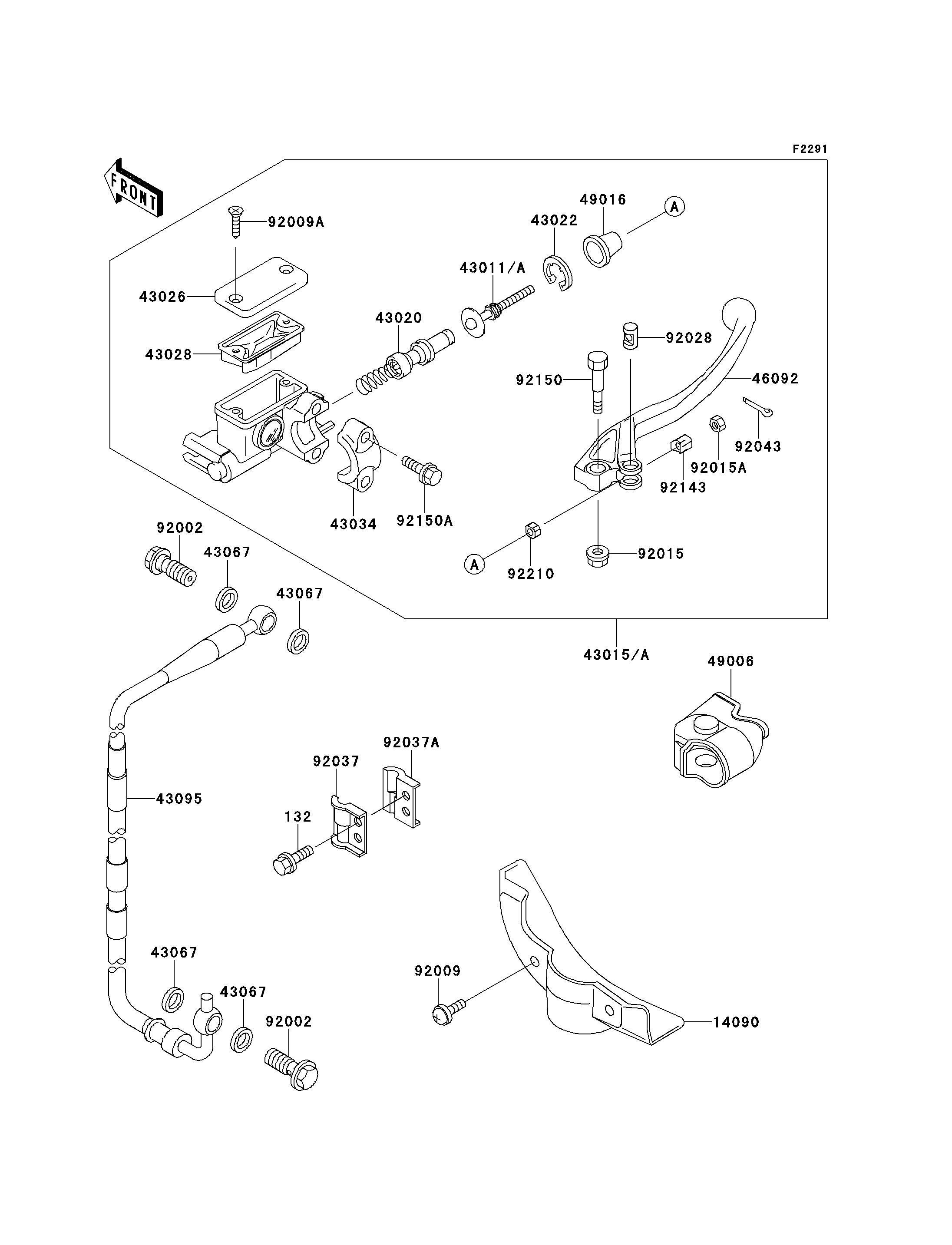

1998 KX80 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
14090
43011
43015
43020
43022
43026
43028
43034
43067
43067
43067
43067
43095
46092
49006
49016
92002
92002
92009
92009A
92015
92015A
92028
92037
92037A
92043
92143
92150
92150A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0616 2
COVER,BRAKE HOSE,WHITE 14090 14090-1860-RZ 1
ROD-BRAKE,FR MASTER CYLINDER 43011 43011-1166 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1594 1
PISTON-COMP-BRAKE 43020 43020-1115 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1075 1
DIAPHRAGM 43028 43028-1067 1
HOLDER-BRAKE 43034 43034-1110 1
WASHER,10.5X15X1.5 43067 43067-001 4
HOSE-BRAKE,FR 43095 43095-1091 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1191 1
BOOT,FRONT BRAKE LEVER 49006 49006-1286 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,OIL,L=23 92002 92002-1888 2
SCREW,6X14,WHITE 92009 92009-1287 2
SCREW,4MM 92009A 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
NUT,ADJUST 92015A 92015-1642 1
BUSHING 92028 92028-1792 1
CLAMP,BRAKE HOSE,OUTSIDE 92037 92037-1362 1
CLAMP,BRAKE HOSE,INSIDE 92037A 92037-1363 1
PIN 92043 92043-1539 1
COLLAR 92143 92143-1882 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT 92150A 92150-1452 2
NUT,ADJUST 92210 92210-1064 1
