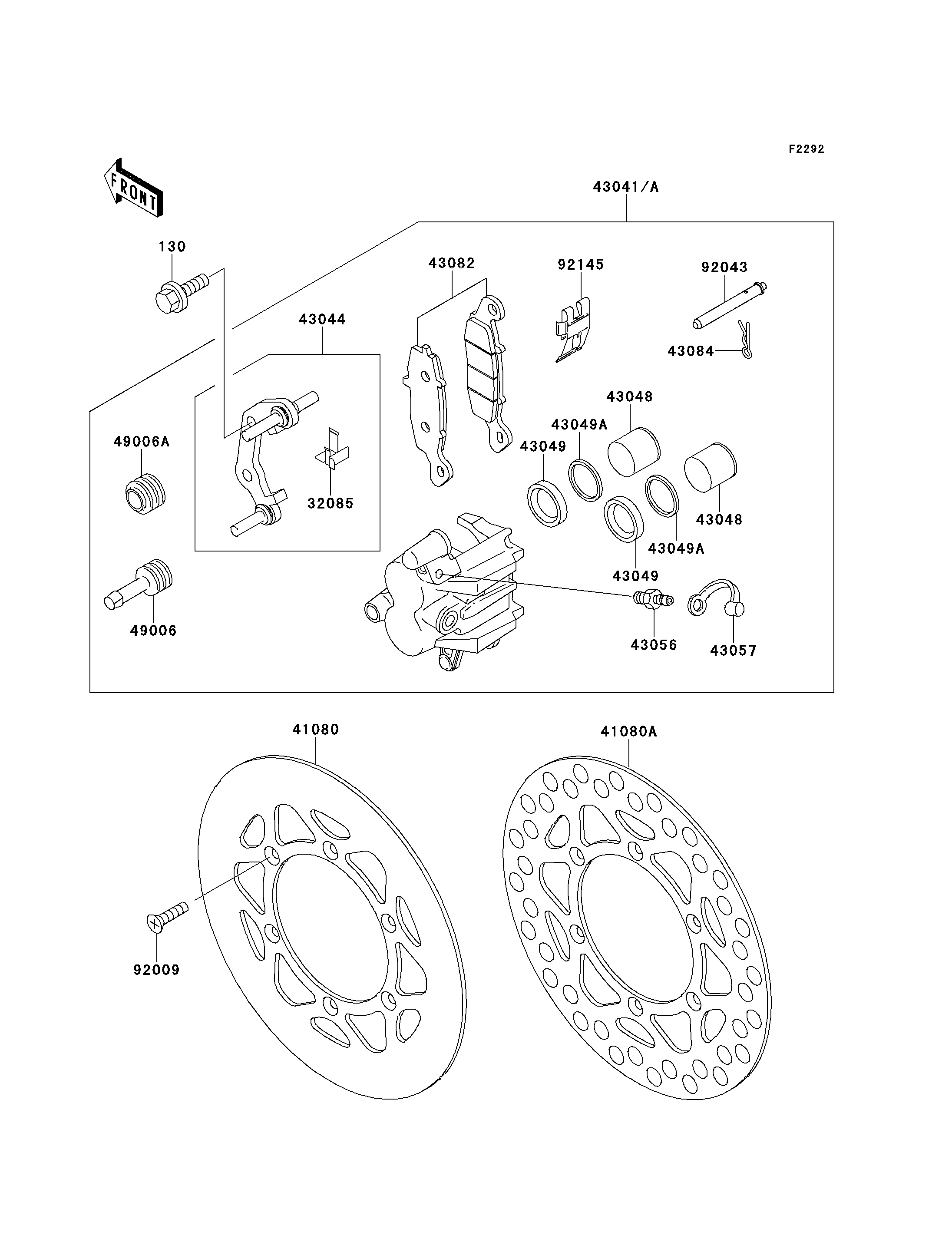

1998 KX80 - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
130
32085
41080
41080A
43041
43044
43048
43048
43049
43049
43049A
43049A
43056
43057
43082
43084
49006
49006A
92009
92043
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0840 2
STOPPER 32085 32085-1437 1
DISC,FR 41080 41080-1330 1 (OPTION)
DISC,FR 41080A 41080-1335 1
CALIPER-ASSY,FR,LH,BLACK 43041 43041-1618 1
HOLDER-COMP-CALIPER,FR 43044 43044-1119 1
PISTON-CALIPER 43048 43048-1083 2
PACKING,PISTON 43049 43049-1058 2
PACKING,PISTON 43049A 43049-1059 2
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1196 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1055 1
SCREW,6X10 92009 92009-1375 6
PIN,PAD 92043 92043-1356 1
SPRING,PAD 92145 92145-1260 1
