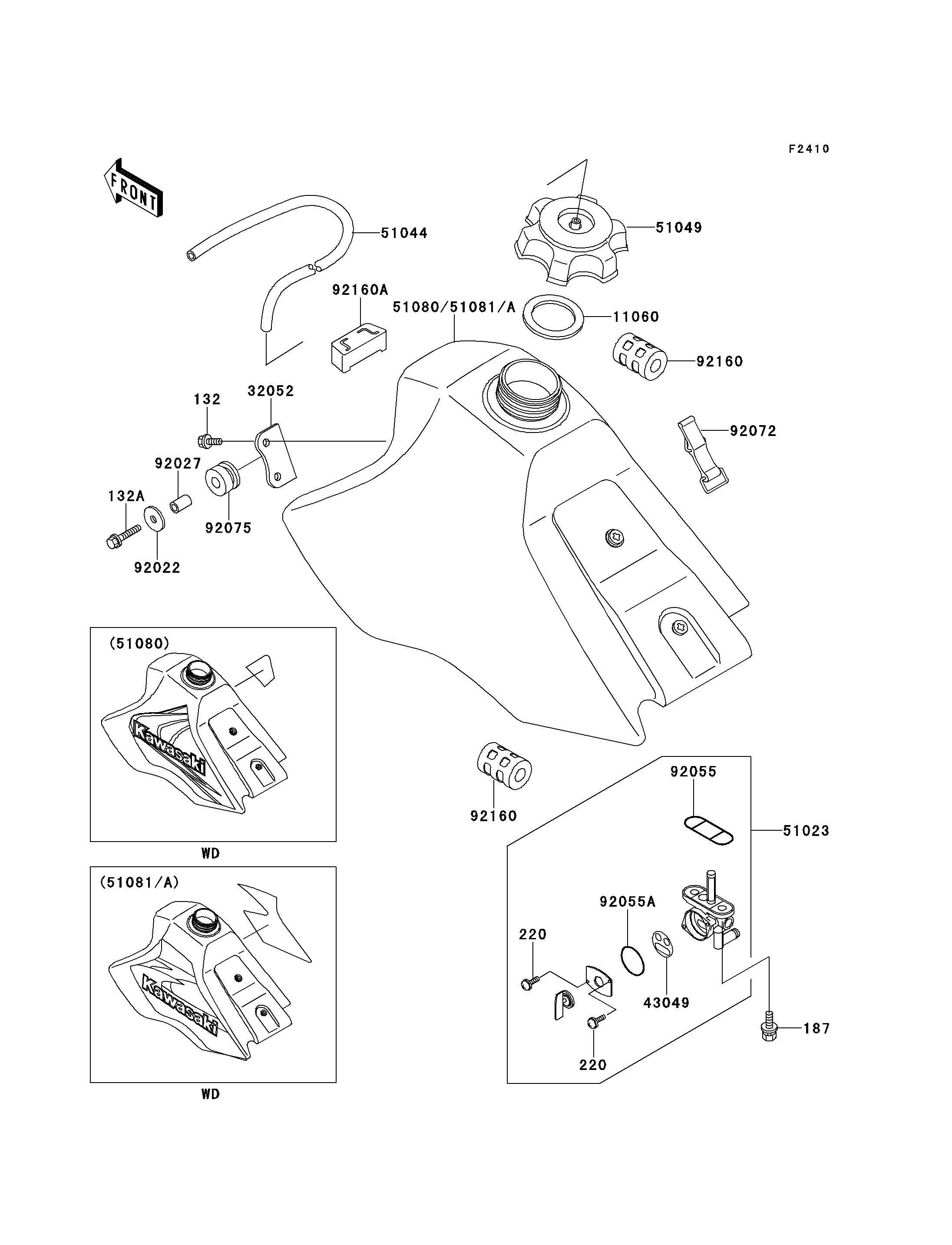

1998 KX80 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132A
187
220
220
11060
32052
43049
51023
51044
51049
51080
92022
92027
92055
92055A
92072
92075
92160
92160
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 2
BOLT-FLANGED-SMALL 132A 132G0630 1
BOLT-UPSET-WSP 187 187B0616 2
SCREW-PAN-CROS 220 220B0308 2
GASKET,FUEL TANK CAP 11060 11060-1340 1
BRACKET-TANK 32052 32052-1169 1
PACKING,TAP VALVE 43049 43049-1066 1
TAP-ASSY,FUEL 51023 51023-1232 1
TUBE-ASSY 51044 51044-1185 1
CAP-TANK,FUEL 51049 51049-1108 1
TANK-COMP-FUEL,L.GREEN 51080 51080-5427-6W 1
WASHER,6.5X24X2 92022 92022-1690 1
COLLAR,6.8X10X17 92027 92027-1833 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-1660 1
DAMPER,FUEL TANK 92160 92160-1236 2
DAMPER 92160A 92160-1255 1
