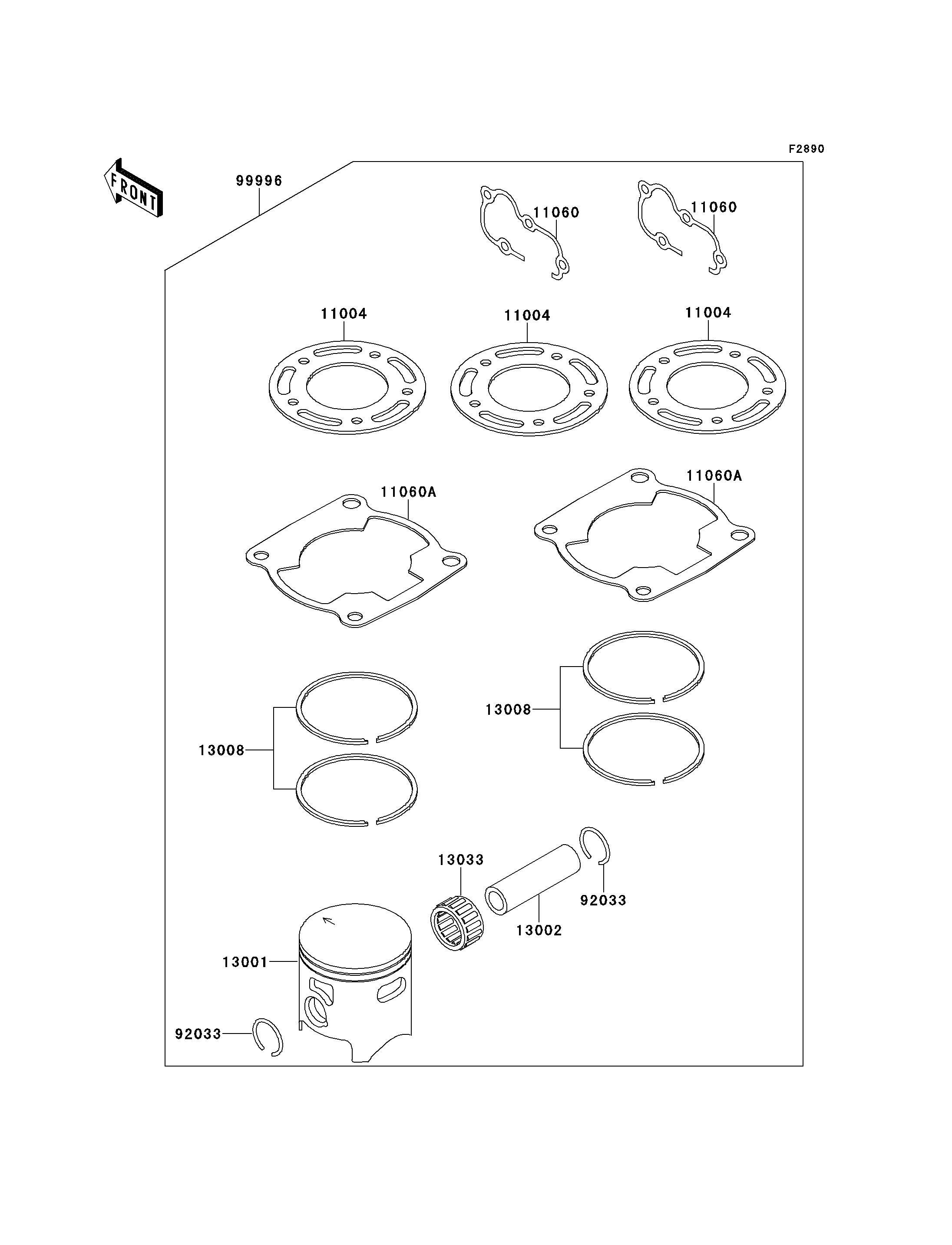

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1213 3
GASKET,GOVERNOR COVER 11060 11060-1778 2
GASKET,CYLINDER BASE 11060A 11060-1779 2
PISTON-ENGINE 13001 13001-1497 1
PIN-PISTON 13002 13002-1079 1
RING-SET-PISTON 13008 13008-1100 2
BEARING-SMALL END,14R1818AP-1 13033 13033-1053 1
RING-SNAP 92033 92033-1050 2
KIT,ENGINE TOP END,KX80-W/Y 99996 99996-1238 1
