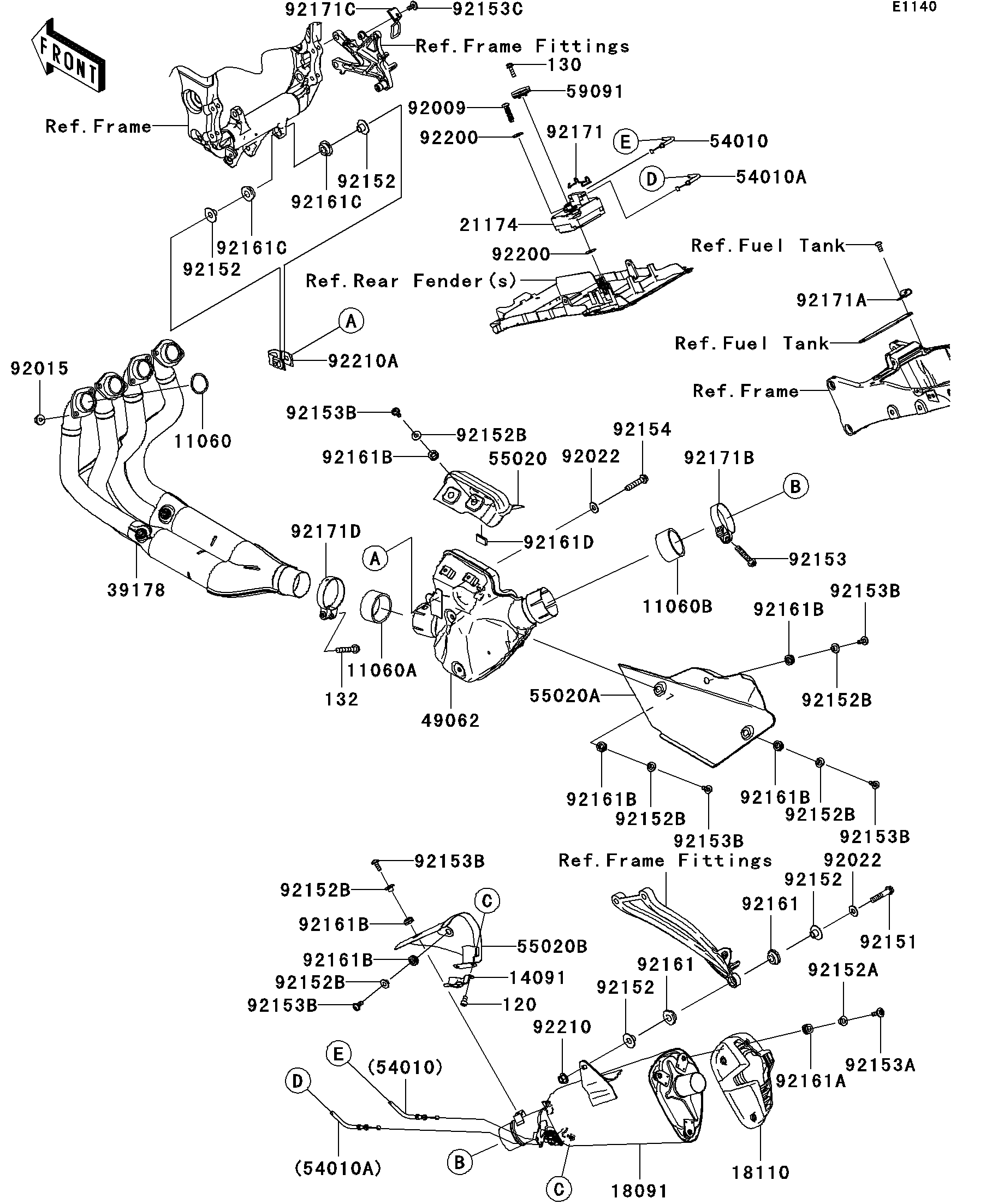

2008 Ninja® ZX™-10R - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060A
11060A
11060B
11060B
14091
14091
18091
18091
18110
18110
21174
21174
39178
39178
49062
49062
54010
54010
54010A
54010A
55020
55020
55020A
55020A
55020B
55020B
59091
59091
92009
92009
92015
92015
92022
92022
92022
92022
92151
92151
92152
92152
92152
92152
92152
92152
92152
92152
92152A
92152A
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153C
92153C
92154
92154
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161C
92161C
92161C
92161C
92161D
92161D
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171D
92171D
92200
92200
92200
92200
92210
92210
92210A
92210A
120
120
130
130
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE HOLDER 11060 11060-1103 4
GASKET,MUFFLER CONNECTING 11060A 11060-1376 1
GASKET 11060B 11060-1971 1
COVER,PULLEY 14091 14091-0915 1
BODY-COMP-MUFFLER 18091 18091-0549 1
BODY END-MUFFLER 18110 18110-0103 1
MOTOR-ELECTRIC 21174 21174-0003 1
MANIFOLD-COMP-EXHAUST 39178 39178-0118 1
PIPE-COMP-EXHAUST 49062 49062-0040 1
CABLE,OPEN,WHITE 54010 54010-0105 1
CABLE,CLOSE,BLACK 54010A 54010-0106 1
GUARD,HEAT 55020 55020-0467 1
GUARD,EX CHAMBER 55020A 55020-0468 1
GUARD,JOINT PIPE 55020B 55020-0488 1
PULLEY 59091 59091-0007 1
SCREW,TAPPING,6X30 92009 92009-1481 2
NUT,8MM 92015 92015-1402 8
WASHER,8.5X19X1.2 92022 92022-3730 2
BOLT,FLANGED,8X40 92151 92151-1532 1
COLLAR 92152 92152-0188 4
COLLAR 92152A 92152-0237 3
COLLAR 92152B 92152-0286 7
BOLT,8X45 92153 92153-0702 1
BOLT,6X18 92153A 92153-0816 3
BOLT,SOCKET,6X16 92153B 92153-0817 7
BOLT,SOCKET,6X12 92153C 92153-1948 1
BOLT,FLANGED,8X40 92154 92154-0080 1
DAMPER 92161 92161-0135 2
DAMPER 92161A 92161-0204 3
DAMPER 92161B 92161-0308 7
DAMPER,MUFFLER MOUNT 92161C 92161-0658 2
DAMPER 92161D 92161-1228 1
CLAMP 92171 92171-0292 1
CLAMP 92171A 92171-0652 1
CLAMP,64.5MM 92171B 92171-1668 1
CLAMP 92171C 92171-1871 1
CLAMP 92171D 92171-1875 1
WASHER 92200 92200-0078 4
NUT,8MM 92210 92210-0121 1
NUT 92210A 92210-0481 1
BOLT-SOCKET,6X10 120 120CB0610 2
BOLT-FLANGED,5X18 130 130BB0518 1
BOLT-FLANGED-SMALL,8X30 132 132BC0830 1
