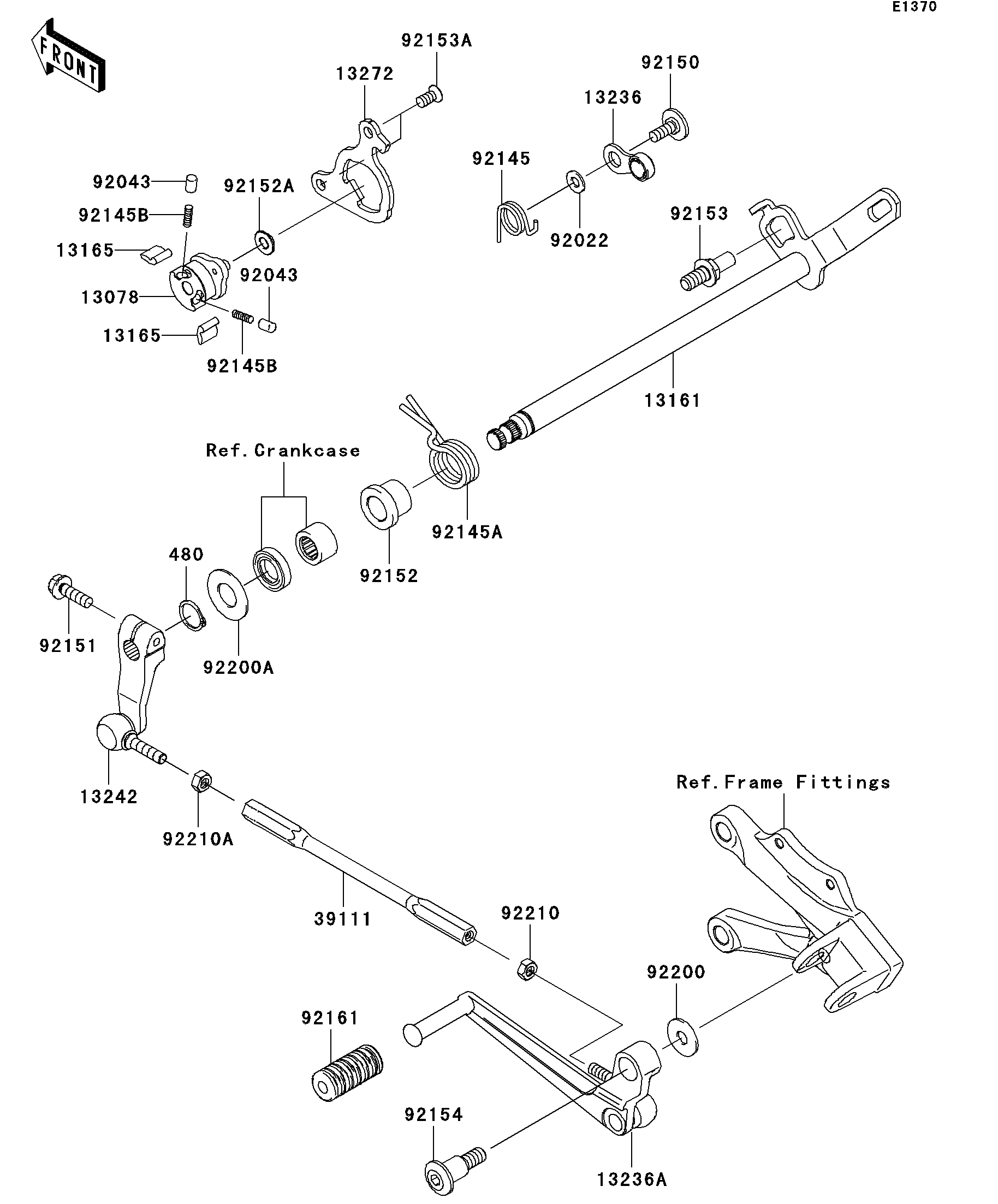

2008 Ninja® ZX™-10R - Gear Change Mechanism
13078
13161
13165
13165
13236
13236A
13242
13272
39111
92022
92043
92043
92145
92145A
92145B
92145B
92150
92151
92152
92152A
92153
92153A
92154
92161
92200
92200A
92210
92210A
480
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
RATCHET | 13078 | 13078-0012 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-0071 | 1 | ||
PAWL | 13165 | 13165-0018 | 2 | ||
LEVER-COMP,POSITION | 13236 | 13236-0141 | 1 | ||
LEVER-COMP,CHANGE PEDAL | 13236A | 13236-0148 | 1 | ||
LEVER-ASSY-CHANGE | 13242 | 13242-0052 | 1 | ||
PLATE,PAWL GUIDE | 13272 | 13272-0576 | 1 | ||
ROD-TIE,L=170 | 39111 | 39111-0054 | 1 | ||
WASHER,6X12.8X1.2 | 92022 | 92022-1827 | 1 | ||
PIN,PLUNGER | 92043 | 92043-1676 | 2 | ||
SPRING | 92145 | 92145-0629 | 1 | ||
SPRING | 92145A | 92145-0631 | 1 | ||
SPRING | 92145B | 92145-1490 | 2 | ||
BOLT,SOCKET,6X16 | 92150 | 92150-1673 | 1 | ||
BOLT,FLANGED,6X20 | 92151 | 92151-1226 | 1 | ||
COLLAR | 92152 | 92152-0720 | 1 | ||
COLLAR | 92152A | 92152-1414 | 1 | ||
BOLT,RETURN SPRING | 92153 | 92153-0421 | 1 | ||
BOLT,TORX,6X8.7 | 92153A | 92153-1669 | 2 | ||
BOLT,SOCKET,8X32 | 92154 | 92154-0112 | 1 | ||
DAMPER,CHANGE PEDAL | 92161 | 92161-1300 | 1 | ||
WASHER,8.0X22.0X1.5 | 92200 | 92200-0174 | 1 | ||
WASHER | 92200A | 92200-0265 | 1 | ||
NUT,6MM | 92210 | 92210-1100 | 1 | ||
NUT,LEFT HANDED,6MM | 92210A | 92210-1101 | 1 | ||
CIRCLIP-TYPE-C,14MM | 480 | 480J1400 | 1 |
