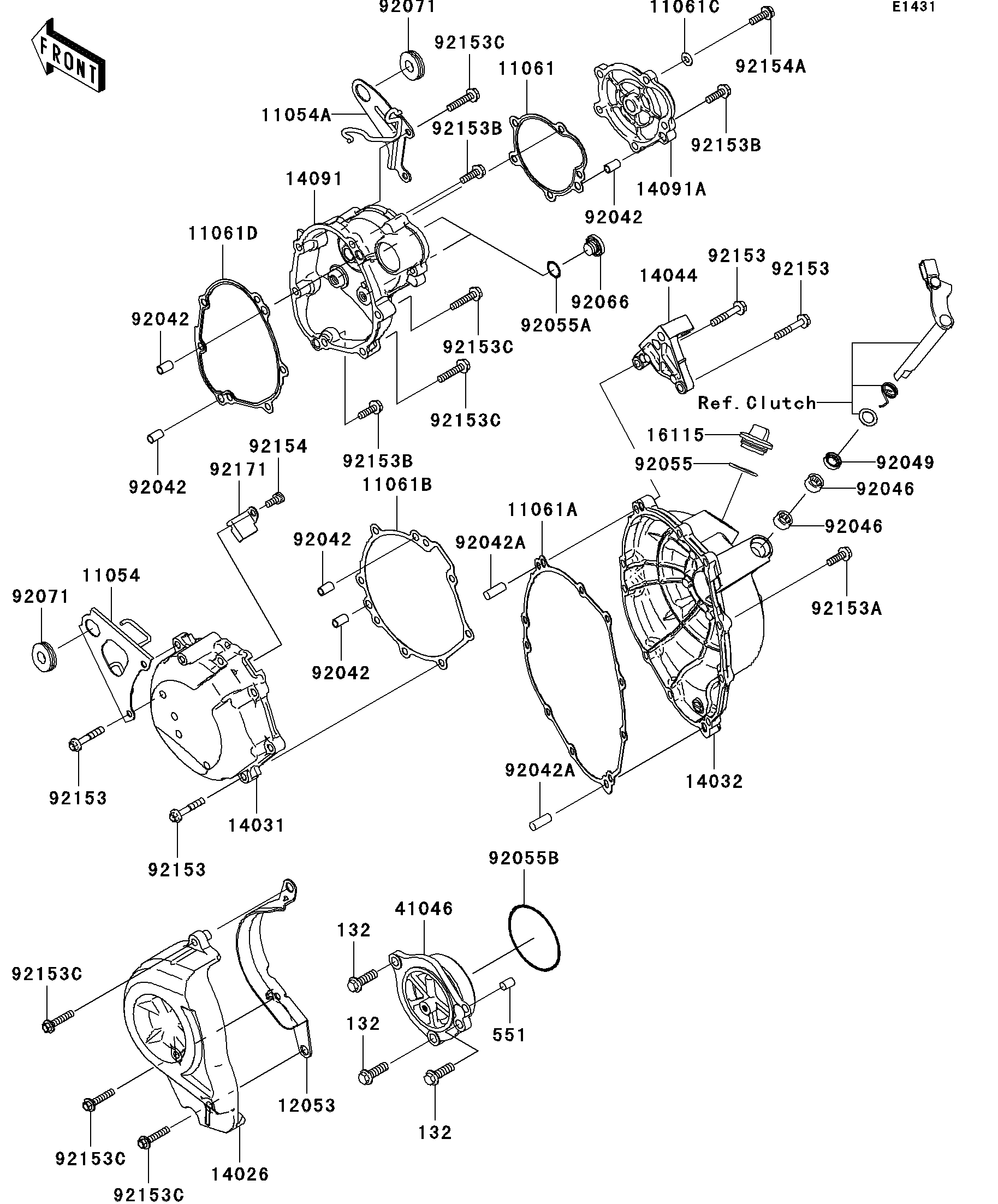

2008 Ninja® ZX™-10R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054A
11061
11061A
11061B
11061C
11061D
12053
14026
14031
14032
14044
14091
14091A
16115
41046
92042
92042
92042
92042
92042
92042A
92042A
92046
92046
92049
92055
92055A
92055B
92066
92071
92071
92153
92153
92153
92153
92153A
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92153C
92153C
92154
92154A
92171
132
132
132
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,GENERATOR COVER 11054 11054-1958 1
BRACKET,STARTER COVER 11054A 11054-1959 1
GASKET,IDLE GEAR COVER 11061 11061-0177 1
GASKET,CLUTCH COVER 11061A 11061-0178 1
GASKET,GENERATOR COVER 11061B 11061-0179 1
GASKET,6.2X13.5X1.0 11061C 11061-0262 1
GASKET,LARGE COVER 11061D 11061-0336 1
GUIDE-CHAIN 12053 12053-0089 1
COVER-CHAIN 14026 14026-0054 1
COVER-GENERATOR,F.S.BLACK 14031 14031-0045-11E 1
COVER-CLUTCH 14032 14032-0105 1
HOLDER-CABLE 14044 14044-0031 1
COVER,STARTER,LARGE 14091 14091-0860 1
COVER,STARTER,SMALL 14091A 14091-0905 1
CAP-OIL FILLER 16115 16115-1009 1
HOUSING-BEARING 41046 41046-0012 1
PIN,DOWEL,6.3X8X14 92042 92042-007 5
PIN,DOWEL,8X22 92042A 92042-044 2
BEARING-NEEDLE,HK1210FM 92046 92046-0034 2
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
RING-O,31.7X2.4 92055 92055-049 1
RING-O,ID=13.8 92055A 92055-1141 2
RING-O,65.2X2.4 92055B 92055-1408 1
PLUG,TIMING HOLE 92066 92066-0067 2
GROMMET 92071 92071-1043 2
BOLT,FLANGED,6X35 92153 92153-0690 10
BOLT,FLANGED,6X25 92153A 92153-0764 8
BOLT-FLANGED,6X20 92153B 92153-1010 6
BOLT-FLANGED,6X30 92153C 92153-1315 7
BOLT,SOCKET,6X12 92154 92154-0040 1
BOLT,FLANGED,6X20 92154A 92154-0107 1
CLAMP 92171 92171-1566 1
BOLT-FLANGED-SMALL,8X25 132 132BD0825 3
PIN-DOWEL,8X12 551 551A0812 1
