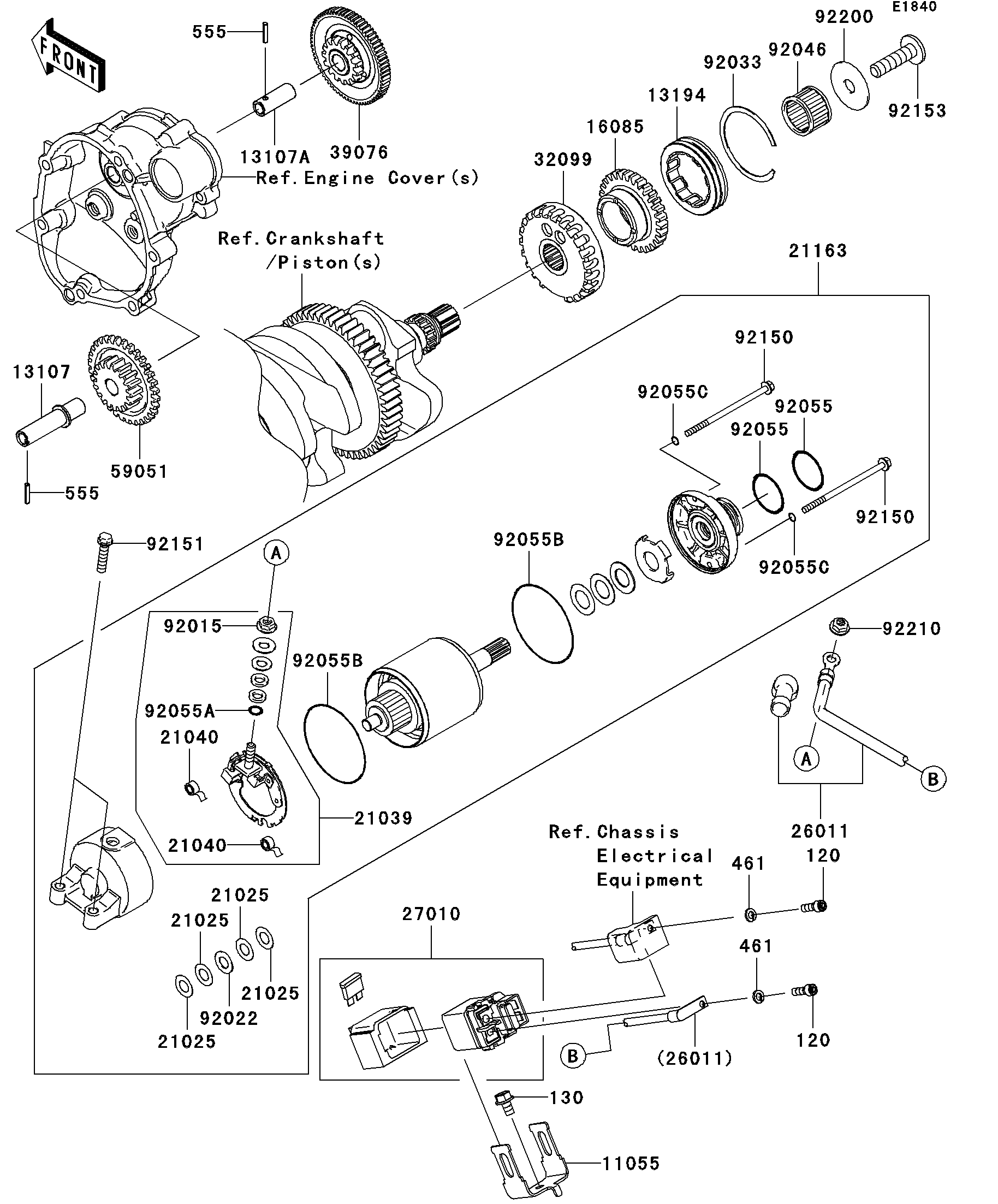

2008 Ninja® ZX™-10R - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
11055
13107
13107A
13194
16085
21025
21025
21025
21025
21039
21040
21040
21163
26011
27010
32099
39076
59051
92015
92022
92033
92046
92055
92055
92055A
92055B
92055B
92055C
92055C
92150
92150
92151
92153
92200
92210
120
120
130
461
461
555
555
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-0756 1
SHAFT,ONEWAY CLUTCH 13107 13107-0192 1
SHAFT,STARTER SIDE 13107A 13107-0193 1
CLUTCH-ONEWAY 13194 13194-3704 1
GEAR,29T 16085 16085-0102 1
WASHER,9.1X18X0.2 21025 21025-011 4
BRUSH 21039 21039-1066 1
SPRING-BRUSH 21040 21040-1057 2
STARTER-ELECTRIC 21163 21163-0028 1
WIRE-LEAD 26011 26011-0203 1
SWITCH 27010 27010-1450 1
CASE,STARTER CLUTCH 32099 32099-0019 1
LIMITER 39076 39076-0014 1
GEAR-SPUR,ONEWAY CLUTCH SIDE 59051 59051-0088 1
NUT,STARTER MOTOR 92015 92015-1476 1
WASHER,9.1X18X0.8 92022 92022-1132 1
RING-SNAP 92033 92033-3731 1
BEARING-NEEDLE,RS263020 92046 92046-0004 1
RING-O 92055 92055-1276 2
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O 92055B 92055-1550 2
RING-O 92055C 92055-1551 2
BOLT,FLANGED,4X80 92150 92150-1969 2
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
BOLT,TORX,10X38 92153 92153-1521 1
WASHER,10.5X37X1.6 92200 92200-0238 1
NUT,6MM 92210 92210-0188 1
BOLT-SOCKET,5X10 120 120CB0510 2
BOLT-FLANGED,6X10 130 130BA0610 1
WASHER-SPRING,5MM,BLACK 461 461DB0500 2
PIN-SPRING,3X16 555 555A0316 2
