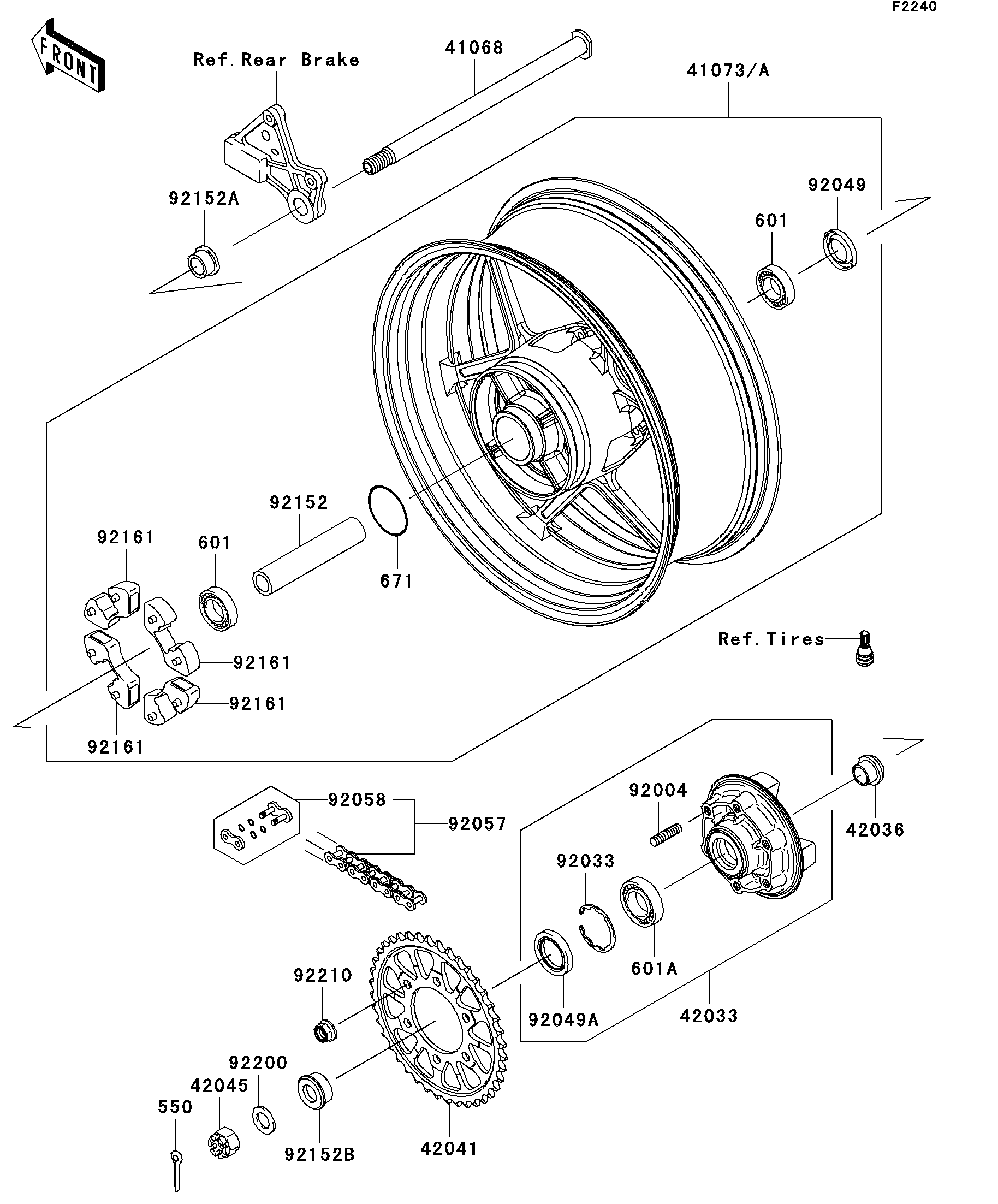

2008 Ninja® ZX™-10R - Rear Wheel/Chain
41068
41073
41073A
42033
42036
42041
42045
92004
92033
92049
92049A
92057
92058
92152
92152A
92152B
92161
92161
92161
92161
92200
92210
550
601
601
601A
671
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AXLE,RR | 41068 | 41068-0040 | 1 | ||
WHEEL-ASSY,RR,G.BLACK | 41073 | 41073-0081-18F | 1 | ||
WHEEL-ASSY,RR,BLACK/GREEN | 41073A | 41073-0081-19K | 1 | _________________________________________CN | |
COUPLING-ASSY,RR HUB | 42033 | 42033-0028 | 1 | ||
SLEEVE,RR HUB,L=23 | 42036 | 42036-1251 | 1 | ||
SPROCKET-HUB,41T | 42041 | 42041-0055 | 1 | ||
NUT,CASTLE,18MM | 42045 | 42045-018 | 1 | ||
STUD,10X19 | 92004 | 92004-0028 | 6 | ||
RING-SNAP,52MM | 92033 | 92033-1043 | 1 | ||
SEAL-OIL,BJN28475 | 92049 | 92049-1056 | 1 | ||
SEAL-OIL | 92049A | 92049-1287 | 1 | ||
CHAIN,DRIVE,RK525MFOZX110L | 92057 | 92057-0140 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-0015 | 1 | ||
COLLAR,RR HUB,L=144.5 | 92152 | 92152-0088 | 1 | ||
COLLAR,RR AXLE,RH,L=17 | 92152A | 92152-0105 | 1 | ||
COLLAR,RR AXLE,LH,L=18 | 92152B | 92152-0206 | 1 | ||
DAMPER,SHOCK,RR HUB | 92161 | 92161-0342 | 4 | ||
WASHER,19X32X2.6 | 92200 | 92200-1489 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 6 | ||
PIN-COTTER,4.0X35 | 550 | 550AA4035 | 1 | ||
BEARING-BALL,6204UUC3 | 601 | 601B6204UU | 2 | ||
BEARING-BALL | 601A | 601B6205UU | 1 | ||
O RING,60MM | 671 | 671B2560 | 1 |
