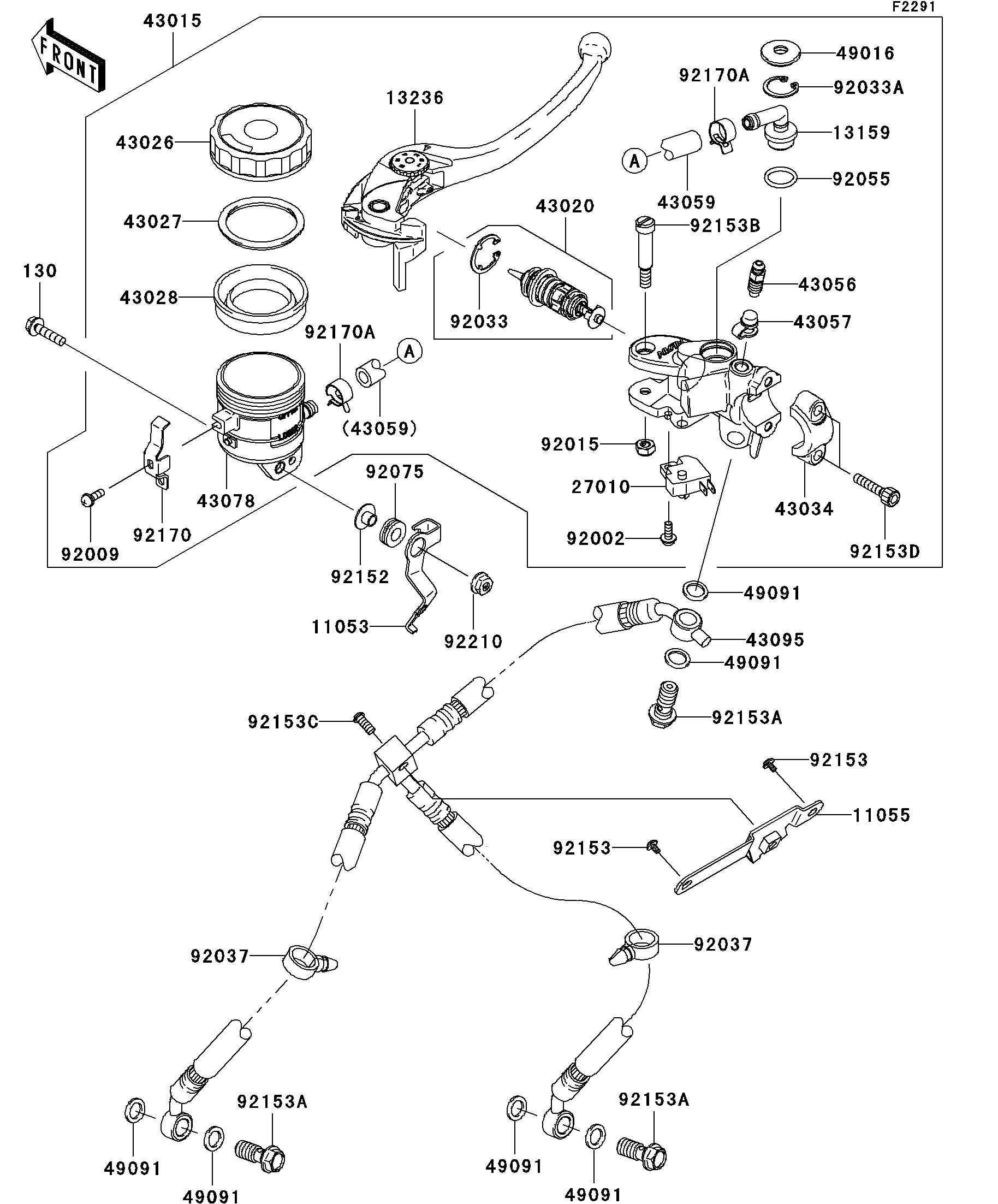

2008 Ninja® ZX™-10R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11053
11055
13159
13236
27010
43015
43020
43026
43027
43028
43034
43056
43057
43059
43078
43095
49016
49091
49091
49091
49091
49091
49091
92002
92009
92015
92033
92033A
92037
92037
92055
92075
92152
92153
92153
92153A
92153A
92153A
92153B
92153C
92153D
92170
92170A
92170A
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK,FR 11053 11053-1545 1
BRACKET,BRAKE HOSE 11055 11055-0319 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-0103 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0097 1
PISTON-COMP-BRAKE 43020 43020-0010 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
HOSE-BRAKE,FR MASTER CYLINDER 43059 43059-1696 1
RESERVOIR 43078 43078-1099 1
HOSE-BRAKE,FR 43095 43095-0348 1
COVER-SEAL 49016 49016-1147 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 6
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW 92009 92009-1570 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP,HOSE 92037 92037-1827 2
RING-O,MASTER CYLINDER 92055 92055-1251 1
DAMPER 92075 92075-161 1
COLLAR 92152 92152-0017 1
BOLT,SOCKET,6X10 92153 92153-0410 2
BOLT,OIL,L=23 92153A 92153-0627 3
BOLT,LEVER 92153B 92153-0868 1
BOLT,SOCKET,6X23 92153C 92153-1267 1
BOLT,SOCKET,6X22 92153D 92153-1518 2
CLAMP 92170 92170-1090 1
CLAMP,HOSE 92170A 92170-1091 2
NUT,FLANGED,5MM 92210 92210-0007 1
BOLT-FLANGED,5X20 130 130BB0520 1
