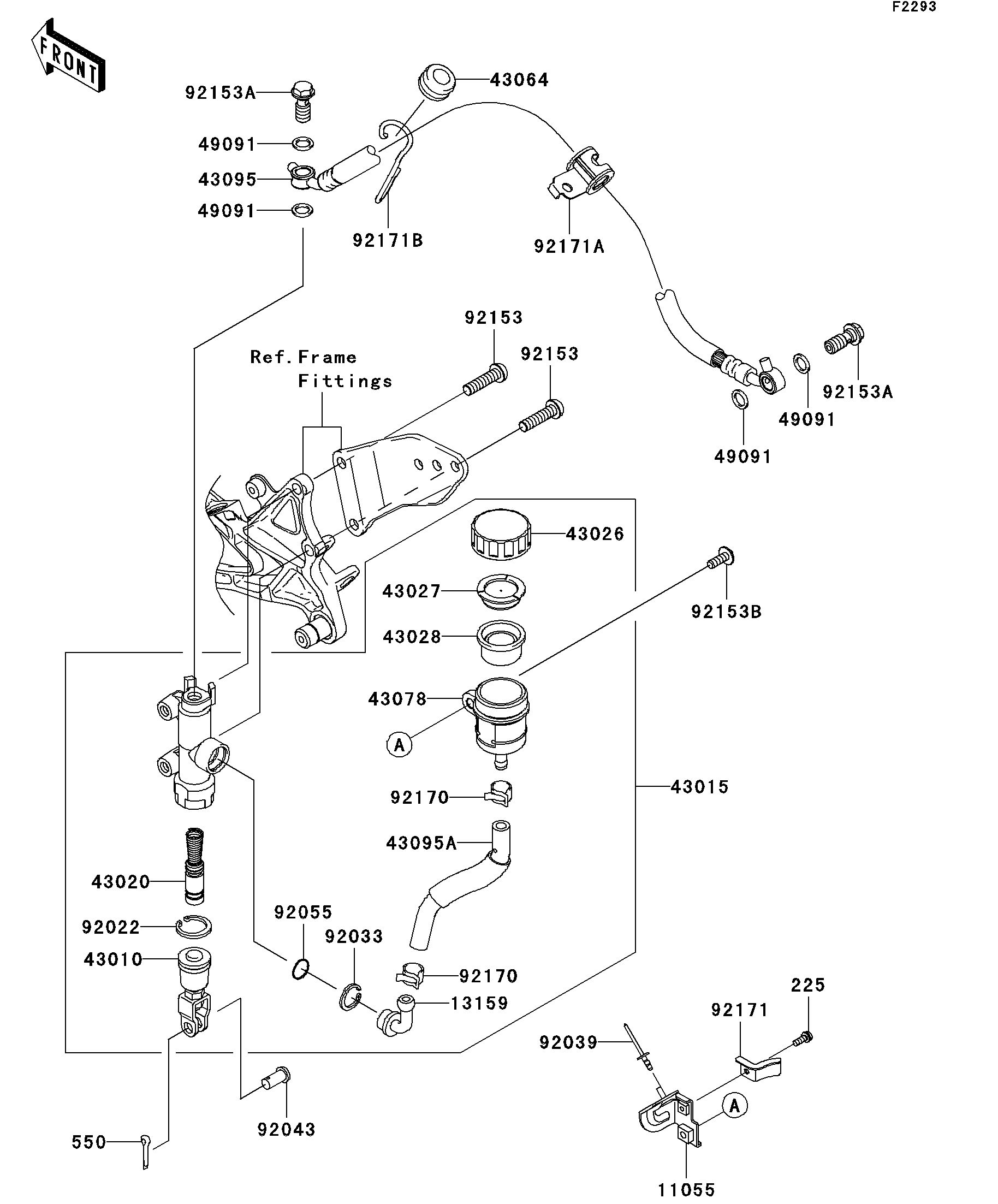

2008 Ninja® ZX™-10R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11055
13159
43010
43015
43020
43026
43027
43028
43064
43078
43095
43095A
49091
49091
49091
49091
92022
92033
92039
92043
92055
92153
92153
92153A
92153A
92153B
92170
92170
92171
92171A
92171B
225
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK 11055 11055-1029 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0103 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
GROMMET,HOSE CLAMP 43064 43064-006 1
RESERVOIR 43078 43078-0040 1
HOSE-BRAKE,RR 43095 43095-0350 1
HOSE-BRAKE,RR MASTER CYLINDER 43095A 43095-0380 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
RIVET 92039 92039-0067 2
PIN,8X17 92043 92043-0104 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,8X30 92153 92153-0393 2
BOLT,OIL,L=23 92153A 92153-0627 2
BOLT,SOCKET,6X16 92153B 92153-0817 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP,RESERVOIR TANK 92171 92171-0776 1
CLAMP,BRAKE HOSE 92171A 92171-1698 1
CLAMP,BRAKE&RESERVOIR HOSE 92171B 92171-1699 1
SCREW-PAN-WSP-CROS,4X12 225 225AB0412 1
PIN-COTTER,2.0X15 550 550AA2015 1
