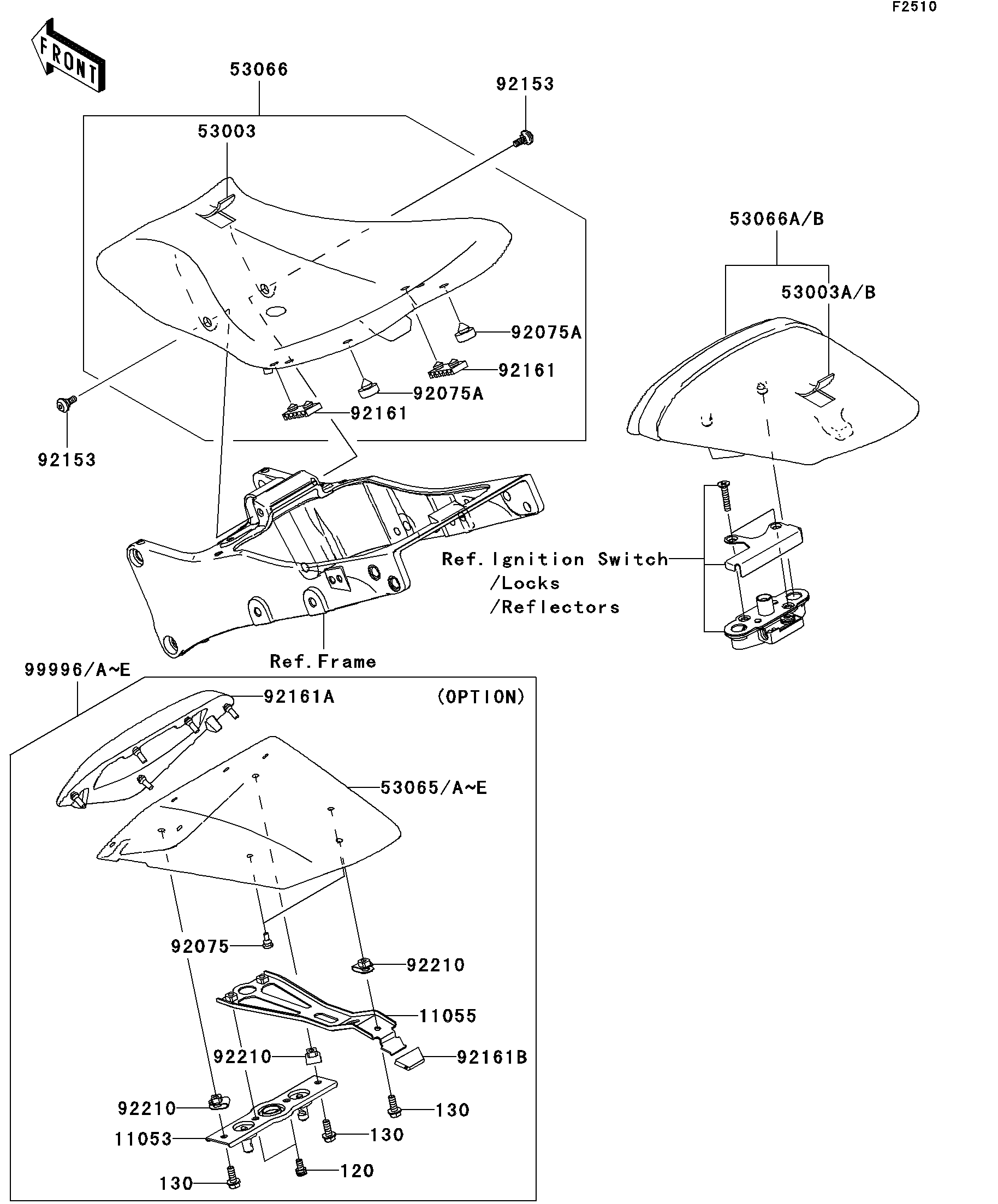

2008 Ninja® ZX™-10R - Seat

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11055
11055
53003
53003
53003A
53003A
53065A
53065A
53065B
53065B
53065D
53065D
53065E
53065E
53066
53066
53066A
53066A
92075
92075
92075A
92075A
92075A
92075A
92153
92153
92153
92153
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92210
92210
92210
92210
92210
92210
99996A
99996A
99996B
99996B
99996D
99996D
99996E
99996E
120
120
130
130
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-0386 1 (OPTION)
BRACKET,SEAT COVER 11055 11055-0871 1 (OPTION)
LEATHER,FRONT SEAT,BLACK 53003 53003-0120-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-0121-MA 1
COVER SEAT,ORANGE 53065A 53065-0016-17H 1 CN
COVER SEAT,BLACK 53065B 53065-0016-17K 1 (OPTION)
COVER SEAT,BLUE 53065D 53065-0016-723 1 CA,US
COVER SEAT,GREEN 53065E 53065-0016-777 1 _________________________________________CN
SEAT-ASSY,FR,BLACK 53066 53066-0188-MA 1
SEAT,RR,LEATHER BLK+BAND BLK 53066A 53066-0189-12Y 1
DAMPER 92075 92075-1808 2 (OPTION)
DAMPER 92075A 92075-1927 2
BOLT,SOCKET,6MM 92153 92153-0489 2
DAMPER,SEAT 92161 92161-0149 2
DAMPER,SEAT COVER 92161A 92161-0627 1 (OPTION)
DAMPER 92161B 92161-0629 1 (OPTION)
NUT,6MM 92210 92210-0277 3 (OPTION)
KIT,SINGLE SEAT COVER,ORANGE 99996A 99996-1358-17H 1 CN
KIT,SINGLE SEAT COVER,BLACK 99996B 99996-1358-17K 1 (OPTION)
KIT,SINGLE SEAT COVER,BLUE 99996D 99996-1358-723 1 CA,US
KIT,SINGLE SEAT COVER,GREEN 99996E 99996-1358-777 1 _________________________________________CN
BOLT-SOCKET,6X10 120 120CA0610 2 (OPTION)
BOLT-FLANGED,6X16 130 130BA0616 3 (OPTION)
