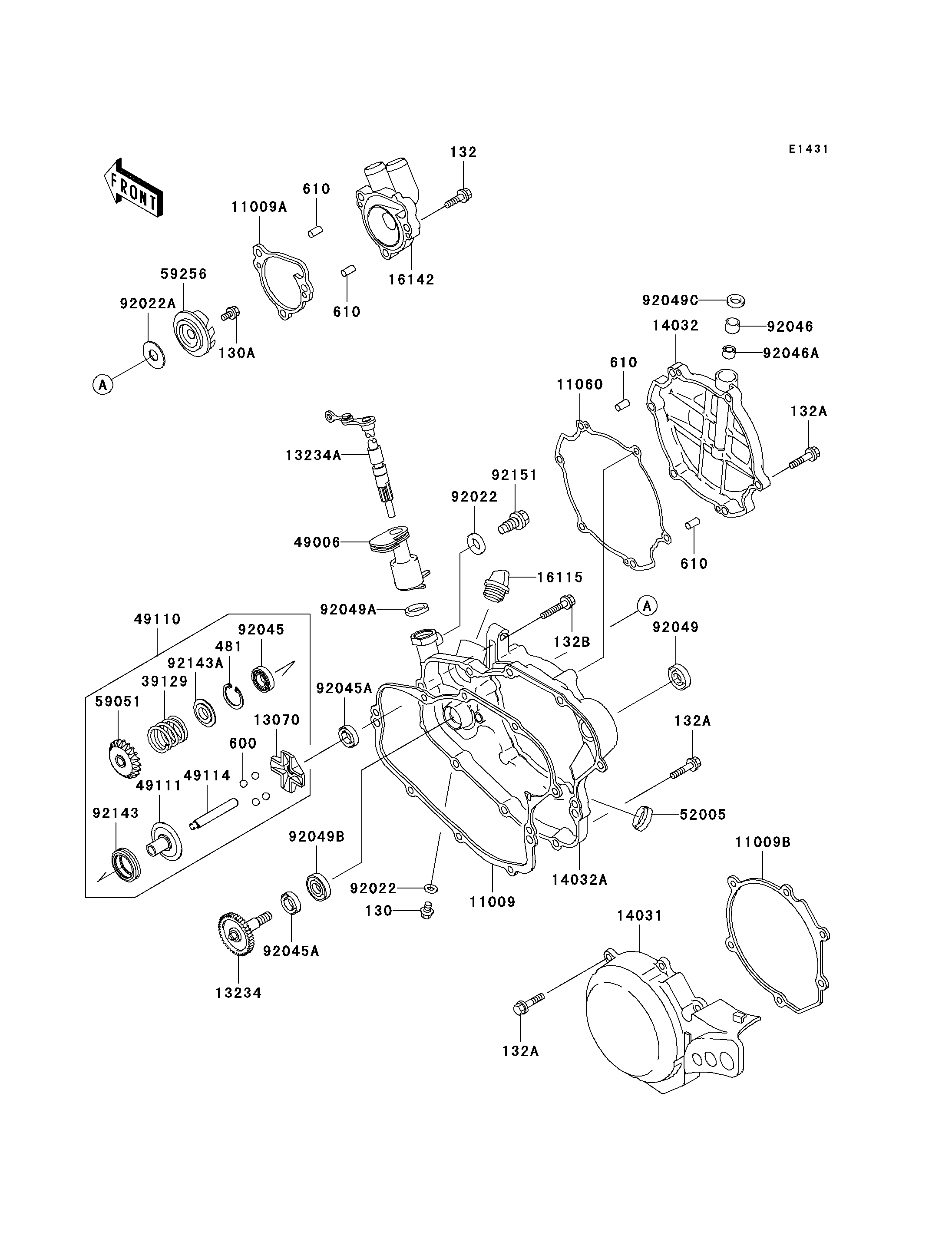

2001 KX85 - Engine Cover(s)(A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
132
132
132A
132A
132A
132A
132A
132A
132B
132B
481
481
600
600
11009
11009
11009A
11009A
11009B
11009B
11060
11060
13070
13070
13234
13234
13234A
13234A
14031
14031
14032
14032
14032A
14032A
16115
16115
16142
16142
39129
39129
49006
49006
49110
49110
49111
49111
49114
49114
52005
52005
59051
59051
59256
59256
92022
92022
92022
92022
92022A
92022A
92045
92045
92045A
92045A
92045A
92045A
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92143
92143
92143A
92143A
92151
92151
610
610
610
610
610
610
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130B0608 1
BOLT-FLANGED 130A 130P0510 1
BOLT-FLANGED-SMALL 132 132G0620 3
BOLT-FLANGED-SMALL 132A 132G0625 20
BOLT-FLANGED-SMALL 132B 132G0630 1
CIRCLIP 481 481J2400 1
BALL-STEEL,5/16" 600 600A1000 4
GASKET,CLUTCH COVER 11009 11009-1971 1
GASKET,PUMP COVER 11009A 11009-1972 1
GASKET,GENERATOR COVER 11009B 11009-1973 1
GASKET,CLUTCH COVER 11060 11060-1795 1
GUIDE,GOVERNOR 13070 13070-1309 1
SHAFT-COMP,WATER PUMP 13234 13234-1103 1
SHAFT-COMP,GOVERNOR 13234A 13234-1104 1
COVER-GENERATOR 14031 14031-1241 1
COVER-CLUTCH,OUTSIDE 14032 14032-1463 1
COVER-CLUTCH,INSIDE 14032A 14032-1514 1
CAP-OIL FILLER 16115 16115-018 1
COVER-PUMP,WATER 16142 16142-1144 1
SPRING-GOVERNOR 39129 39129-1022 1
BOOT,GOVERNOR 49006 49006-1313 1
GOVERNOR-ASSY 49110 49110-1101 1
HOLDER-GOVERNOR WEIGHT 49111 49111-1064 1
SHAFT-GOVERNOR 49114 49114-1101 1
GAUGE,OIL LEVEL 52005 52005-1055 1
GEAR-SPUR,GOVERNOR 59051 59051-1331 1
IMPELLER 59256 59256-1064 1
WASHER,6.1X12X1 92022 92022-077 2
WASHER,5.2X13X1 92022A 92022-1380 1
BEARING-BALL,6901 92045 92045-1246 1
BEARING-BALL,608MC3 92045A 92045-1305 2
BEARING-NEEDLE,HK1010 92046 92046-1160 1
BEARING-NEEDLE,6BTM109 92046A 92046-1217 1
SEAL-OIL,SB16244 92049 92049-002 1
SEAL-OIL 92049A 92049-1262 1
SEAL-OIL,MHSD8X18X10J-1 92049B 92049-1366 1
SEAL-OIL,BG1408F0 92049C 92049-1414 1
COLLAR 92143 92143-1932 1
COLLAR 92143A 92143-1933 1
BOLT 92151 92151-1180 1
ROLLER,4X8 610 610A0408 4
