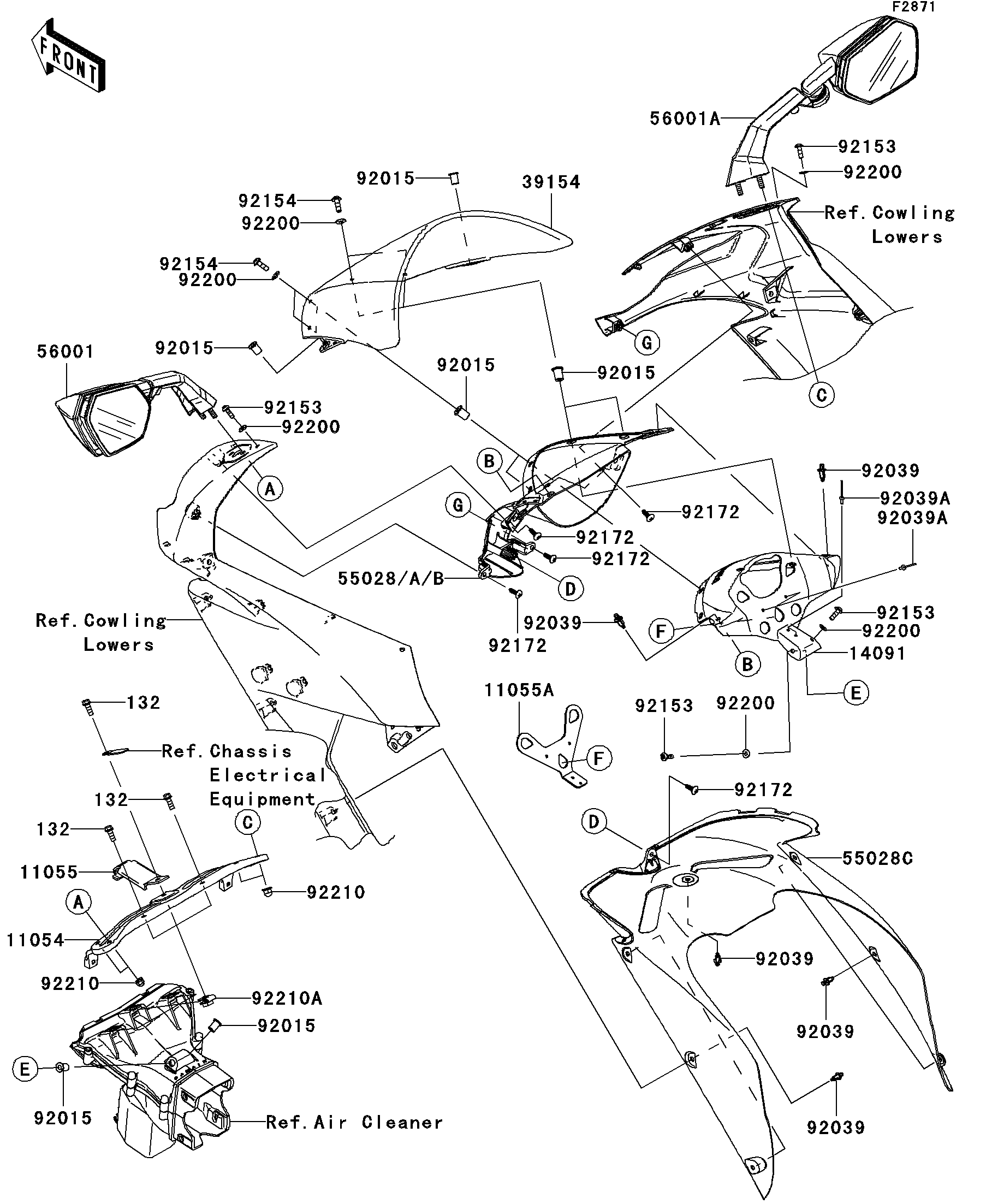

Parts Diagrams |
11054
11055
11055A
14091
39154
55028
55028A
55028C
56001
56001A
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039A
92039A
92153
92153
92153
92153
92154
92154
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
92200
92210
92210
92210A
132
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,MIRROR&METER STAY | 11054 | 11054-1905 | 1 | ||
| BRACKET | 11055 | 11055-1026 | 1 | ||
| BRACKET | 11055A | 11055-1027 | 1 | ||
| COVER,METER,S.BLACK | 14091 | 14091-0878-839 | 1 | ||
| WINDSHIELD | 39154 | 39154-0030 | 1 | ||
| COWLING,UPP,CNT,F.S.BLACK | 55028 | 55028-0228-11J | 1 | ||
| COWLING,UPP,CNT,M.D,BLACK | 55028A | 55028-0228-17K | 1 | ||
| COWLING,FR,S.BLACK | 55028C | 55028-0264-839 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-0102 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-0103 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 8 | ||
| RIVET | 92039 | 92039-0068 | 9 | ||
| RIVET | 92039A | 92039-1234 | 4 | ||
| BOLT,SOCKET,5X16 | 92153 | 92153-1244 | 4 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0026 | 4 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 5 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 8 | ||
| NUT,CAP,6MM | 92210 | 92210-0003 | 4 | ||
| NUT | 92210A | 92210-0130 | 3 | ||
| BOLT-FLANGED-SMALL,6X18 | 132 | 132BB0618 | 3 |
