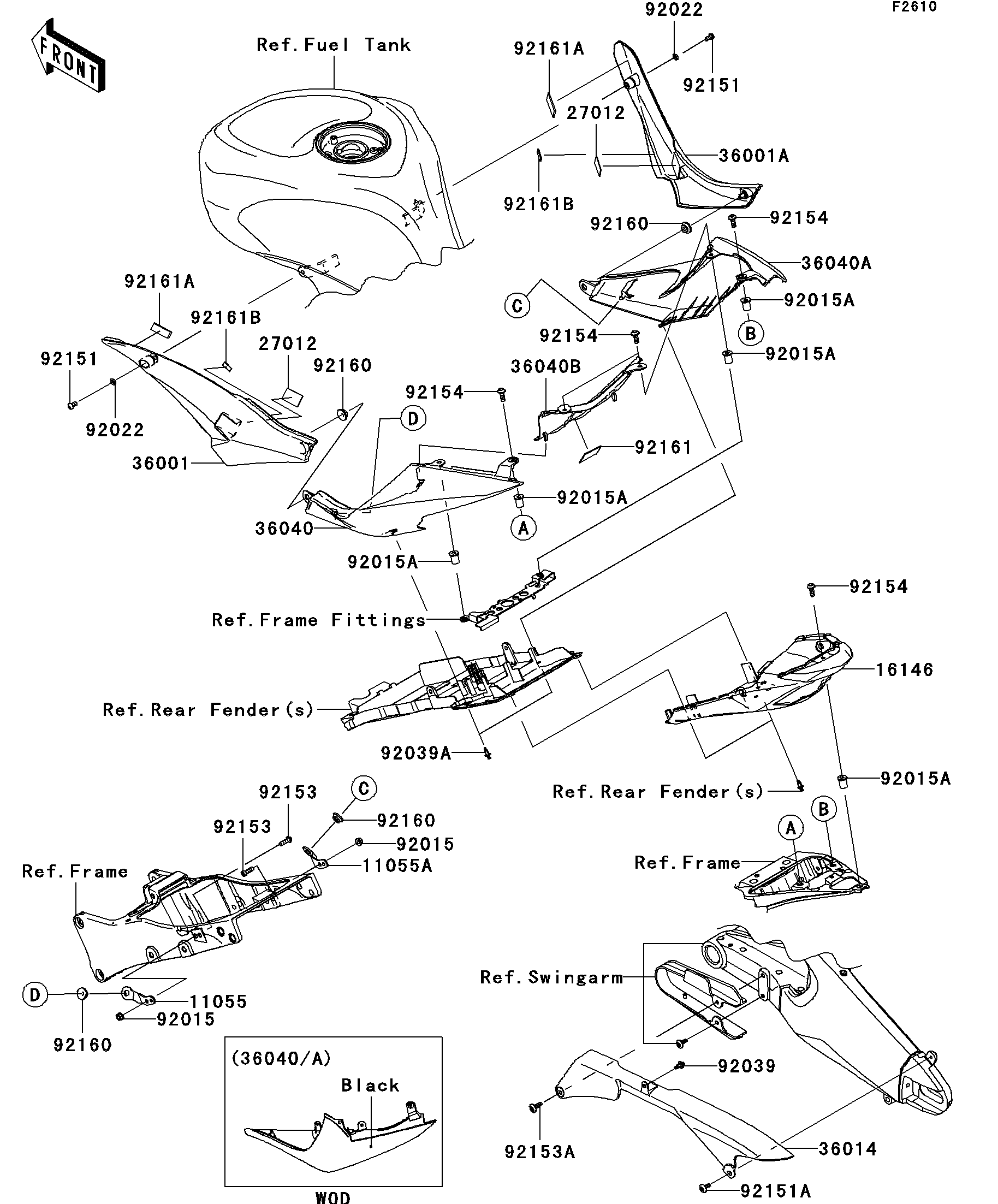

2010 Ninja® ZX™-10R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11055
11055A
16146
27012
27012
36001
36001A
36014
36040
36040A
36040B
92015
92015
92015A
92015A
92015A
92015A
92015A
92022
92022
92039
92039A
92151
92151
92151A
92153
92153
92153A
92154
92154
92154
92154
92160
92160
92160
92160
92161
92161A
92161A
92161B
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TAIL COVER,LH 11055 11055-0115 1
BRACKET,TAIL COVER,RH 11055A 11055-0116 1
COVER-ASSY,TAIL,F.BLACK 16146 16146-0074-6Z 1
HOOK 27012 27012-0115 2
COVER-SIDE,LH,M.S.BLACK 36001 36001-0126-660 1
COVER-SIDE,RH,M.S.BLACK 36001A 36001-0127-660 1
CASE-CHAIN 36014 36014-0038 1
COVER-TAIL,LH,M.S.BLACK 36040 36040-0073-660 1
COVER-TAIL,RH,M.S.BLACK 36040A 36040-0074-660 1
COVER-TAIL,CNT,M.S.BLACK 36040B 36040-0075-660 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,WELL,5MM 92015A 92015-1757 5
WASHER,6.2X11X1.5 92022 92022-183 2
RIVET 92039 92039-0051 1
RIVET 92039A 92039-0068 2
BOLT,SOCKET,6X12 92151 92151-1219 2
BOLT,SOCKET,6X14 92151A 92151-1654 1
BOLT,SOCKET,6X22 92153 92153-1356 2
BOLT,SOCKET,6X18 92153A 92153-1675 1
BOLT,SOCKET,5X16 92154 92154-0209 5
DAMPER 92160 92160-1613 4
DAMPER,FUEL TANK BRACKET 92161 92161-0208 1
DAMPER 92161A 92161-0301 2
DAMPER 92161B 92161-1177 2
