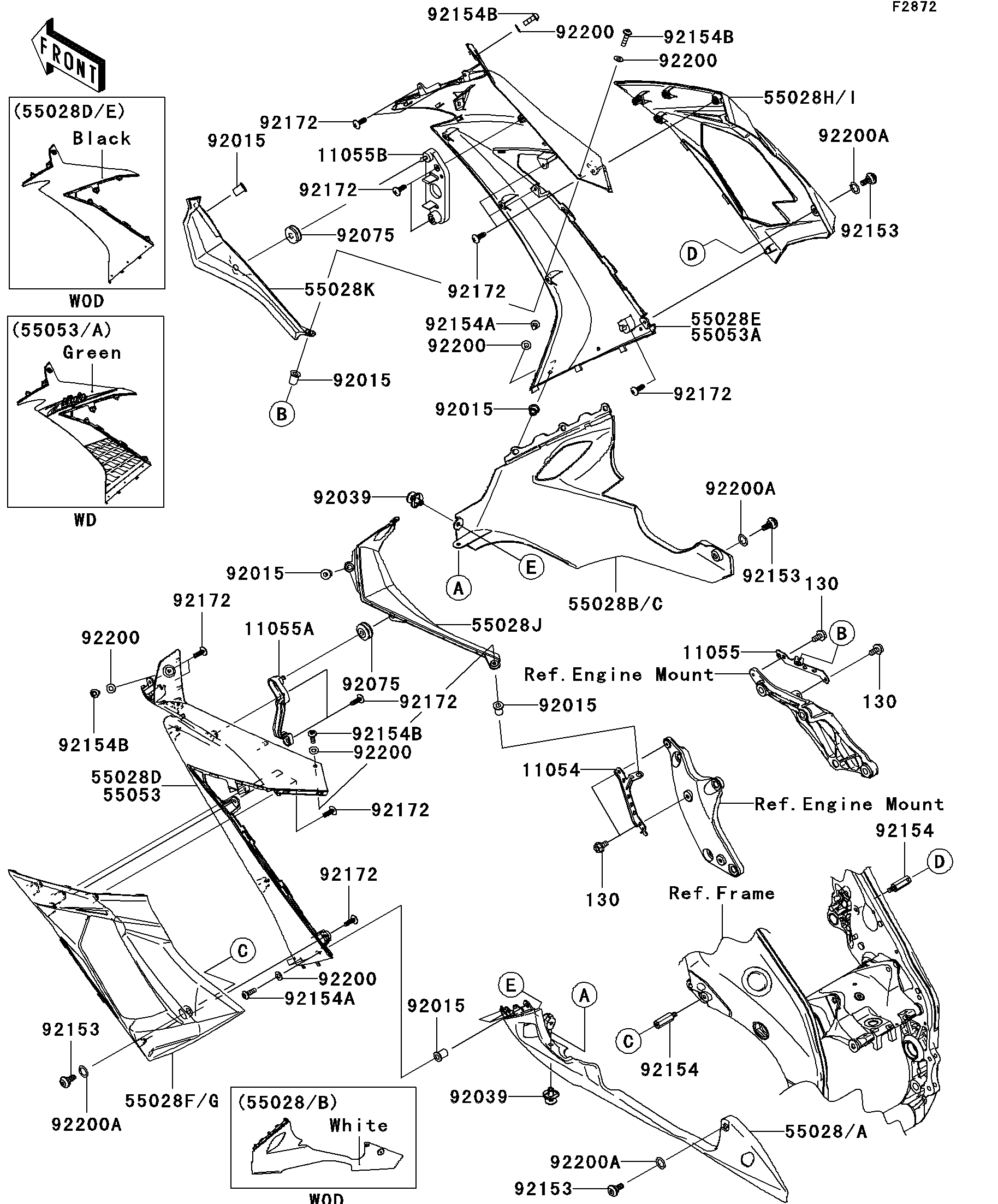

2010 Ninja® ZX™-10R - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11054
11055
11055A
11055B
55028A
55028C
55028D
55028E
55028G
55028I
55028J
55028K
92015
92015
92015
92015
92015
92015
92039
92039
92075
92075
92153
92153
92153
92153
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-1906 1
BRACKET 11055 11055-0285 1
BRACKET,INNER COWLING,LH 11055A 11055-0317 1
BRACKET,INNER COWLING,RH 11055B 11055-0318 1
COWLING,LWR,LH,M.S.BLACK 55028A 55028-0171-660 1
COWLING,LWR,RH,M.S.BLACK 55028C 55028-0173-660 1
COWLING,SIDE,LH,M.S.BLACK 55028D 55028-0280-660 1
COWLING,SIDE,RH,M.S.BLACK 55028E 55028-0281-660 1
COWLING,CNT,LH,M.S.BLACK 55028G 55028-0282-660 1
COWLING,CNT,RH,M.S.BLACK 55028I 55028-0283-660 1
COWLING,INNER,LH,F.BLACK 55028J 55028-0291-6Z 1
COWLING,INNER,RH,F.BLACK 55028K 55028-0292-6Z 1
NUT,WELL,5MM 92015 92015-1757 10
RIVET,HOLE 8MM 92039 92039-0014 2
DAMPER 92075 92075-1067 2
BOLT,SOCKET,6MM 92153 92153-0489 4
BOLT,8MM 92154 92154-0091 2
BOLT,SOCKET,5X16 92154A 92154-0209 6
BOLT,SOCKET,5X20 92154B 92154-0210 4
SCREW,TAPPING,5X16 92172 92172-0175 16
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 10
WASHER,10.4X15.9X0.5 92200A 92200-0157 4
BOLT-FLANGED,6X12 130 130BB0612 4
