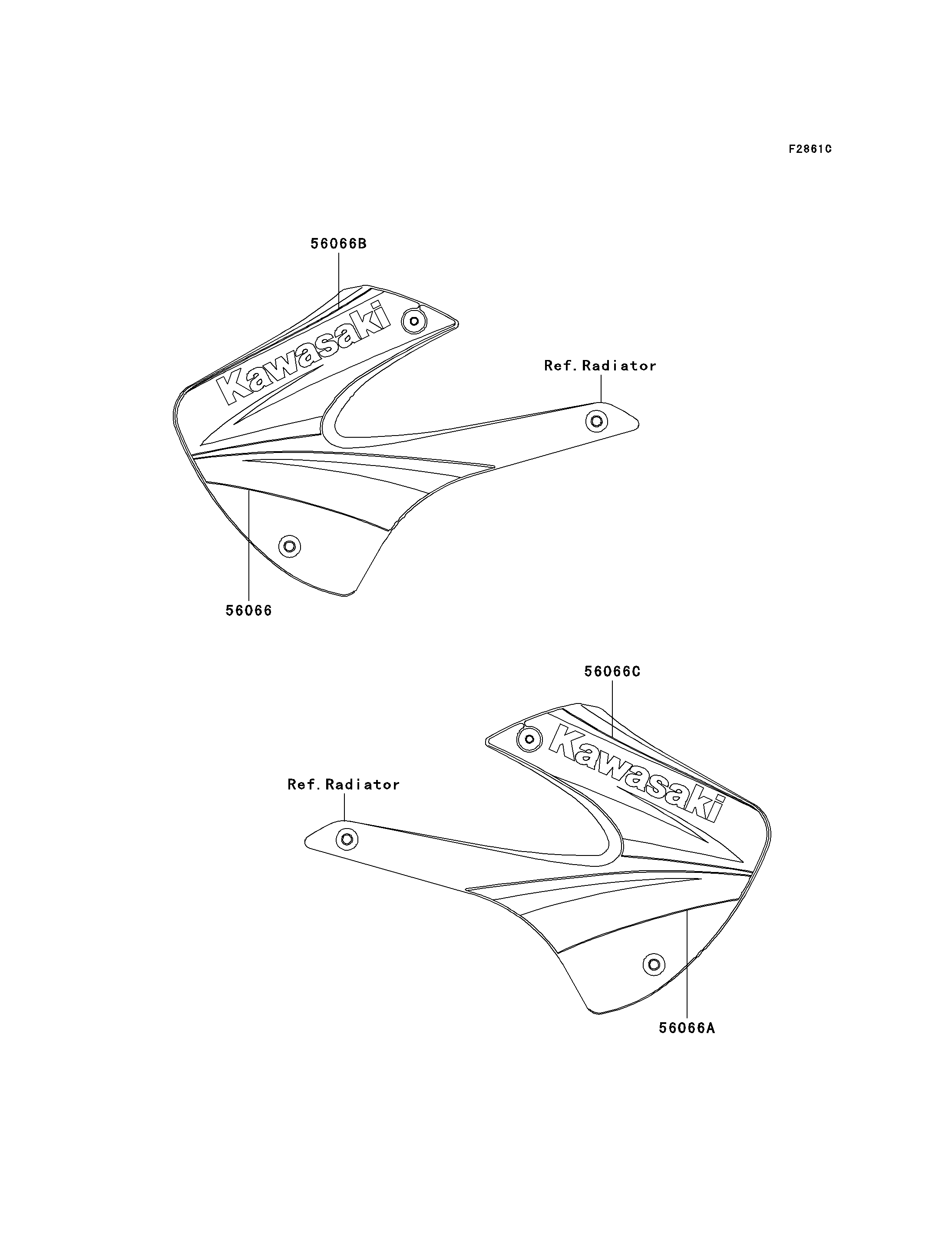

56066
56066A
56066B
56066C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,SHROUD,LWR,LH 56066 56066-0333 1
PATTERN,SHROUD,LWR,RH 56066A 56066-0335 1
PATTERN,SHROUD,UPP,LH 56066B 56066-0336 1
PATTERN,SHROUD,UPP,RH 56066C 56066-0337 1
